FOAM MARKER STANDARD VERSION
SLOTS FOR
TANK STRAPS

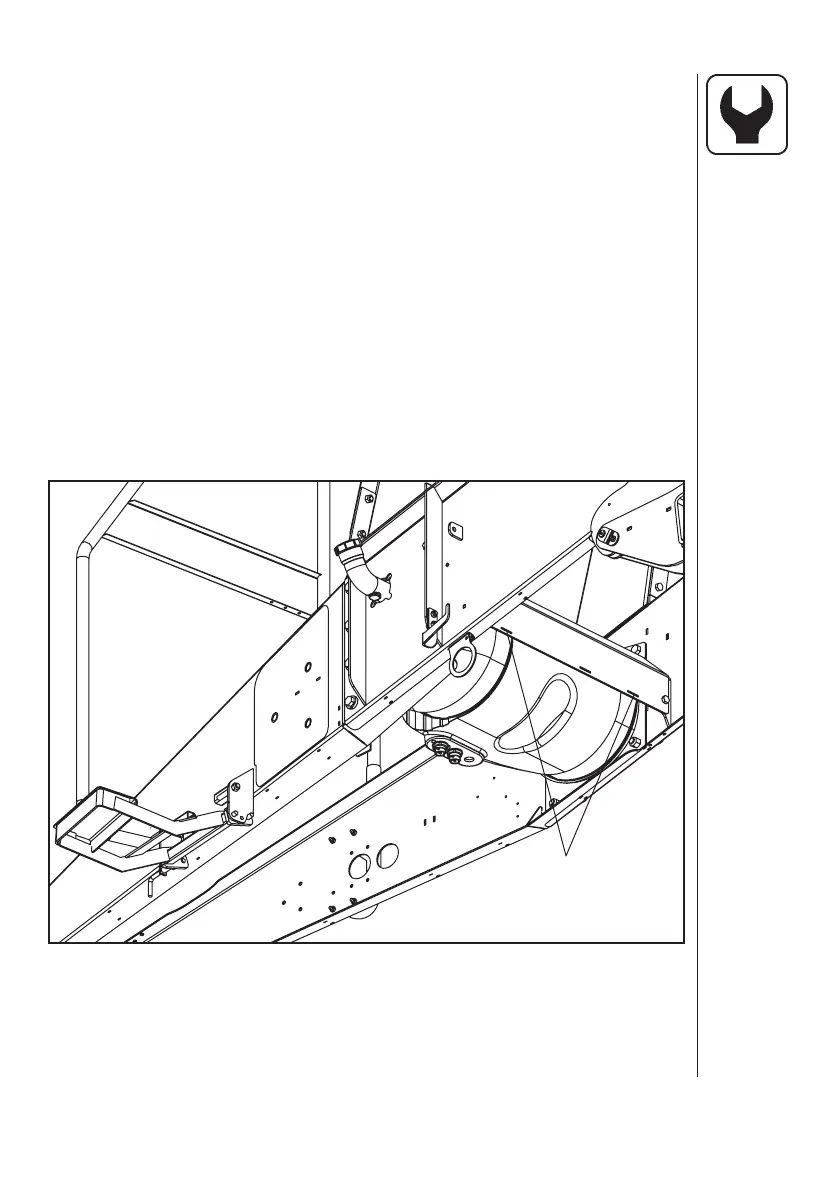

Fig. 16
5. Lift the Foam Marker Tank into position with the Filler Neck sticking out
the left side of the frame as shown in (Fig. 16). Attach the free end of
each tank strap to the frame using the "T-Bolts" and locknuts supplied
in the kit (Fig. 15). Insert rubber straps between the tank and metal
tank straps before tightening.
Note: The metal tank straps have "Break-Off" sections to allow for differ-
ent lengths. Break off any sections not needed by bending back
and forth. Grind the sharp edges smooth and apply paint to the
bare metal before securing with "T-Bolts".
6. Install the 1/2" hose barb into the bottom of the Filler Neck using a
thread sealant to prevent leakage (Fig. 15).
7. Install the clear sight gauge hose as shown in (Fig. 15) using the hose
clamps supplied in the kit.
