FOAM MARKER STANDARD VERSION
8.0 MOUNTING THE COMPRESSOR

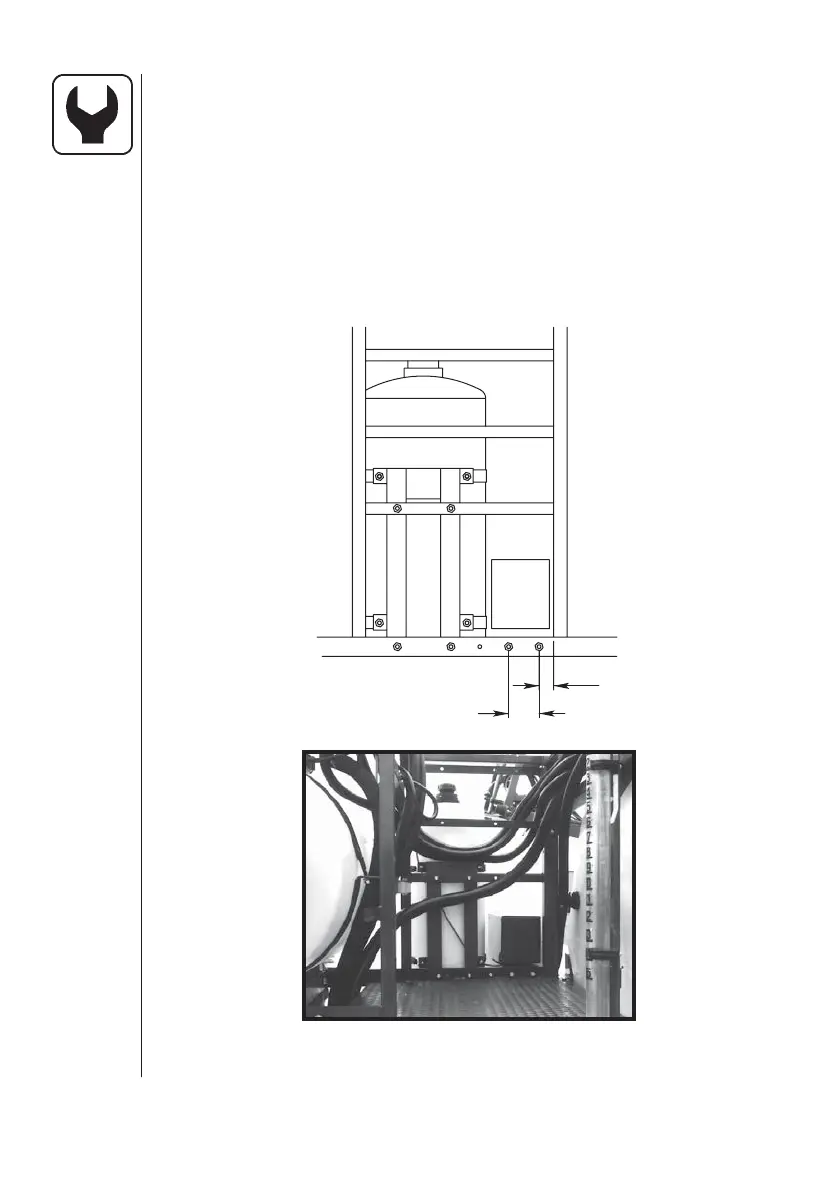

Fig. 17
1. Locate and drill (2) 7/16” holes as shown in (Fig. 17).
2. With supplied hardware install the compressor mounting bracket using
the holes previously drilled in step 1.
3. Place the Compressor Box on the mounting bracket with hose fi ttings
facing away from the sprayer platform.
8.1 HC 650M, 950, 950M, and Twin 650, 950
1-1/2” (38 mm)
3-1/8” (79 mm)
