5 - Operation
37

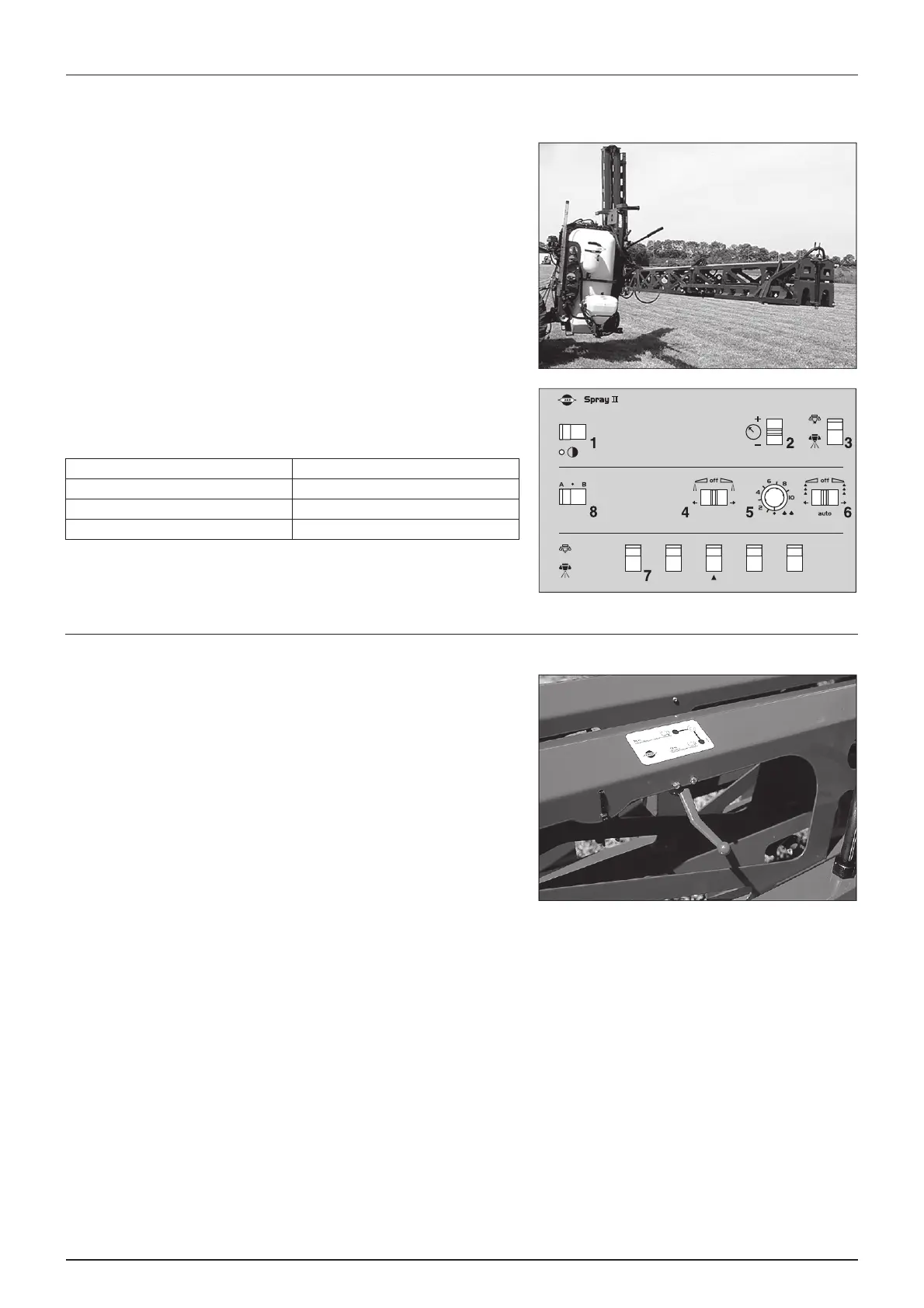

Single-sided folding
VHZ only:
1. Raise boom half-way to the top (minimum).
2. Unfold either right or left inner section.
3. Unfold either right or left outer section.
4. Lower boom to desired working height.
μ
ATTENTION! Do not unlock trapeze!
VHH only:
Button (4) is used to select whether the whole boom or left/right wing
should be unfolded. This should be done before proceeding with
“Manoeuvring of the boom - VHY” on page 36.
÷
NOTE! For use of the other buttons, please refer to “Operating the
control unit while spraying (EVC operating unit only)” on page 44.
Alternative boom widths - ‘16-12’ kit (optional equipment)
To disable folding of outer sections this kit is fitted to the outer cylinders
of the boom wings.
Picture shows ‘16-12’ kit mounted to boom wing with tap for ON/OFF
position.
Button position (4) Behavior
Left Left wing will unfold.
Middle Left and right wing will unfold.
Right Right wing will unfold.
