5 - Operation
40
External Filling Device (optional)
The External Filling Device is operated as follows:
1. Remove cover and connect suction hose to Suction Manifold.

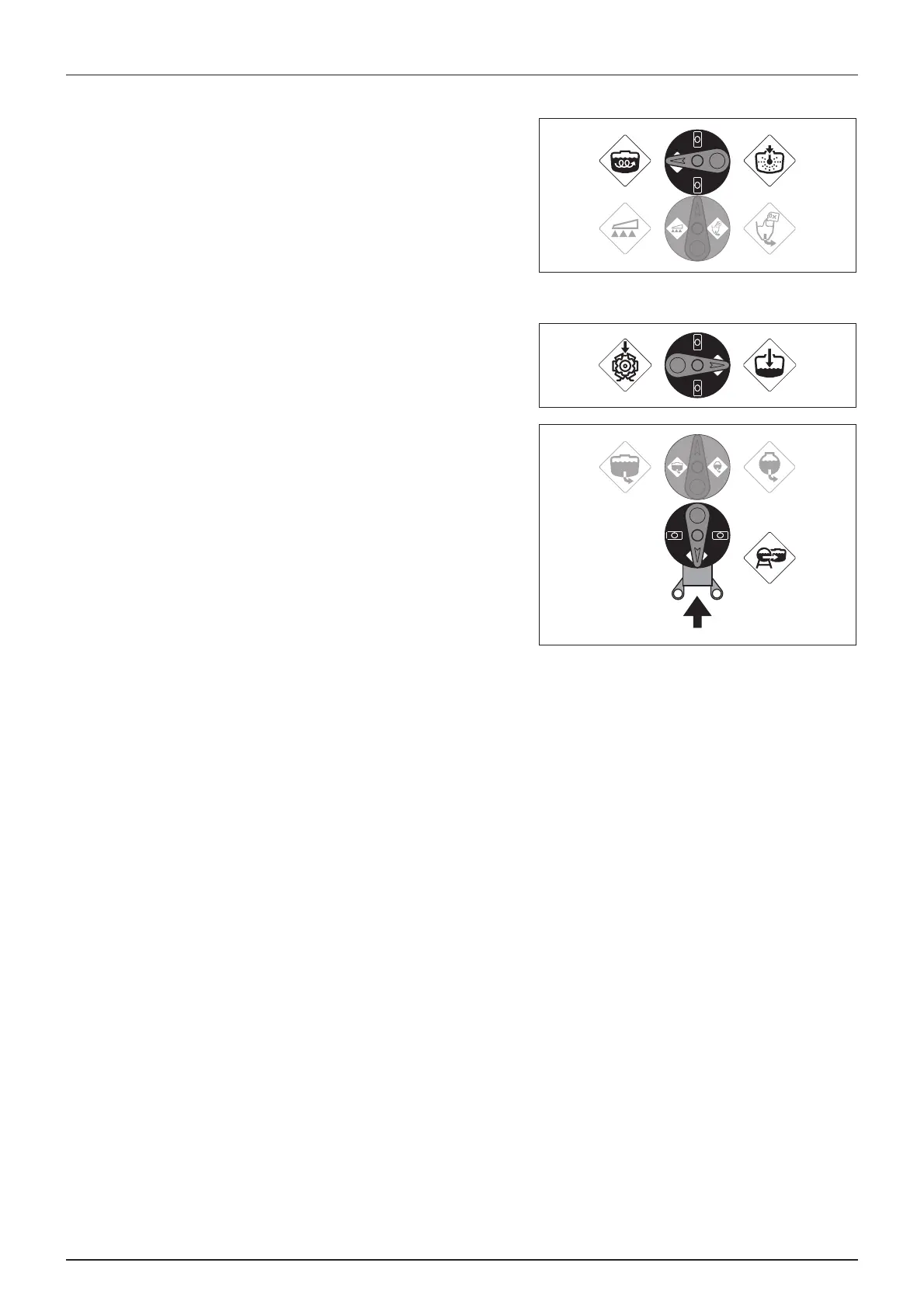

2. Turn agitation valve to “Agitation”, pressure valve to ”Spraying”, and,
if the blue return valve is mounted, turn it to “Main tank”.
3. Engage diaphragm pump and set P.T.O. revolutions at 540 r/min.
4. Turn handle on External Filling Device valve towards Filling Device.
5. The tank is now filled with water. Keep an eye on the liquid level
indicator.
6. Turn handle on Suction Manifold away from Filling Device to
discontinue filling process. Then disengage pump.
7. Disconnect suction tube and replace cover.
€
DANGER! Avoid contamination or personal injury. Do not open
suction valve towards Suction Filling Device unless pump is
running and filling hose is connected. If this valve is opened
without pump running, liquid will stream out of the coupler.
±
WARNING! Do not leave the sprayer whilst filling the tank and
keep an eye on the level indicator in order NOT to overfill the
tank.
μ
ATTENTION! Observe local legislation regarding use of filling
device. In some areas it is prohibited to fill from open water
reservoirs (lakes, rivers etc.). It is strongly recommended only to fill
from closed reservoirs (mobile water tanks etc.) to avoid
contamination.
