GB 08 00 MA
Operation - liquid system
NOTE! Turn handle towards operating unit before
turning away from Fast Filler in order to avoid peak
pressure blowing the safety valve!
7. Disconnect suction tube (B) and replace cover.
WARNING! Do not leave the sprayer whilst filling
the tank and keep an eye on the level indicator in
order NOT to overfill the tank.
NOTE! Observe local legislation regarding use of filling
device. In some areas it is prohibited to fill from open
water reservoirs (lakes, rivers etc.). It is recommended
only to fill from closed reservoirs (mobile water tanks
etc.) to avoid contamination
FF
FF
F
illing ofilling of
illing ofilling of
illing of
rinsing tank (optional equipment) rinsing tank (optional equipment)
rinsing tank (optional equipment) rinsing tank (optional equipment)
rinsing tank (optional equipment)
One or two rinsing tanks (depending on main tank size)
can be mounted underneath the main tank.
Remove tank lid, fill with clean water and reposition tank
lid.
Capacity: 80 litres per tank.

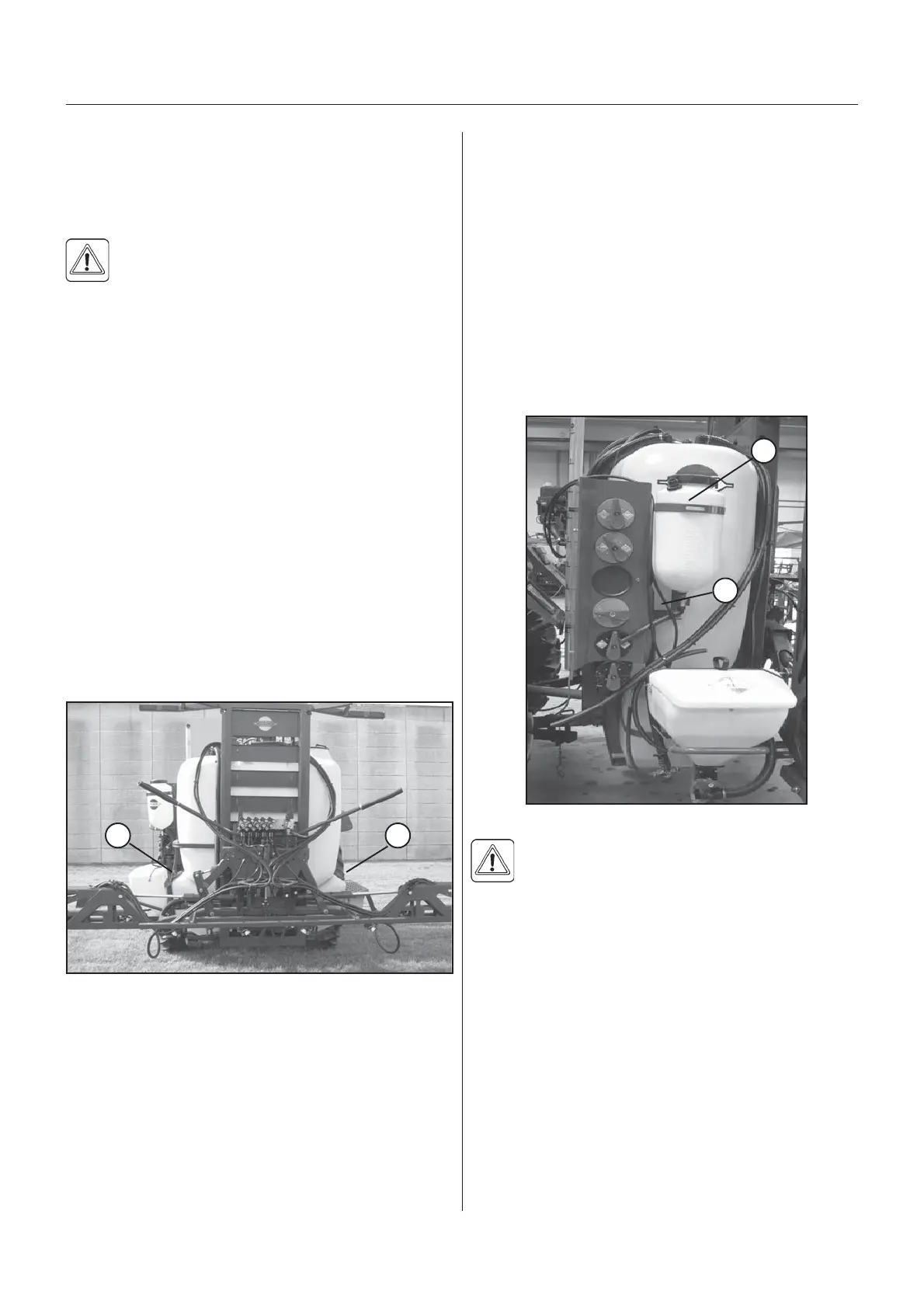

Picture below shows MASTER equipped with two rinsing
tanks (D).
Only fill rinsing tank with clean water!
To avoid algae developing in the rinsing tank always
drain the rinsing tank if the sprayer is not in use for a
longer period.
T102-0015
D D
FF
FF
F
illing ofilling of
illing ofilling of
illing of
c c
c c
c
lean wlean w
lean wlean w
lean w
aa
aa
a
ter tank (optionalter tank (optional
ter tank (optionalter tank (optional
ter tank (optional
equipment)equipment)
equipment)equipment)
equipment)
A clean water tank (E) can be fitted next to the MANI-
FOLD system.
Remove tank lid, fill with clean water and reposition tank
lid. Turn the ball valve (F) to open tap.
Capacity: 15 litres.
The water from this tank is for hand washing, cleaning of
clogged nozzles etc.
Only fill the clean water tank with clean water form the
well.
WARNING! although the clean water tank is only
filled with clean water, this water must never be
used for drinking.
E
T102-0016
F
