Operation - liquid system
Filling of Powder chemicals
1. Fill the main tank at least
1
/
2
with water (unless some-
thing else is stated on the chemical container label).
See section “Filling of water”.
2. Turn the handle at the Suction Manifold towards “Main
tank” and blue valve towards “Agitation”. Turn the
green handle at the Pressure Manifold towards
“HARDI FILLER”. Close remaining valves.
3. Engage the pump and increase P.T.O. speed to
540 r/min.
4. Open the bottom valve A at the FILLER. Open
FILLER lid.
5. Engage the hopper rinsing device by opening valve C.
6. Measure the correct quantity of chemical and sprinkle
it into the hopper as fast as the rinsing device can
flush it down.

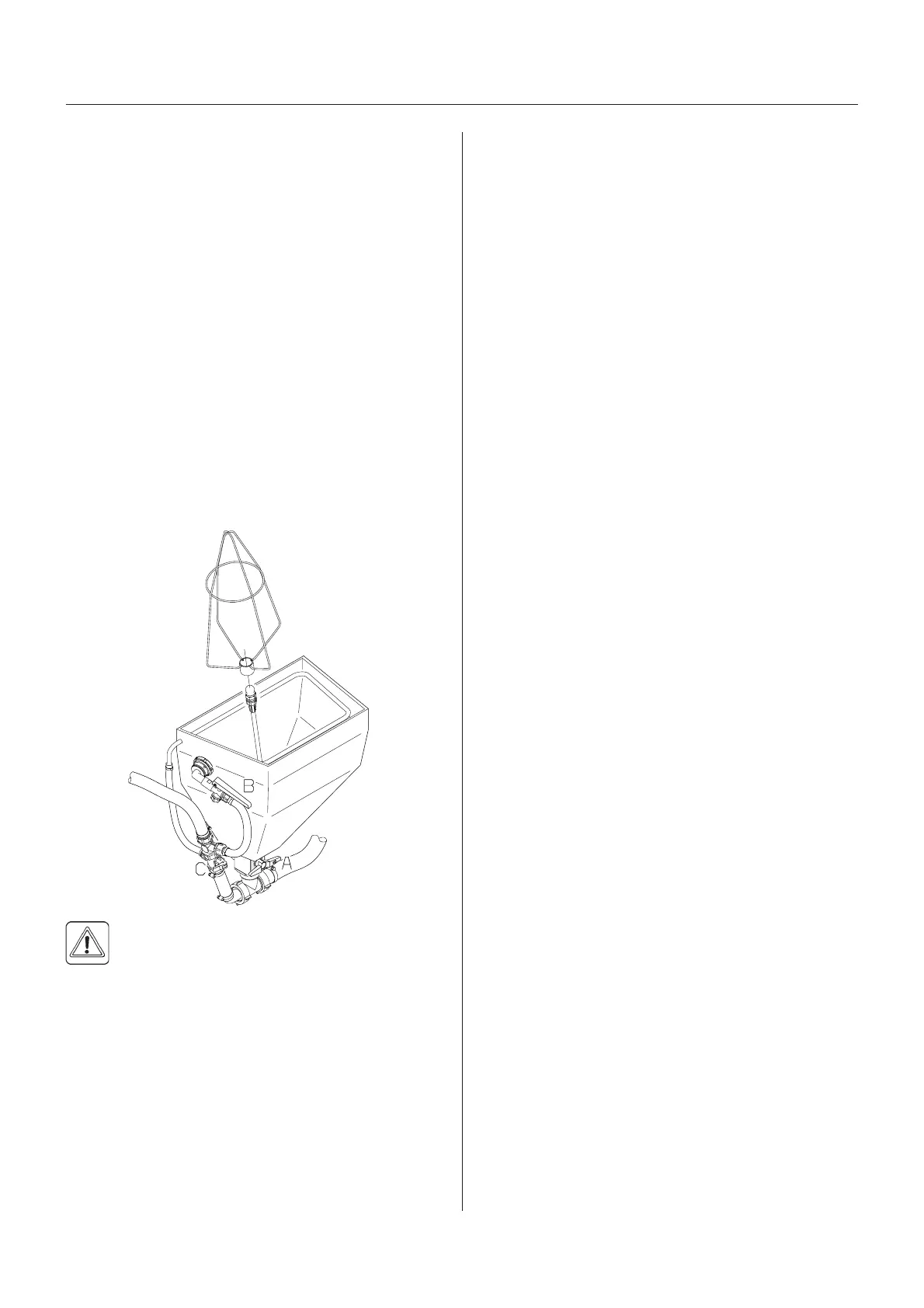

7. If the chemical container is empty it can be rinsed by
the container rinsing device (if fitted). Fit the bag
bracket and place the powder bag over the multi-hole
nozzle and press the lever B.
WARNING! Do not press lever B unless the
multi-hole nozzle is covered by a container to
avoid spray liquid hitting the operator.
IMPORTANT! Rinsing device uses spray liquid to rinse
containers for concentrated chemicals. Always rinse the
chemical containers with clean water several times until
they are clean before disposal.
9. Close valve C again when the hopper is rinsed.
IMPORTANT! The hopper rinsing device is using spray
liquid to rinse the hopper for concentrated chemical. The
FILLER must always be cleaned together with the rest of
the sprayer when the spray job is done.
T042-0002
10. Close valve A and the FILLER lid again.
11. When the spray liquid is well mixed, turn handle on
the Pressure Manifold towards “Spraying” position.
Keep P.T.O. engaged so the spray liquid is continu-
ously agitated until it has been sprayed on the crop.
