2 - Safety notes
11

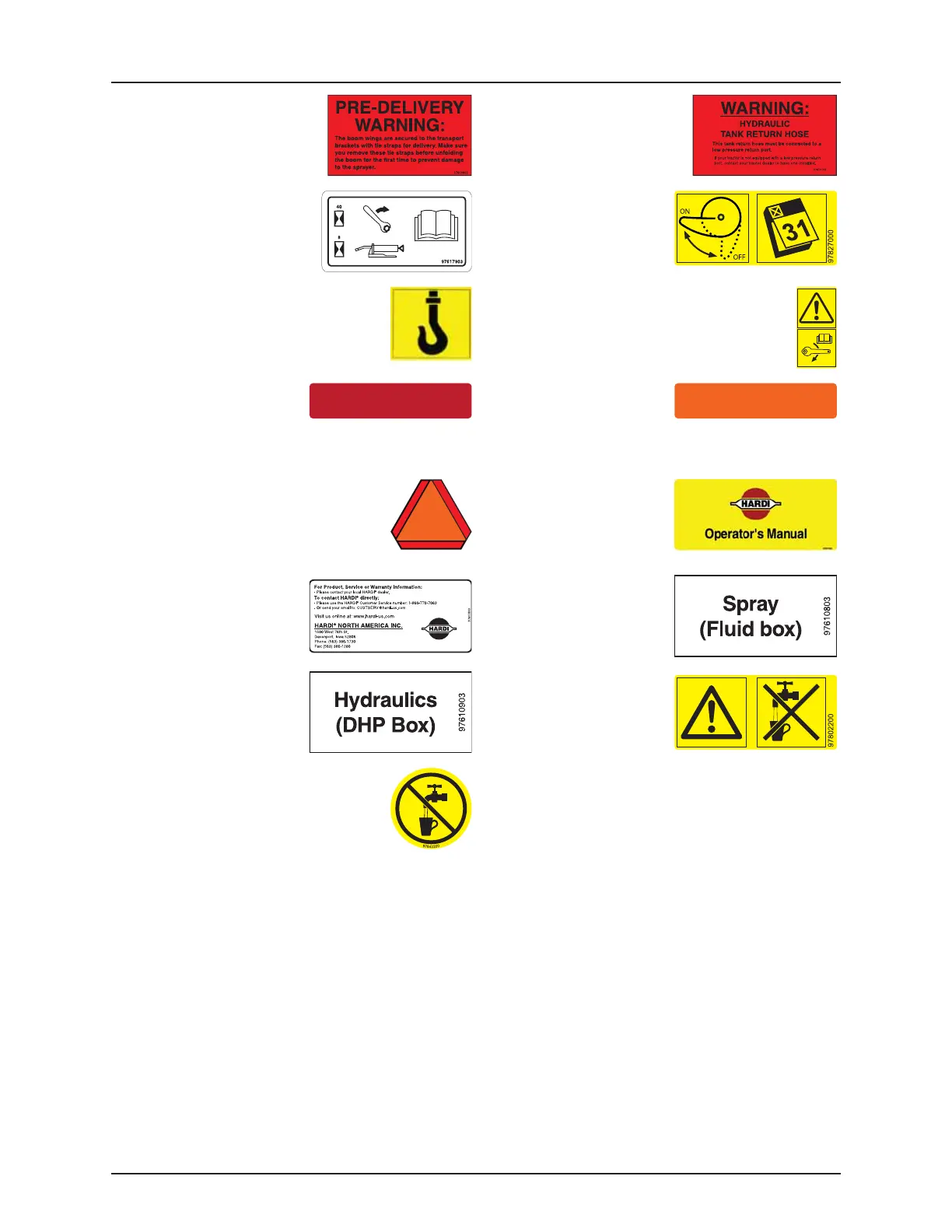

97606603 - Pre-Delivery
Remove tie straps before
unfolding boom first time.
97610103 - Tank return hose
Tank return hose must be
connected to a low pressure
port.
97617903 - Breakaway
See Boom Operator’s manual
for maintenance.
97827000 - EasyClean filter
Open and clean filter monthly.
978439 - Lifting point 978440 - Bolt torque
Tighten to torque settings according to
operator’s manual.
10533803 - Red Reflector 10533903 - Amber Reflector
10601403 - SMV Sign
Slow Moving Vehicle.
97607503 - Operator’s Manual
97607803 - Contact Info 97610803 - Fluid Box
97610903 - Hydraulic Box 97802200
97842200
Nm
