3 - Description
General Info
View

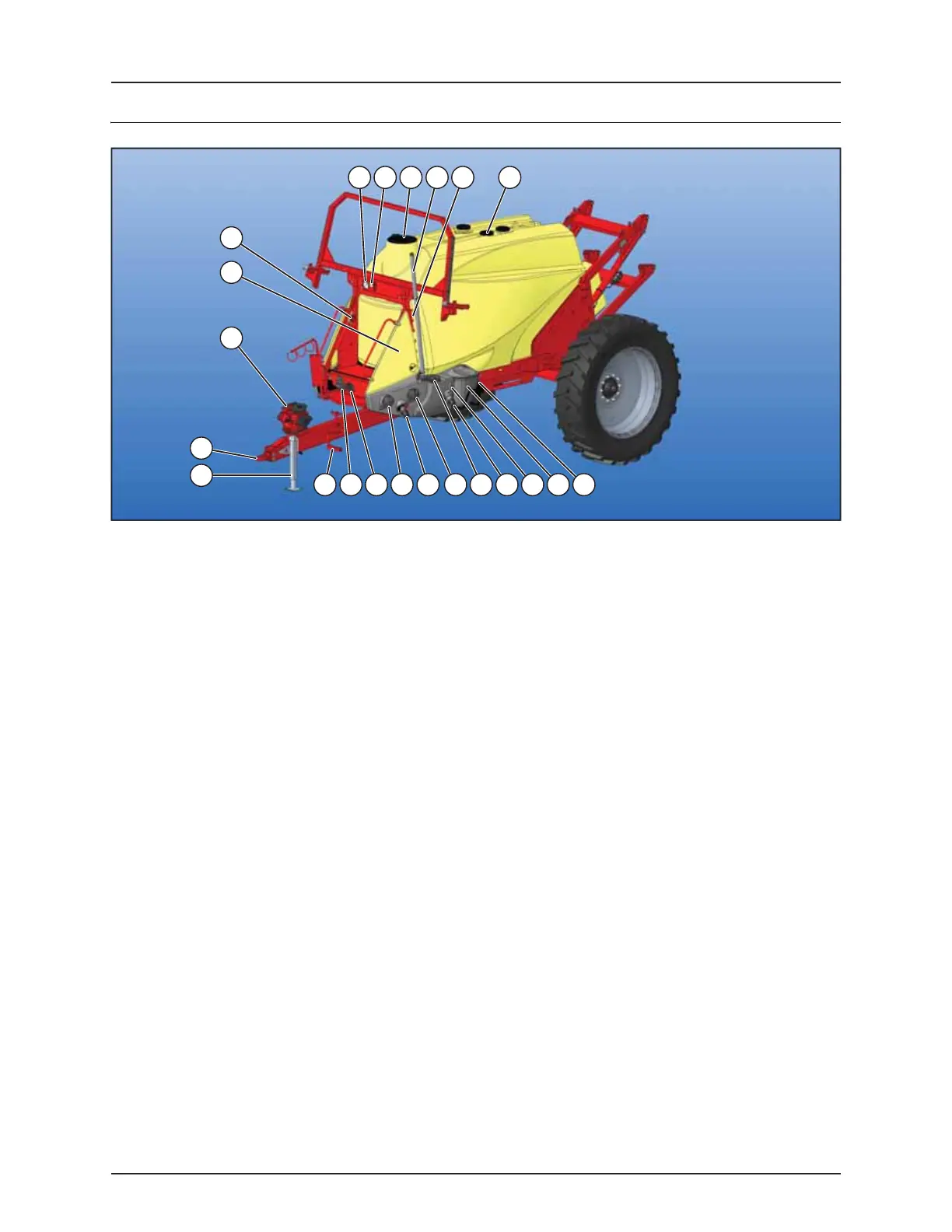

1. Tank Tube Riser/Pipe Lid
2. Rinse Tank Level Indicator
3. Main Tank Level Indicator
4. Main Tank Lid
5. EasyClean Filter Clogging Indicator
6. Spray Pressure Gauge
7. Clean Water Tank Lid
8. SafetyLocker
9. Pump
10. Drawbar Hitch
11. Support Leg
12. Step to Platform
13. Pressure Regulation Valve (EVC/Std, EFC/DF4)
14. Agitation Valve
15. Pressure SmartValve
16. Rinse Tank Coupler
17. Suction SmartValve
18. EasyClean Filter
19. Main Tank Filling Coupler
20. Main Tank Quick Fill Valve
21. TurboFiller
22. TurboFiller Valves
7
8
9
6 5 4 3 2 1
10
11
12 13 14 15 16 17 18 19 20 21 22
