Hardi NAVIGATOR 3000 User Manual

3 - Description
21

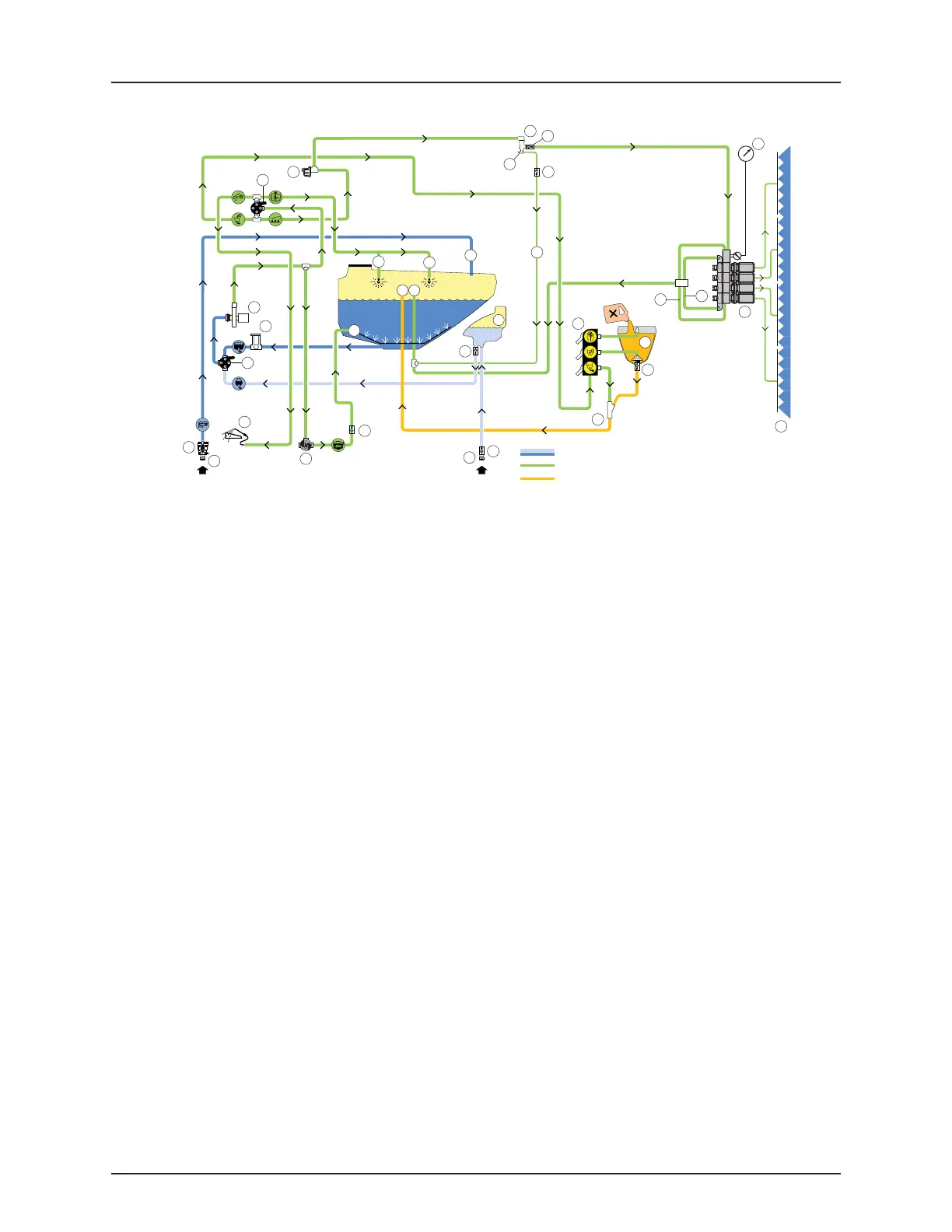

Diagram - EVC Control Unit (Std), Centrifugal Liquid System with optional extras
1. Pump
2. EasyClean filter
3. Suction SmartValve
4. Pressure Regulation Valve (Std/EVC)
5. Pressure SmartValve
6. CycloneFilter
7. Purge Valve
8. Return Line for Boost Function
9. Return pressure drop
10. Return pressure equalization
11. Distribution Valves (EVC)
12. Remote Pressure Gauge
13. Spray Boom
14. Agitation Valve
15. Agitation Tube
16. Return Line / Riser Pipe
17. One-Way Valve
18. Main Tank Quick Fill coupler
19. Main Tank Quick Fill valve
20. Main Tank Quick Fill hose to tank inlet
21. Rinse Tank (optional)
22. Rinse Tank Quick Fill Coupler (optional)
23. Tank Rinsing Nozzles (optional)
24. Valve block TurboFiller (optional)
25. Turbofiller (optional)
26. Ejector for TurboFiller (optional)
27. Tank tube for TurboFiller (optional)
28. External Cleaning (optional)
1
2
28
6
17
17
17
22
17
4
8
9
10
26
24
7
27
16
20
23
21
15
14
13
23
12
11
18
19
17
17
Suction lines
Pressure lines
Pressure/Chemical line
5
3
25
