4 - Sprayer setup
46
Transport
Adjusting boom transport position
If the boom wings do not rest accurately in the transport brackets, the
wings can be adjusted as described below:
1. Lift the boom all the way to the top.
2. Fold the boom into transport position. With the fold cylinder
pressurized, determine if the boom wings need to be adjusted
inwards or outwards.
3. Relieve the pressure from the fold cylinder by unfolding the boom
a few inches.

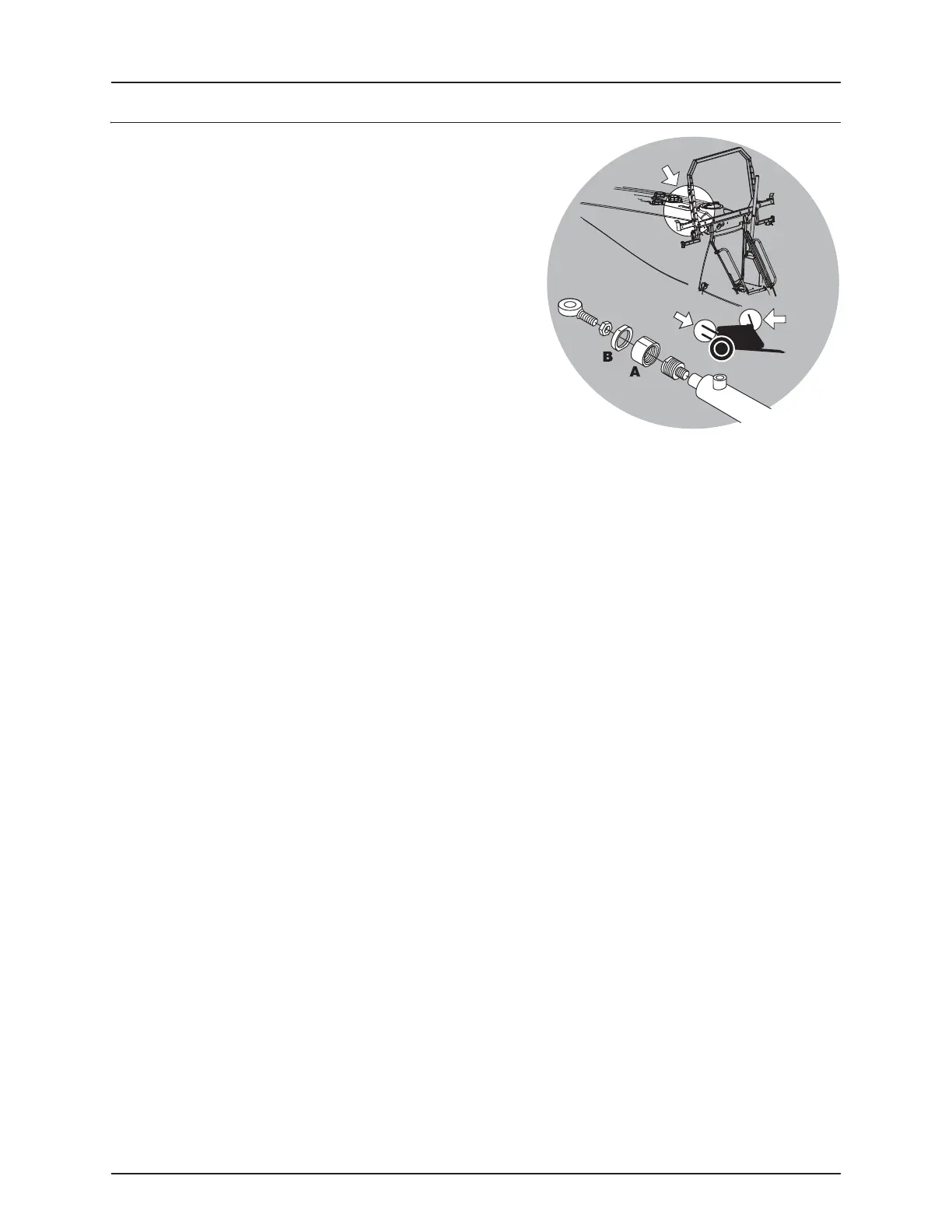

4. If the boom rests too far in on the transport brackets, loosen the
nut (B) and adjust collar (A) in towards the cylinder housing.
5. If the boom rests too far out on the transport brackets, the collar
(A) has to go out from the cylinder housing.
6. Secure jam nut (B).
7. Pressurize the cylinder to see if the boom is properly adjusted. If
not, repeat the above procedure until it is correctly adjusted.
