5 - Operation
5.10
Filling powder chemicals by HARDI® TurboFiller (optional)
1. Fill the main tank at least 1/2 with water (unless something else is
stated on the chemical container label). See section “Filling of
water”.
2. Turn the handle at the bottom Suction Manifold towards “Main
tank”. Turn top Pressure Manifold valve towards “TurboFiller” and
the bottom Pressure Manifold valve towards “Agitation”. Close
remaining valves.
3. Engage pump and set to operating r.p.m. (540/1000).
4. Open TurboFiller lid.

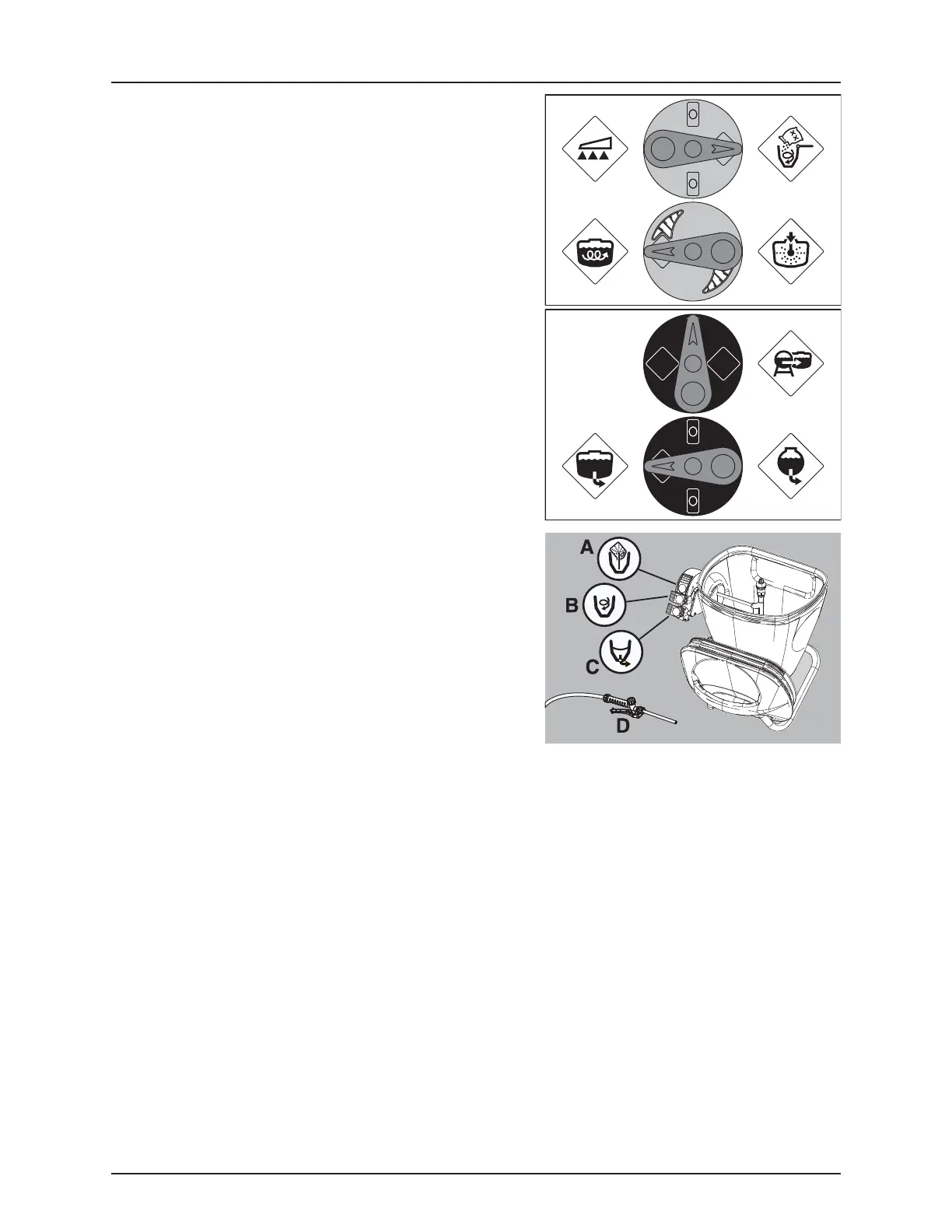

5. Open TurboDeflector valve (B) and TurboFiller suction valve (C).
6. Measure the correct quantity of chemical and sprinkle it into the
hopper as fast as the transfer device can flush it down.
7. If the chemical container is empty, it can be rinsed by the Chemical
Container Cleaning device. Place the container over the multi-hole
nozzle and press the lever (A).
8. Place the rinsing wand inside the hopper and press the lever (D) to
rinse the concentrated chemicals from the hopper.
9. Close TurboFiller suction valve (C) when the hopper is rinsed.
10. Close TurboFiller lid.
11. When the spray liquid is well mixed, turn top Pressure Manifold
valve towards “Spraying” position. Keep P.T.O. engaged so the
spray liquid is continuously agitated until it has been sprayed on
the crop.
€
DANGER! Do not press lever unless the multi-hole nozzle is
covered by a container to avoid spray liquid hitting the operator.
ATTENTION! Rinsing device uses spray liquid to rinse containers
for concentrated chemicals. Always rinse the chemical containers
with clean water several times until they are clean before
disposal.
ATTENTION! The hopper rinsing device is using spray liquid for rinsing the hopper for concentrated chemical! The
TurboFiller must always be cleaned together with the rest of the sprayer when the spray job is done.
ATTENTION! The scale in the hopper can only be used if the sprayer is parked at level ground! It is recommended to
use a measuring jug for best accuracy.
