8 - Technical specifications
8.7
EVC
The EVC operating unit fulfills the EC noise reduction standards.
When connecting an optional function, be aware that maximum current for every connector is 2 Amp. Total current for the
whole connector box may not exceed 10 Amp.

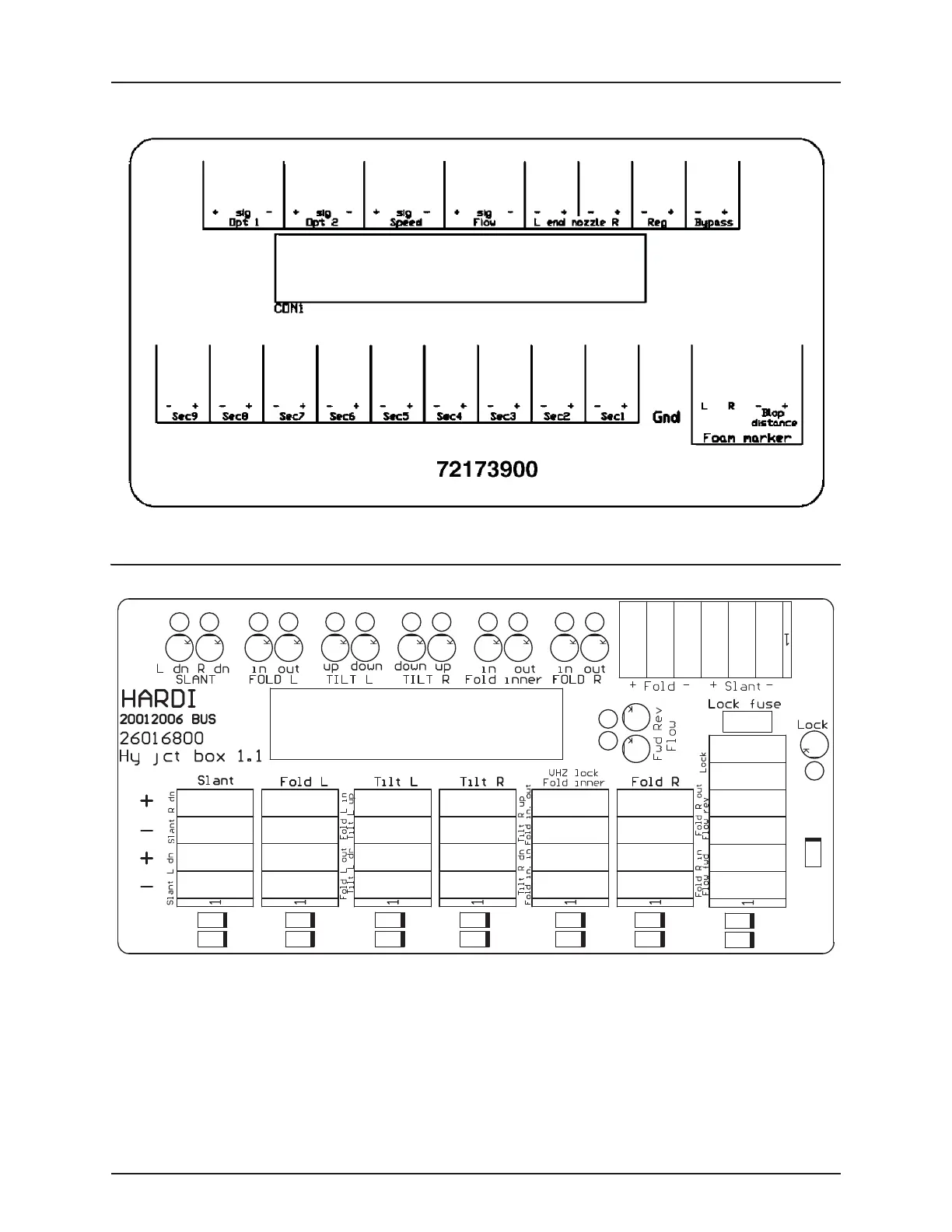

Hydraulic box
ATTENTION: The functions shown above in italics (i.e. “Option H +”) are not printed on the circuit board, but are shown
for identification purposes.
In +
In -
Out +
Out -
Up +
Up -
Down +
Down -
Up +
Up -
Down +
Down -
Out +
Out -
In +
In -
Flow rev +
Flow rev -
Flow fwd +
Option H +
Option H -
Option I +
Option I -
Flow fwd -
