If your receiver is to be used monophonically and stereo is to be added
at a later date, it is essential that both speaker output terminals are terminated
info a proper load to prevent damage to the output stage of the receiver. Refer
to Diagram or proper installation of the loading resistor.
At no time should the output terminals be paralleled for monophonic
_ __ _______ _
i.*_ __ __i
SYSTEM 1
CONNECTING THE SPEAKERS FOR STEREO OPERATION
(2 SYSTEMS)

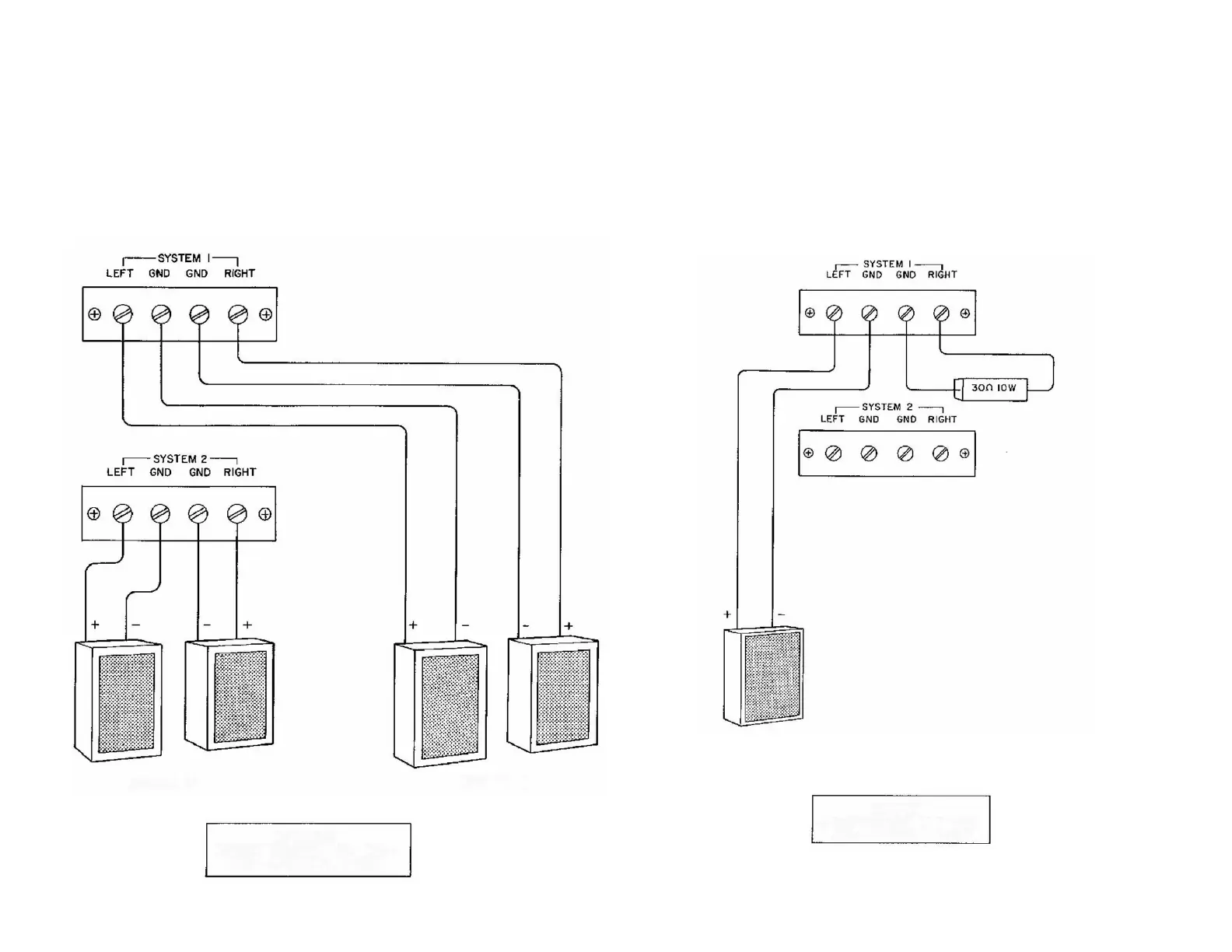

1, Connect all four speakers for two system operation as shown in Dia
gram.
2. You may now select either system 1, or system 2 by the use of the
speaker selector'switch located on the left side of the front panel of your
receiver.
CAUTION
CONNECT SPEAKERS WITH CARE-
AVOID ACCIDENTAL SHORTS
CAUTION
CONNECT SPEAKER WITH CARE-
AVOID ACCIDENTAL SHORTS
SYSTEM 1
SYSTEM 2
