If your receiver is to be used monophonically and stereo is to be added
at a later date, if is essential that both speaker output terminals are terminated
into a proper load to prevent damage to the output stage of the receiver. Refer
to Diagram for proper installation of the loading resistors.
At no time should the output terminals be paralleled for monophonic
operation I

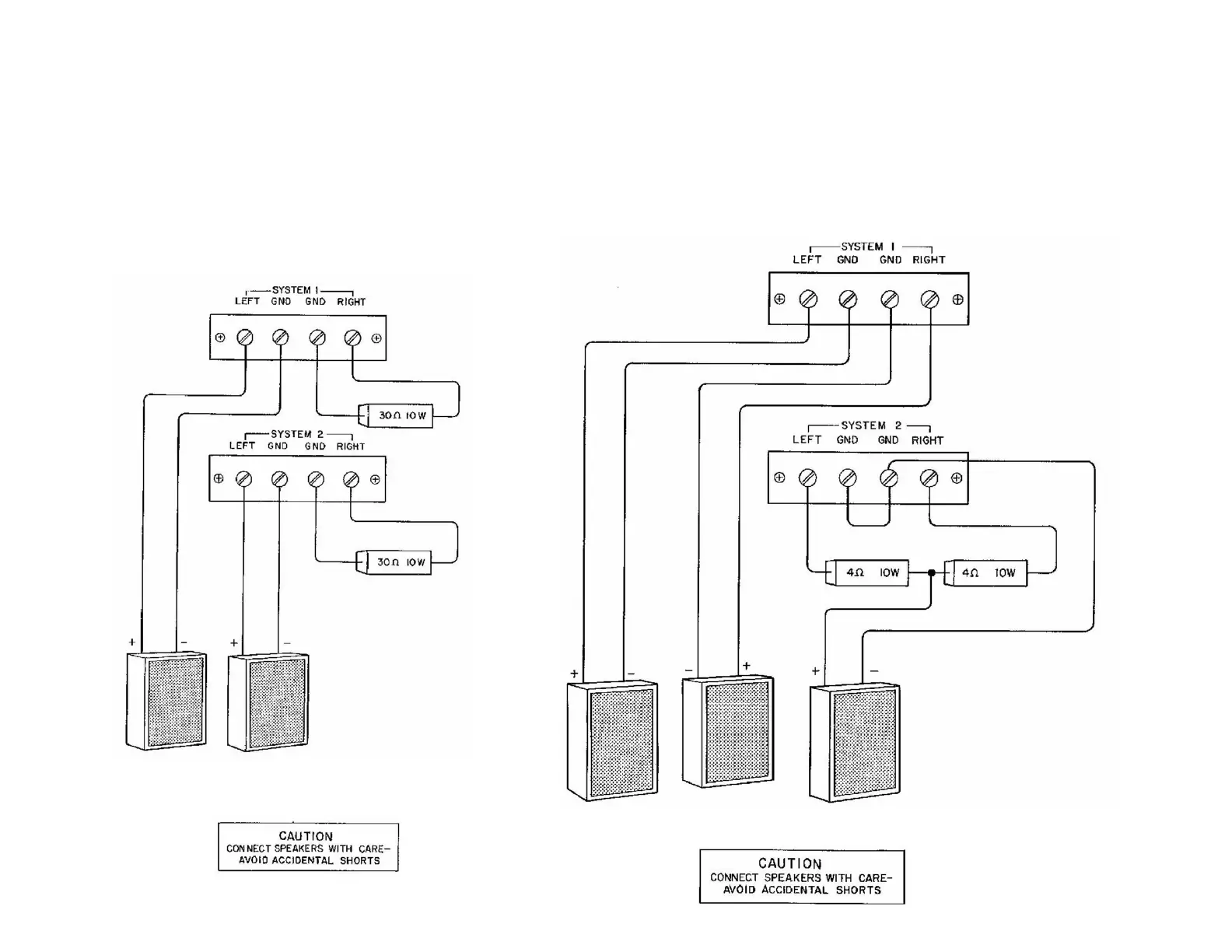

CONNECTING THE SPEAKER FOR STEREOPHONIC
OPERATION (SYSTEM 1} AND MONOPHONIC
OPERATION (SYSTEM 2}
SYSTEM 1
SYSTEM 2
SYSTEM I SYSTEM 2
