Making Connections
Connect Your TV or Video Display

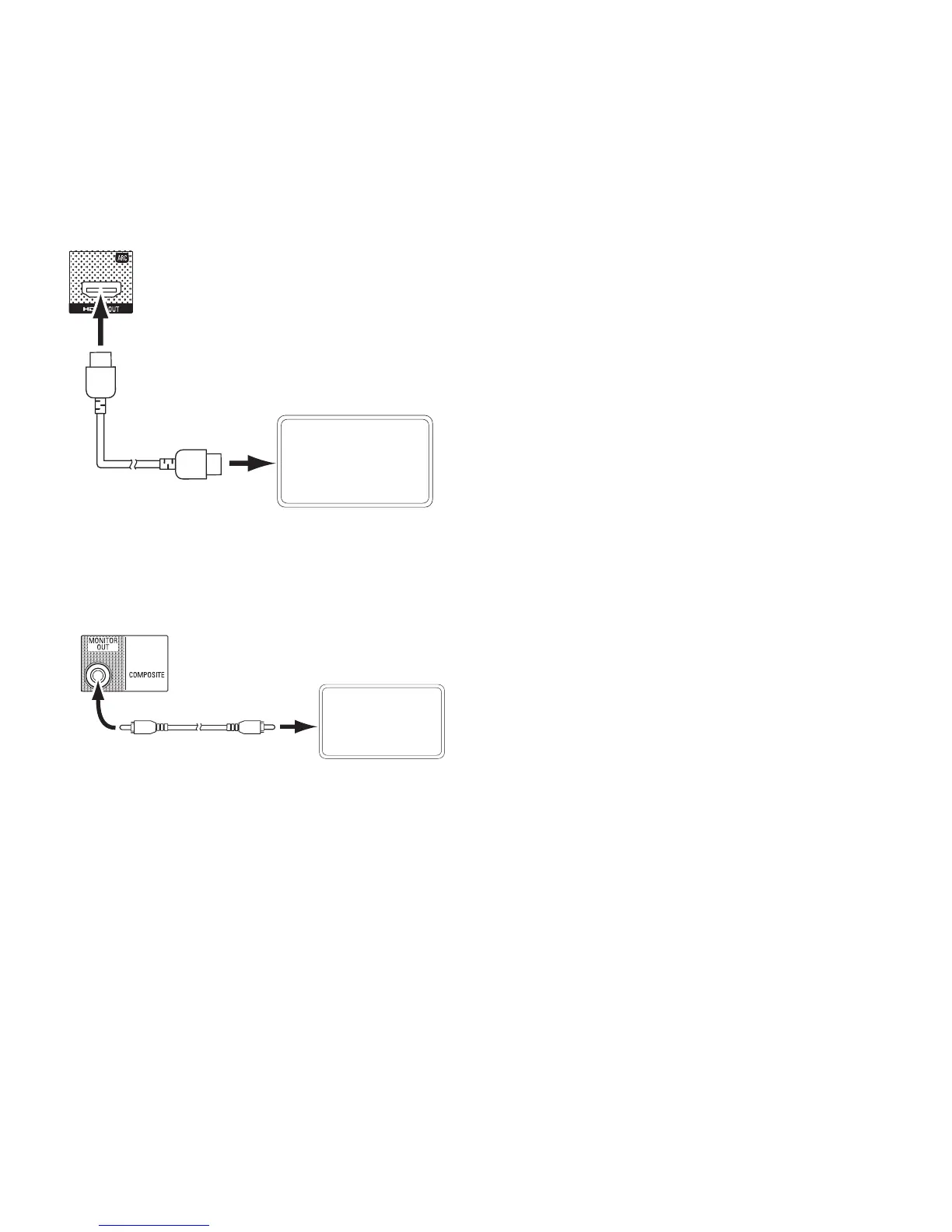

If your TV has an HDMI connector and you have HDMI source devices: Use an HDMI
cable (not included) to connect it to the AVR’s HDMI Out connector. This will provide the
best possible picture quality.
AVR HDMI Out
Connector
TV
HDMI Cable
(not supplied)
If your TV does not have an HDMI connector or if your TV does have an HDMI
connector but you are connecting some source devices with only composite video
connectors: Use a composite video cable (not included) to connect the AVR’s Composite
Monitor Out connector to your TV’s composite video connector.
TV
AVR Composite
Monitor Out Connector
Composite Video Cable
(not supplied)
NOTE: If you use only the composite video connection to your TV, you will not be able to
view the AVR’s on-screen menus.

Harman Kardon AVR 1510 Specifications

Audio Specifications

stereo power	75W per channel, two channels driven @ 6/8 ohms, 1kHz, <0.1% THD
multichannel power	75W per channel, two channels driven @ 6/8 ohms, 1kHz, <0.1% THD
input sensitivity/impedance	250mV/27k ohms
signal-to-noise ratio (IHF-A)	75dB
frequency response (@ 1W)	10Hz – 130kHz (+0dB/–3dB)
high instantaneous current capability (HCC)	±25 amps
slew rate	40V/sec

FM Tuner Specifications

frequency range	87.5MHz – 108.0MHz
usable sensitivity IHF	1.3µV/13.2dBf
signal-to-noise ratio (mono/stereo)	70dB/68dB
distortion (mono/stereo)	0.2%/0.3%
stereo separation	40dB @ 1kHz
selectivity (±400kHz)	70dB

AM Tuner Specifications

frequency range	520kHz – 1, 510kHz
signal-to-noise ratio	38dB
usable sensitivity (loop)	375µV
distortion (1kHz, 50% mod)	1.0%
selectivity (±10kHz)	30dB

Video Specifications

television format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response (composite video)	10Hz – 8MHz (–3dB)
HDMI	Supports up to 4K x 2K

General Specifications

power requirement	120V AC / 60Hz
power consumption	<0.5W (standby); 410W maximum
dimensions (H x W x D)	4-3/4" x 17-5/16" x 11-13/16" (121mm x 440mm x 300mm)
weight	10 lb (4.6kg)
