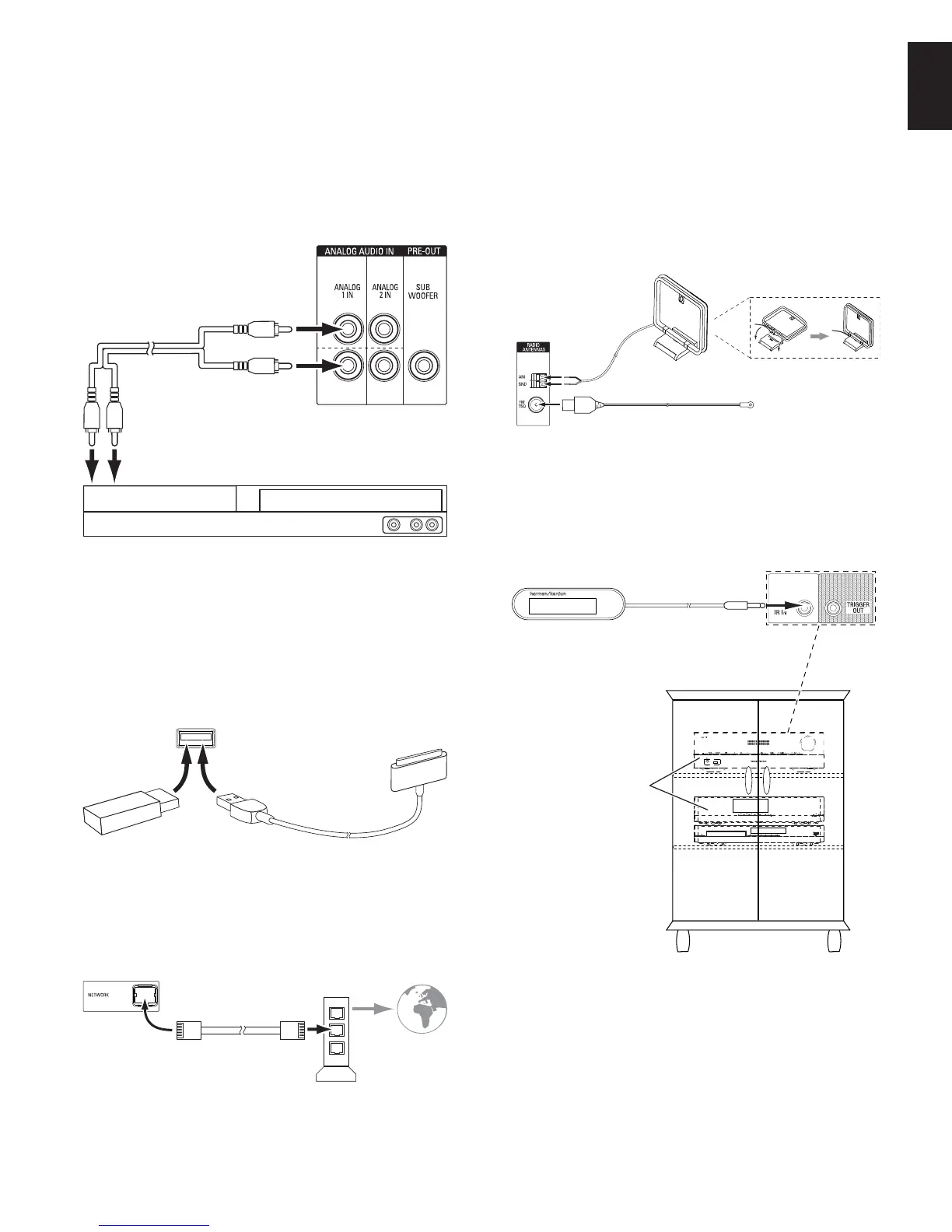

Making Connections
Connect Your Analog Audio Devices
Use the AVR’s analog audio connectors for source devices that don’t have HDMI or digital
audio connectors.
Stereo Audio Cable
(not supplied)
To Stereo Analog
Audio Output
Analog Source Device
AVR
Analog Audio Connectors
USB and iOS Devices
Use the AVR’s front-panel USB port to connect an iPod, iPhone or iPad using an Apple
cable (not supplied) or to directly connect a USB memory stick. You can play audio files
from the device or memory stick and use the AVR’s remote to control playback.
AVR
Front-Panel
USB Port
USB
Memory
Stick
Apple Cable
(not supplied)
Connect to Your Home Network
Use a Cat. 5 or Cat. 5E cable (not supplied) to connect the AVR’s Network connector to
your home network to enjoy Internet radio and content from DLNA-compatible devices
that are connected to the network.
AVR
Network
Connector
Network
Modem
Cat. 5/5E Cable (not supplied)
To Home
Network
and Internet
Connect the Radio Antennas
Connect the supplied FM antenna to the AVR’s FM 75 antenna connector. For the Ř
best reception, extend the FM antenna as far as possible.
Bend and fold the base of the supplied AM antenna as shown and connect the Ř
antenna wires to the AVR’s AM and Gnd connectors. (You can connect either wire to
either connector.) Rotate the antenna as necessary to minimize background noise.
AVR
Antenna
Connectors
FM Antenna (supplied)
AM Antenna
(supplied)
Bend and fold base
Connect IR Equipment
The AVR is equipped with a Remote IR Input connector that lets you remotely control the
AVR in a variety of situations:
When you place the AVR inside a cabinet or facing away from the listener, connect Ř
an external IR receiver, such as the optional Harman Kardon HE 1000, to the AVR’s
IR In jack.
AVR IR In Jack
External IR
Receiver
AVR and Source Devices
Installed Inside of Cabinet
To Next Page
