Harman Kardon AVR 1510 User Manual

16
AVR
Making Connections

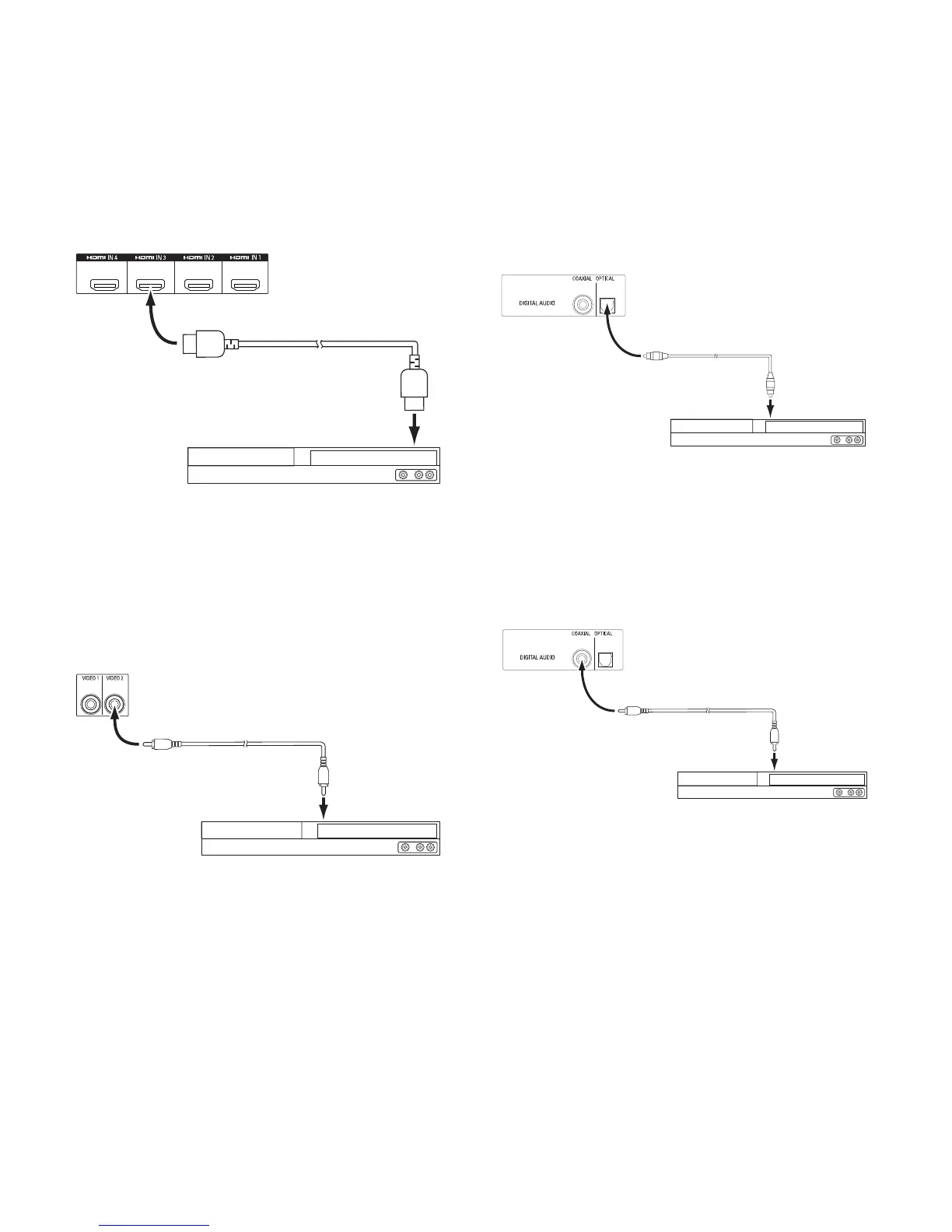

Connect Your HDMI Devices
If any of your source devices have HDMI connectors, using them will provide the best
possible video and audio performance quality. Since the HDMI cable carries both digital
video and digital audio signals, you do not have to make any additional audio connections
for devices you connect via an HDMI cable.
AVR HDMI Connectors
HDMI-Equipped Source Device
HDMI Cable
(not supplied)
To HDMI
Output
NOTE: If you have HDMI devices already connected directly to your TV, you can feed their
sound to the AVR via the HDMI Out connector’s Audio Return Channel, and they will not
require additional connections to the AVR.
Connect Your Composite Video Devices
Use composite video connectors for video source devices that don’t have HDMI
connectors. You will also need to make an audio connection from the source device to
the AVR.
AVR Composite In Connectors
Composite-Equipped Source Device
Composite Video Cable(not supplied)
To Composite
Video Output
Connect Your Optical Digital Audio Devices
If your non-HDMI source devices have optical digital outputs, connect them to the AVR’s
optical digital audio connectors.
NOTE: Make only one type of digital connection (HDMI, optical or coaxial) from each
device.
AVR Digital
Audio Connectors
Optical-Equipped Source Device
Optical Digital Audio
Cable (not supplied)
To Optical Digital
Audio Output
Connect Your Coaxial Digital Audio Devices
If your non-HDMI source device has a coaxial digital output, connect it to the AVR’s
coaxial digital audio connector.
NOTE: Make only one type of digital connection (HDMI, optical or coaxial) from each
device.
Coaxial Digital Audio
Cable (not supplied)
To Coaxial Digital
Audio Output
Coaxial-Equipped Source Device
AVR Digital
Audio Connectors

Harman Kardon AVR 1510 Specifications

Audio Specifications

stereo power	75W per channel, two channels driven @ 6/8 ohms, 1kHz, <0.1% THD
multichannel power	75W per channel, two channels driven @ 6/8 ohms, 1kHz, <0.1% THD
input sensitivity/impedance	250mV/27k ohms
signal-to-noise ratio (IHF-A)	75dB
frequency response (@ 1W)	10Hz – 130kHz (+0dB/–3dB)
high instantaneous current capability (HCC)	±25 amps
slew rate	40V/sec

FM Tuner Specifications

frequency range	87.5MHz – 108.0MHz
usable sensitivity IHF	1.3µV/13.2dBf
signal-to-noise ratio (mono/stereo)	70dB/68dB
distortion (mono/stereo)	0.2%/0.3%
stereo separation	40dB @ 1kHz
selectivity (±400kHz)	70dB

AM Tuner Specifications

frequency range	520kHz – 1, 510kHz
signal-to-noise ratio	38dB
usable sensitivity (loop)	375µV
distortion (1kHz, 50% mod)	1.0%
selectivity (±10kHz)	30dB

Video Specifications

television format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response (composite video)	10Hz – 8MHz (–3dB)
HDMI	Supports up to 4K x 2K

General Specifications

power requirement	120V AC / 60Hz
power consumption	<0.5W (standby); 410W maximum
dimensions (H x W x D)	4-3/4" x 17-5/16" x 11-13/16" (121mm x 440mm x 300mm)
weight	10 lb (4.6kg)
