Harman Kardon AVR 1565 User Manual

15
AVR 1565/AVR 1566
Making Connections, continued,
and Set Up the Remote Control

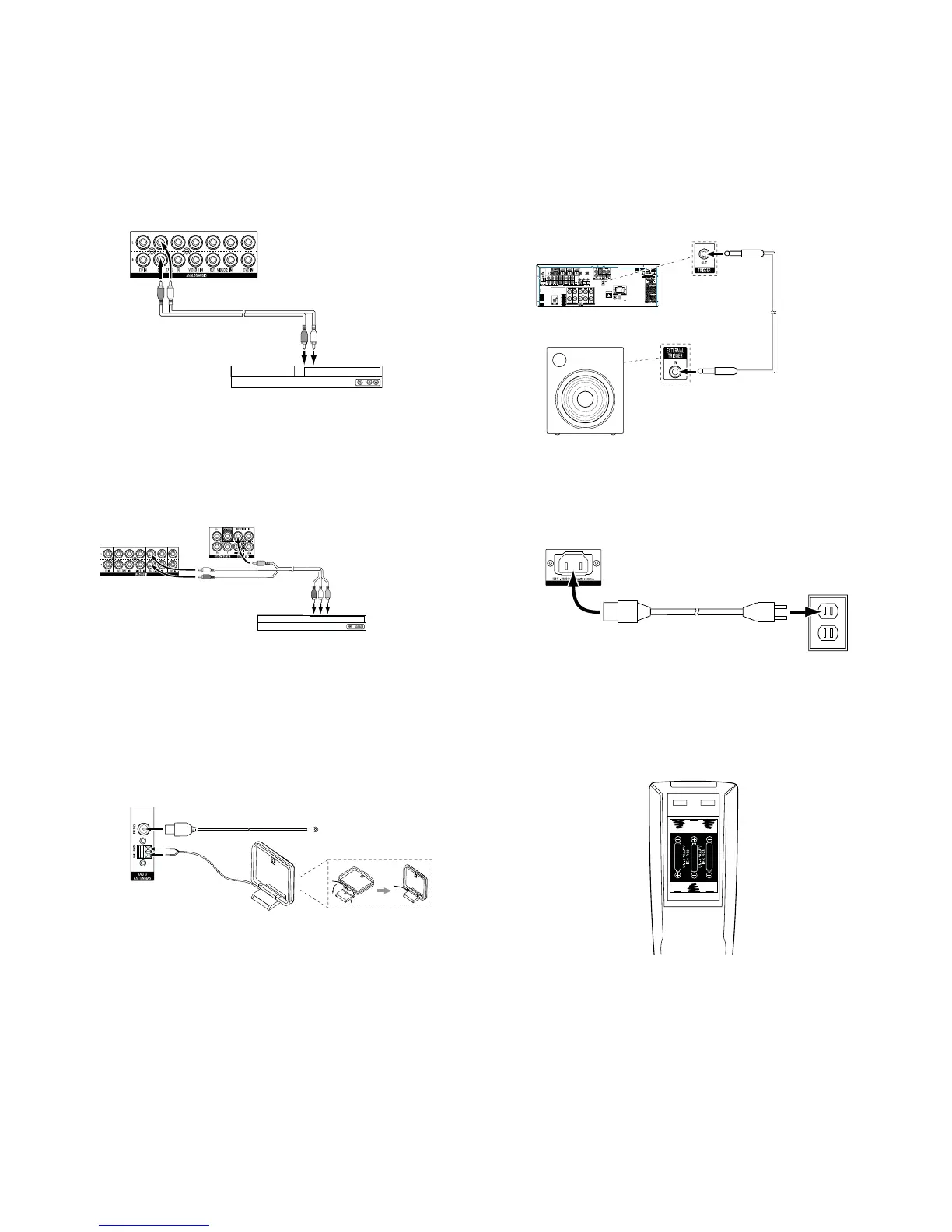

Audio recorders
Connect an analog audio recorder’s inputs to the AVR’s analog audio Tape Out connectors.
You can record any analog audio input signal.
Stereo Audio Cable
(not supplied)
To Stereo Analog
Record Outputs
Analog Recording Device
AVR Analog Audio
Recorder Connectors
Video recorders
Connect an analog video recorder’s video input connector to the AVR’s Video 2 Out
Composite Video connector, and its audio input connectors to the AVR’s Video 2 Out
Analog Audio connectors. You can record any composite video signal.
Analog Audio/Video
Cable (not supplied)
To Analog Audio/Video
Record Inputs
Analog Video
Recording Device
AVR Analog
Audio Connectors
AVR Analog
Video Connectors
Connect the Radio Antennas
• Connect the supplied FM antenna to the AVR’s FM 751 Radio Antenna connector. For
the best reception, extend the FM antenna as far as possible.
• Bend and fold the base of the supplied AM antenna as shown and connect the antenna
wires to the AVR’s AM and Gnd connectors. (You can connect either wire to either
connector.) Rotate the antenna as necessary to minimize background noise.
AVR Radio Antenna
Connectors
FM Antenna (supplied)
AM Antenna
(supplied)
Bend and fold base
Connect the 12V Trigger Output
If your system has equipment that can be controlled by a DC trigger signal, connect it to
the AVR’s 12V Trigger connector with a mono 1/8-inch (3.5mm) mini-plug interconnect
cable. The AVR will supply a 12V DC (100mA) trigger signal at this connection whenever
it is powered on.
Device with Trigger
in Connector
AVR
Mono 1/8-inch
(3.5mm)
Mini-Plug
Interconnect
(not supplied)
Connect to AC Power
Connect the AC power cord to the AVR’s AC Input connector and then to a working AC
power outlet.
AVR AC
Input Connector
AC Power
Outlet
Power Cord
(supplied)
Set Up the Remote Control
Install the Batteries in the Remote Control
Remove the remote control’s battery cover, insert the three supplied AAA batteries as
shown in the illustration, and replace the battery cover.
NOTE: Remove the protective plastic from the AVR’s front panel to keep it from reducing
the remote control’s effectiveness.

Harman Kardon AVR 1565 Specifications

General

Impedance	75 Ω
Receiver type	-
Frequency range	10 - 130000 Hz
Audio output channels	- channels
Signal-to-Noise Ratio (SNR)	45 dB
Power output per channel (1KHz@8 Ohm)	70 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	3
Number of HDMI outputs	1
Ethernet LAN	No
AM band range	520 - 1720 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
3D	Yes
Analog signal format system	NTSC
HDMI version	1.4a
Product color	Black, Grey
Volume control	Rotary

Weight and Dimensions

Depth	435 mm
Width	440 mm
Height	165 mm
Weight	4127 g
