REAR- PANEL CONNECTIONS
6-/8-Channel Analog Audio Inputs
DVD
Audio/Video
Inputs
HDMI Monitor
Output
HDMI 1-3
Inputs
Center
Speaker
Outputs
Main
Power
Switch
Component
1 & 2
Inputs
Component Video
Monitor Output
Video
Monitor
Output
Video 1
Audio/Video
Inputs &
Outputs
Surround
Back
Speaker
Outputs
Front
Speaker
Outputs
Tape Audio
Inputs &
Outputs
AUX Input
AM Antenna
FM Antenna
CD Inputs
Surround
Speaker
Outputs
AC Power Cord
Video 2
Audio/Video
Inputs
Subwoofer
Output
Coaxial
Digital
Audio
Output
Coaxial 1 & 2 Digital Audio Inputs
Optical 1& 2
Digital
Audio
Inputs

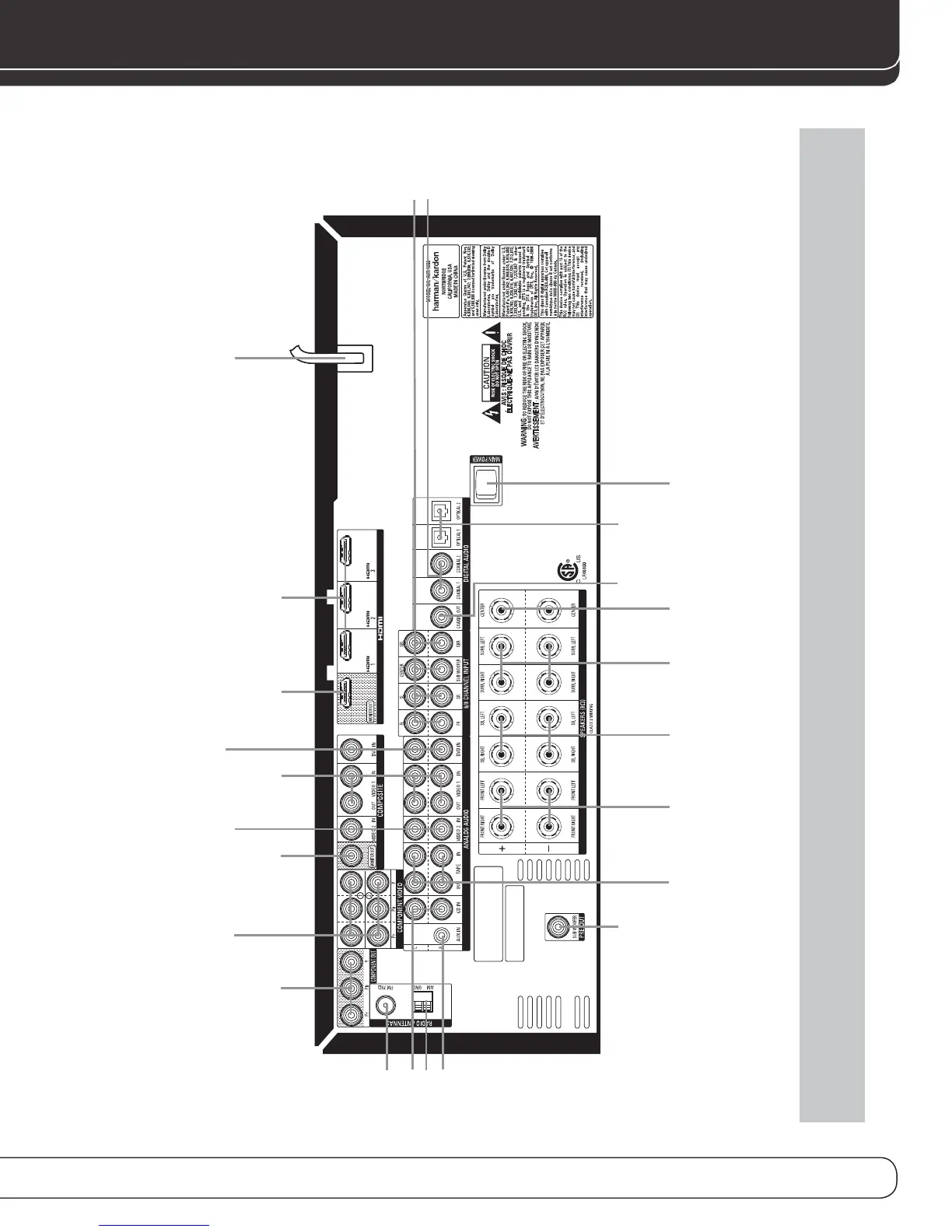

NOTE: To make it easier to follow the instructions throughout the manual that refer to this illustration, a copy of this page may be downloaded from the Product Support section at www.harmankardon.com.
