Harman Kardon AVR 1650 Quick Start Guide

ConnectionsAVR 1650, AVR 165
Audio Recorders
Connect an analog audio recorder’s inputs to the AVR's analog audio Tape Out connectors.
You can record any analog audio input signal.
You can connect the AVR's optical digital output to a digital audio recorder’s optical
digital input. You can record both coaxial and optical digital input signals.
Video Recorders
Connect an analog video recorder’s video input connector to the AVR's Video 2 Out
composite video connector and its audio input connectors to the AVR's Video 2 Out
analog audio connectors. You can record any composite video signal.
Connect The Bridge IIIP
Connect an optional The Bridge IIIP to the AVR's The Bridge IIIP connector. Insert the plug all
the way until it snaps into place in the connector. IMPORTANT: Connect The Bridge IIIP only
with the AVR's power turned OFF.
6

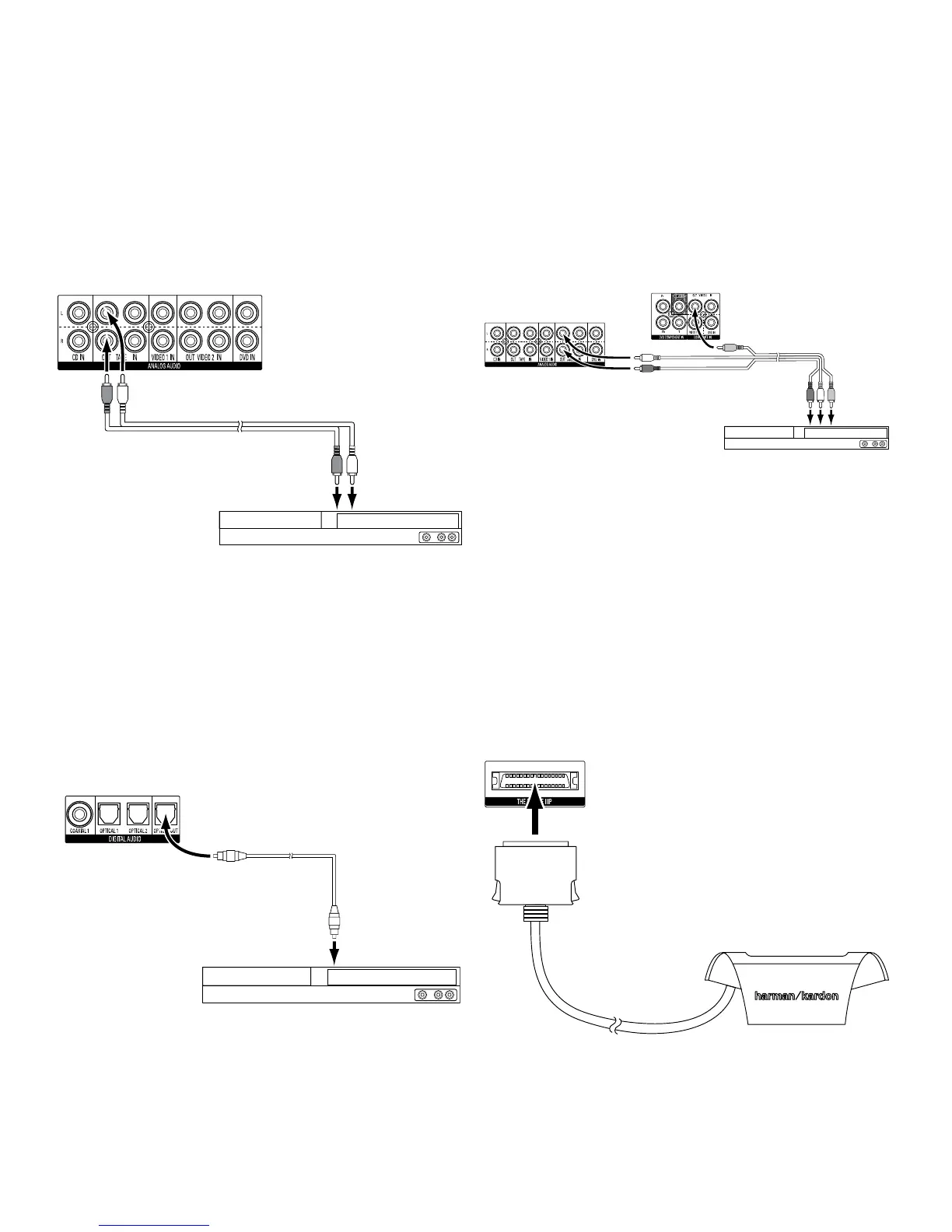

AVR
Analog Audio Recorder Connectors
Analog
Recording Device
Stereo Audio
Cable (not supplied)
To Stereo Analog Record
Inputs
Digital Audio Recorder Connector
Digital
Recording Device
Optical Digital Audio
Cable (not supplied)
To Optical Digital
Record Input
AVR Analog
Video Connectors
AVR Analog
Audio Connectors
Analog Video
Recording Device
Analog Audio/Video
Cable (not supplied)
To Analog Audio/Video
Record Inputs
AVR
The Bridge IIIP
Connector
The Bridge IIIP
