Harman Kardon AVR 500 User Manual

●
●
●
●
●
●
10 REMOTE CONTROL FUNCTIONS

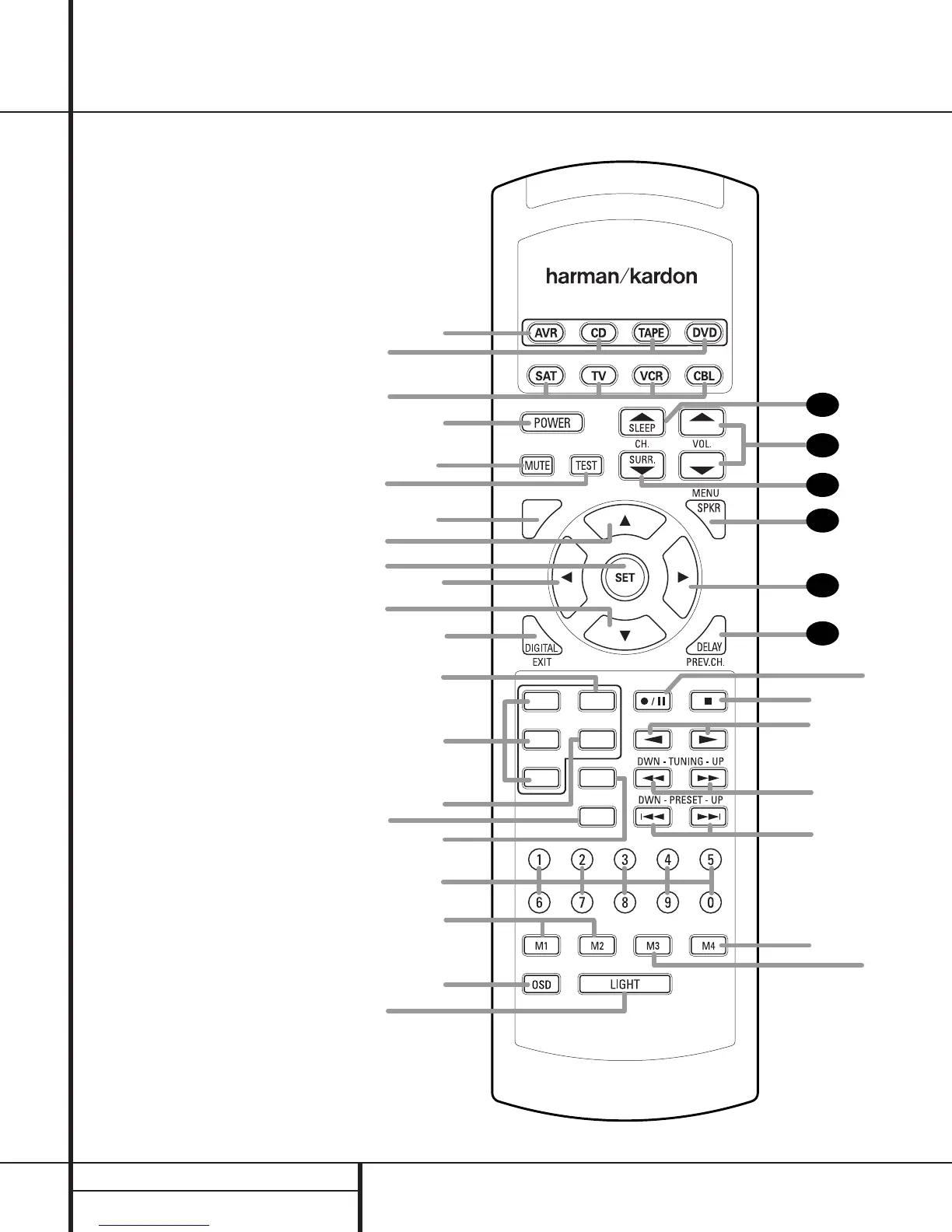

Remote Control Functions
VID1
VID2
VID3 TUN-M
AM/FM
6 CH.
T/V
GUIDE
CH.
MEMORY
DIRECT
AVR 500
CLEAR
NIGHT MULTI-ROOM
ON
a
t
k
m
o
b
c
e
g
g
l
n
p
s
u
d
f
h
j
i
q
r
v
w
y
`
z
28
29
30
31
32
33
x
a AVR Selector
b CD/Tape/DVD Input Selectors
c Video Remote Selectors
d Power Off Button
e Test Tone
f Mute
g
⁄
/
¤
Buttons
h Channel-Select Button
i Set Button
j
‹
Button
k Digital Select
l 6-Ch. Direct Input
m Video Input Selectors
n AM/FM Tuner Select
o Tuner Mode
p Memory Button
q Numeric Keys
r Macro 1/2 Buttons
s OSD Button
t Light Button
u Direct/Macro Button
v Clear/Macro Button
w Preset Up/Down
x Tuning Up/Down
y Forward/Reverse Transport Buttons
z Night Mode
` Multi-Room
28
Delay/Prev. Ch.
29
›
Button
30
Speaker Select
31
Surround Mode Selector
32
Volume Up/Down
33
Sleep Button
NOTE: The function names shown here are each
button’s feature when used with the AVR. Most
buttons have additional functions when used
with other devices. See page 30 for a list of
these functions.

Harman Kardon AVR 500 Specifications

Audio Specifications

continuous average power (FTC)	80 Watts per channel, 20Hz–20kHz, @ < 0.07% THD, both channels driven into 8 ohms
power per individual channel (Front L&R channels)	70 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
power per individual channel (Center channel)	70 Watts, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
power per individual channel (Surround channels)	70 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
input sensitivity/impedance	200mV/47 kohms
signal-to-noise ratio (IHF-A)	95dB
frequency response	10Hz–100kHz
high instantaneous current capability (HCC)	±45 Amps
rise time	16 µsec
slew rate	40V/µsec

FM Tuner Specifications

frequency range	87.5–108MHz
usable sensitivity IHF	1.3 µV/13.2dBf
signal-to-noise ratio mono/stereo	70/68dB
distortion mono/stereo	0.3/0.3%
stereo separation	40dB @ 1kHz
selectivity	±400kHz, 65dB
image rejection	80dB
IF rejection	90dB
tuner output level	500mV @ 1kHz, ±75kHz Dev

AM Tuner Specifications

frequency range	520–1710kHz
signal-to-noise ratio	45dB
usable sensitivity loop	500µV
distortion	0.8% @ 1kHz, 50% Mod
selectivity	±10kHz, 30dB

Video Specifications

video format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response	10Hz–8MHz (–3dB)

General Specifications

power requirement	AC 120V/60Hz
power consumption	78W idle, 694W maximum (2 channels driven)
width	17.3 inches (440mm)
height	6.5 inches (165mm)
depth	17.1 inches (435mm)
weight	34 lb (15.4 kg)
