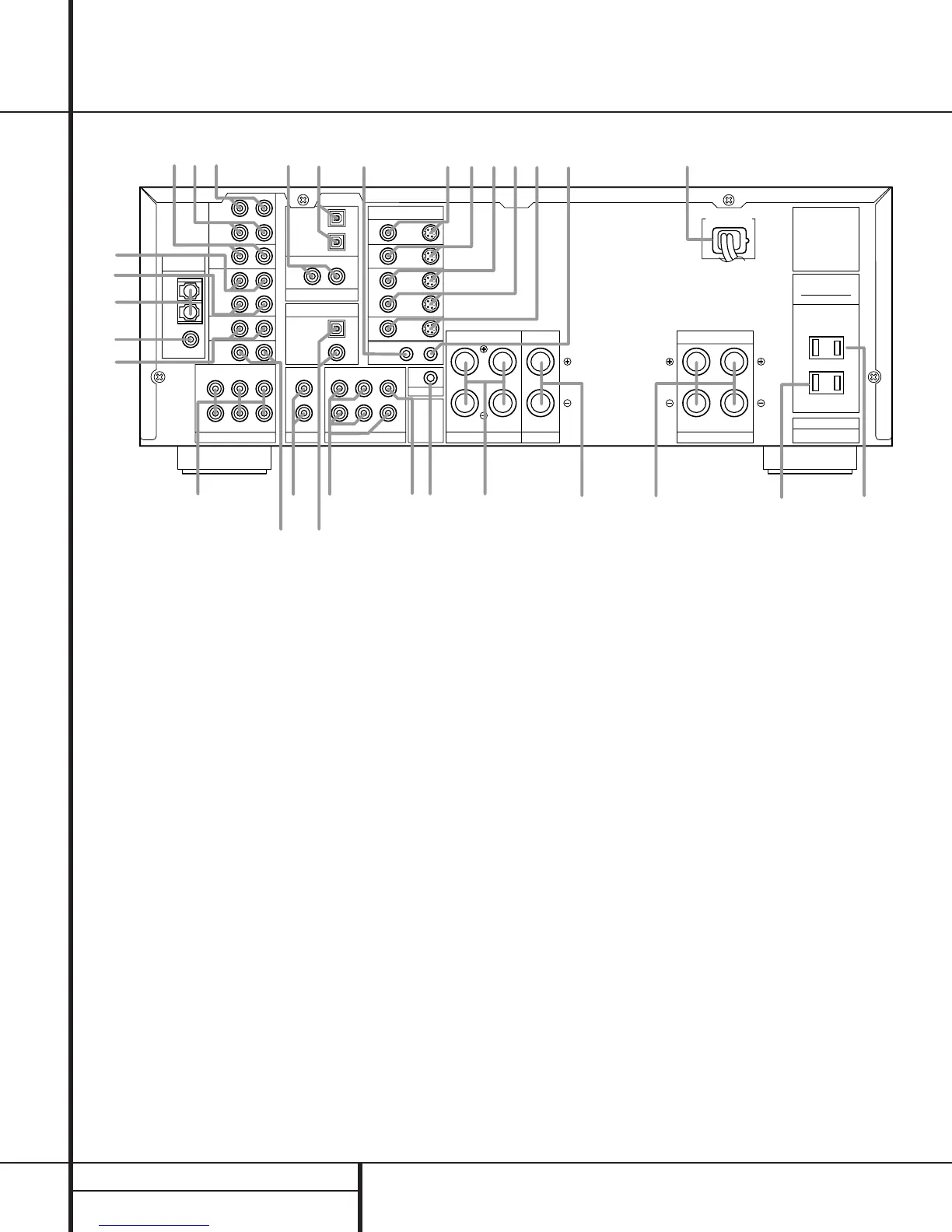

8 REAR PANEL CONNECTIONS
Rear Panel Connections
SWITCHED
TOTAL 150W or 0.5A MAX.
UNSWITCHED
TOTAL 100W or 1A MAX.
(120V.60Hz)
TOTAL 150W or 1.5A MAX
MODEL NO. AVR 500
HARMAN KARDON
NORTHRIDGE
CALIFORNIA, USA
FM
(75)
AM
ANTENNA
GND
AC
~
120V 60 Hz
IN
LR
OUT
TAPE
VIDEO
2
IN
OUT
VIDEO
1
DVD
CD
SL
FLCENTER
COAXIAL 2 COAXIAL 1
SR FRSUB WOOFER
SL
SUB WOOFERFL
ML
SR CENTERFR
MR
6 CH. DIRECT MULTI OUT PRE OUT
SERIAL NO.
AC OUTLETS
RIGHT
SPEAKERS 8 Ohms
LEFT
SURROUND
OUT IN
TV
MONITOR
OUT
VIDEO 2
IN
OUT
DVD
VIDEO 1
OPTICAL
2
OPTICAL
1
OPTICAL
1
COAXIAL
1
DIGITAL OUTPUT
MULTI IN
DIGITAL INPUT
VIDEO
REMOTE
CONTROL
RIGHT
SPEAKERS 8 Ohms SPEAKER 8 Ohm
LEFT CENTER
FRONT
CENTER
a
a
b
f
g
fl ‡
°
fi
›‹
‚
¶
§
∞
∞
VIDEO 1
DIGITAL INPUT
¤⁄
•
£
¡
™
¡
™
¢
c
·
e
d
ª
¡ Video 1 Inputs
Video 1 Outputs
£ AM Antenna
¢ FM Antenna
DVD Inputs
§ 6-Channel Direct Inputs
CD Inputs
Multiroom Audio Outputs
ª Digital Outputs
Preamp Outputs
Subwoofer Output
¤ Multiroom IR Input
Front Speaker Terminals
Center Speaker Terminals
Surround Speaker Terminals
Switched AC Outlet
Unswitched AC Outlet
° AC Power Cord
· Remote IR Input
a Video 2 Inputs
b TV Monitor Video Outputs
c Remote IR Output
d Optical Digital Inputs
e Coaxial Digital Inputs
f Tape Inputs
g Tape Outputs
NOTE: For all video inputs and outputs ¡ ™
∞ a b, the same number is used to indicate
the audio, composite-video and S-Video connec-
tions related to that input.This accounts for the
same number appearing in more than one place
on the rear-panel drawing.

Other manuals for Harman Kardon AVR 500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Harman Kardon AVR 500 and is the answer not in the manual?

Harman Kardon AVR 500 Specifications

Audio Specifications IconAudio Specifications
continuous average power (FTC)80 Watts per channel, 20Hz–20kHz, @ < 0.07% THD, both channels driven into 8 ohms
power per individual channel (Front L&R channels)70 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
power per individual channel (Center channel)70 Watts, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
power per individual channel (Surround channels)70 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
input sensitivity/impedance200mV/47 kohms
signal-to-noise ratio (IHF-A)95dB
frequency response10Hz–100kHz
high instantaneous current capability (HCC)±45 Amps
rise time16 µsec
slew rate40V/µsec
FM Tuner Specifications IconFM Tuner Specifications
frequency range87.5–108MHz
usable sensitivity IHF1.3 µV/13.2dBf
signal-to-noise ratio mono/stereo70/68dB
distortion mono/stereo0.3/0.3%
stereo separation40dB @ 1kHz
selectivity±400kHz, 65dB
image rejection80dB
IF rejection90dB
tuner output level500mV @ 1kHz, ±75kHz Dev
AM Tuner Specifications IconAM Tuner Specifications
frequency range520–1710kHz
signal-to-noise ratio45dB
usable sensitivity loop500µV
distortion0.8% @ 1kHz, 50% Mod
selectivity±10kHz, 30dB
Video Specifications IconVideo Specifications
video formatNTSC
input level/impedance1Vp-p/75 ohms
output level/impedance1Vp-p/75 ohms
video frequency response10Hz–8MHz (–3dB)
General Specifications IconGeneral Specifications
power requirementAC 120V/60Hz
power consumption78W idle, 694W maximum (2 channels driven)
width17.3 inches (440mm)
height6.5 inches (165mm)
depth17.1 inches (435mm)
weight34 lb (15.4 kg)
