Harman Kardon AVR340

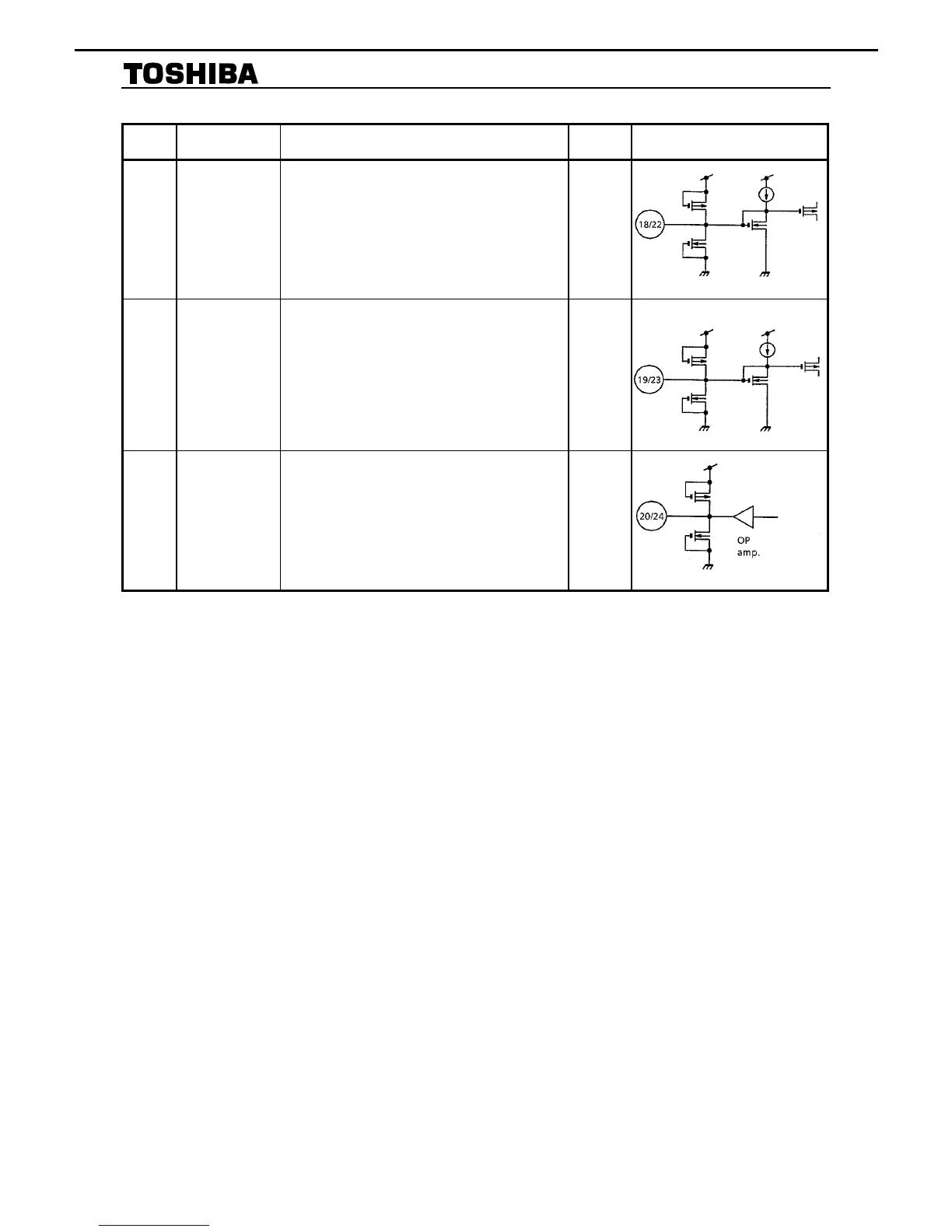

TC90A49P/F
PIN
No.
PIN NAME FUNCTION I / O INTERFACE
18 / 22 DAVRT
DAC output range D upper limit voltage.
Stabilize by attaching a 0.01µF capacitor.
−
19 / 23 DAVRB
DAC output range D lower limit voltage.
Stabilize by attaching a 0.01µF capacitor.
−
20 / 24 Y
OUT
Outputs luminance signal. External simple LPF
for clock elimination recommended.
O
AVR340 harman/kardon
142
