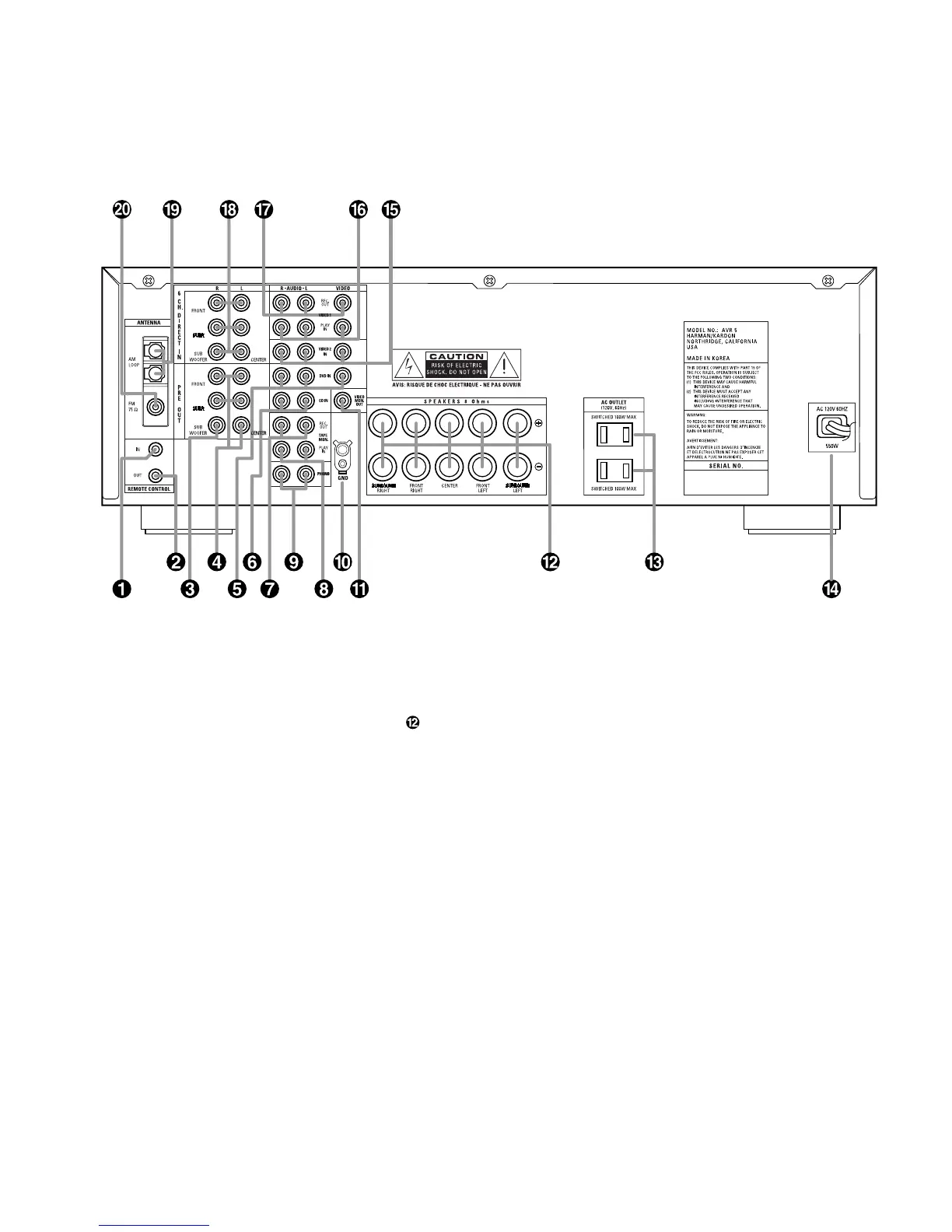

Rear Panel Connections
10
¡ Remote IR In
Remote IR Out
£ Subwoofer Pre-Out
¢ Pre-Outs
DVD Inputs
§ CD Inputs
Tape Monitor Out
Tape Monitor In
ª Phono Inputs
Phono Ground
TV Monitor Video Output
Speaker Terminals
Switched AC Outlets
Power Cable
Video 2 Inputs
Video 1 Inputs
Video Outputs 1
° 6-Channel Direct Inputs
· AM Antenna
a FM Antenna
¡ Remote IR In: If the AVR5’s front
panel IR sensor is blocked due to
cabinet doors or other obstructions,
an external IR sensor may be used.
Connect the output of the sensor to
this jack.
Remote IR Out: This connection
permits the IR sensor in the receiver
to serve other remote controlled
devices. Connect this jack to the “IR
IN” jack on Harman Kardon or other
compatible equipment.
£ Subwoofer Pre-Out: Connect
this jack to the line level input of a
powered subwoofer. If an external
subwoofer amplifier is used, connect
this jack to the subwoofer amplifier
input.
¢ Pre-Outs: If external power
amplifiers are used for any channels,
connect them to these jacks.
DVD Inputs: Connect the analog
audio outputs and composite video
output of a DVD or LV player to
these jacks.
§ CD Inputs: Connect these jacks
to the output of a compact disc
player or CD changer.
Tape Monitor Out: Connect these
jacks to the RECORD/INPUT jacks of
an audio recorder.
Tape Monitor In: Connect these
jacks to the PLAY/OUT jacks of an
audio recorder.
AVR5 om (e) 2/5/99 10:38 AM Page 10
