Lighting A Fire Manually
Lightingtheremanuallywillnotbenecessaryunlessthe
ignitersystemfails.
Follow steps 1 through 5 of the instructions for automatic
lighting.

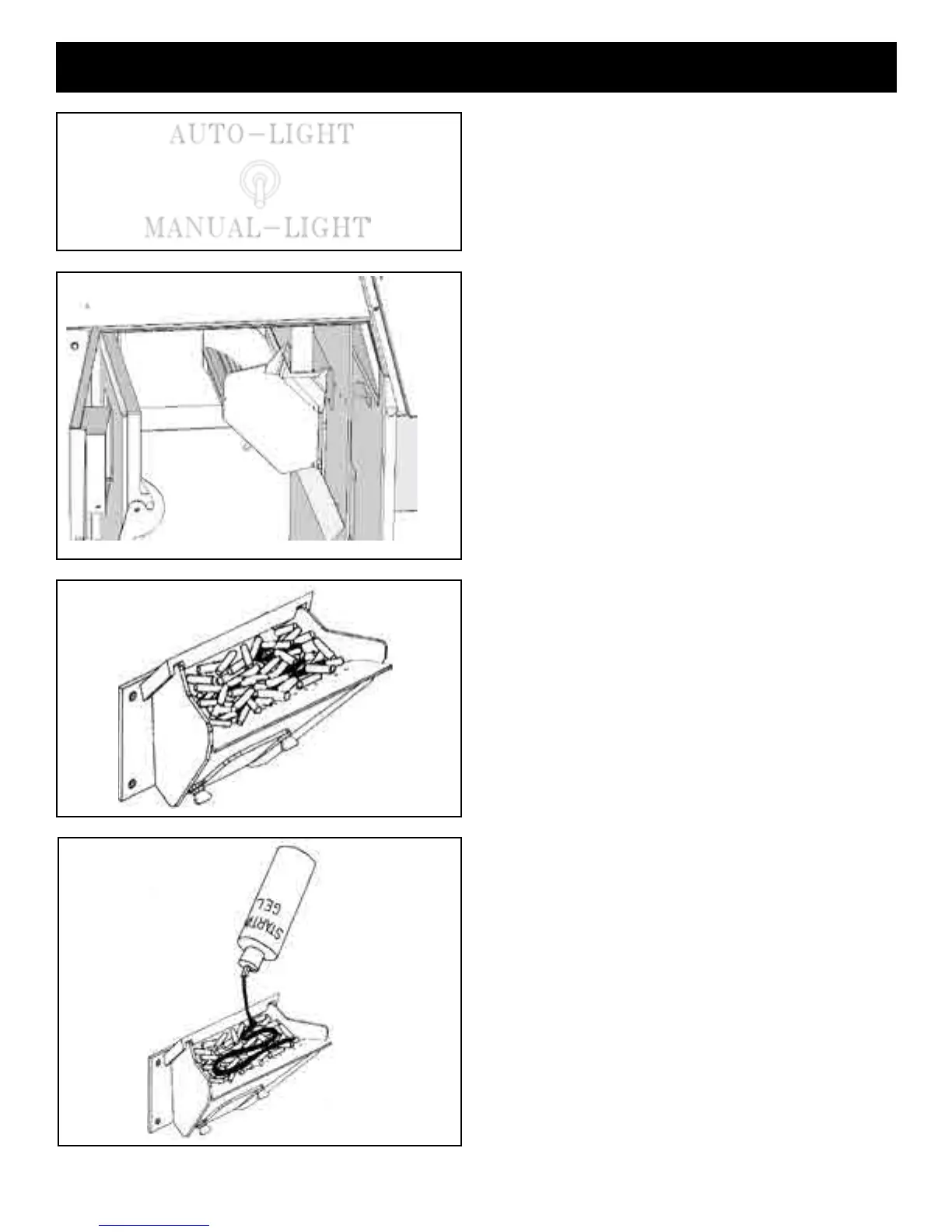

6. Flip the Igniter Switch Down intothe“MANUAL-LIGHT”
position.SeeFig.55.
7. Open inner and outer ash doors as shown in gs. 63,
64, 65, on page 30.
8. Fill burnpot with pellets as shown. See
Fig. 57. Only ll level with the front edge. ( ------- DO
NOT OVERFILL ------- )
9. Have matches or other ignition source ready.
10. Turn Mode Selector to “SERVICE”.This will start
the combustion blower and allow the  ESP to control
the re in relation to the Temp Dial setting 1 through
7.OncethereiswellestablishedtheTempDialcan
remainonanynumbersettingdesired,orchangedtothe
“AUTOMATIC”setting.Ifyouchangeto“AUTOMATIC”
remembertosettheTempDialto“NormalSetting“for
properWallControlcalibration.
NOTE: When  the Switch is set to Manual-Lite in the
“AUTOMATIC” mode, the Wall Control will function as in
Auto-Liteexcepttherewillnotbeallowedtogoout.Itwill
onlybeallowedtogotoaminimumburnratebetweenthe
timestheWallControliscallingforheat.Thisrateisabout1
poundoffuelperhour.
“NEVER USE GASOLINE, GASOLINE-TYPE LANTERN
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR “FRESHEN UP “ A FIRE
IN THIS FURNACE. KEEP ALL SUCH LIQUIDS WELL
AWAY FROM THE FURNACE WHILE IN USE”.
Operation
Fig. 56
Fig. 57
Fig. 55
Fig. 58
