Tones .......................................Beeps
Runaway .........................................1
12V Supply .......................................2
Conicting Switches Footrest .....................3
UP & Footrest DOWN
Conicting Switches Obstruction .................4
UP & Obstruction Down ..........................5
Conicting Switches Footrest .....................6
UP & Obstruction DOWN
Conicting Switches STOP UP & STOP .............7
DOWN switches both Detected
Conicting Switches STOP UP & STOP .............8
DOWN switches both not Detected
Helix Only LIMIT Switch Dectected ................9
INSTALLATION

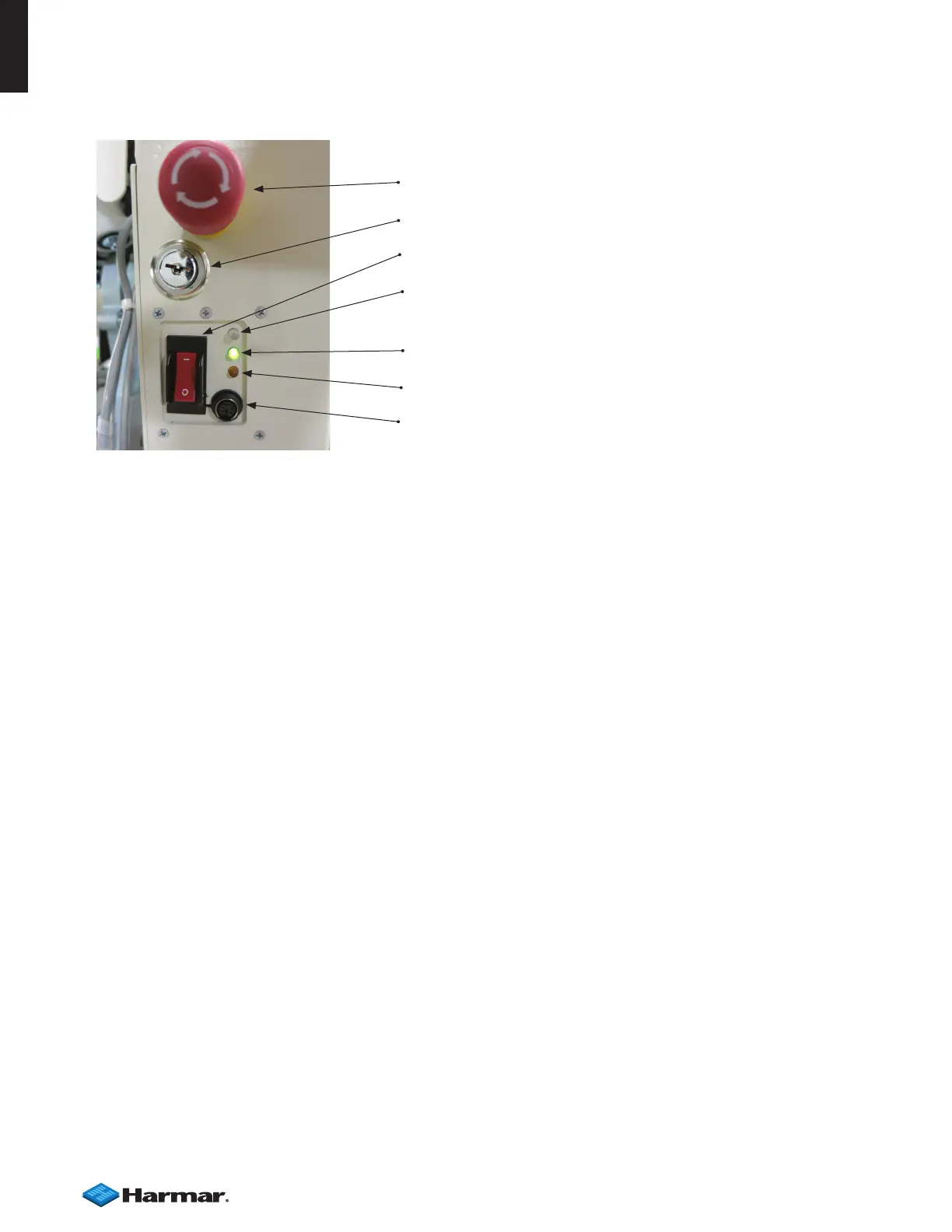

Controls
Emergency Safety
Key Lock (Optional)
Power Switch
Status Light
(Red = Major Fault, Yellow = Obstruction, Green = Ready)
Power On Light
Charging Light
Test/Diagnostic Port
This port enables you to connect a PC to the unit to check
several functions on the unit.
16. Controls
17. Tones with red status light on
INSTALLATION
