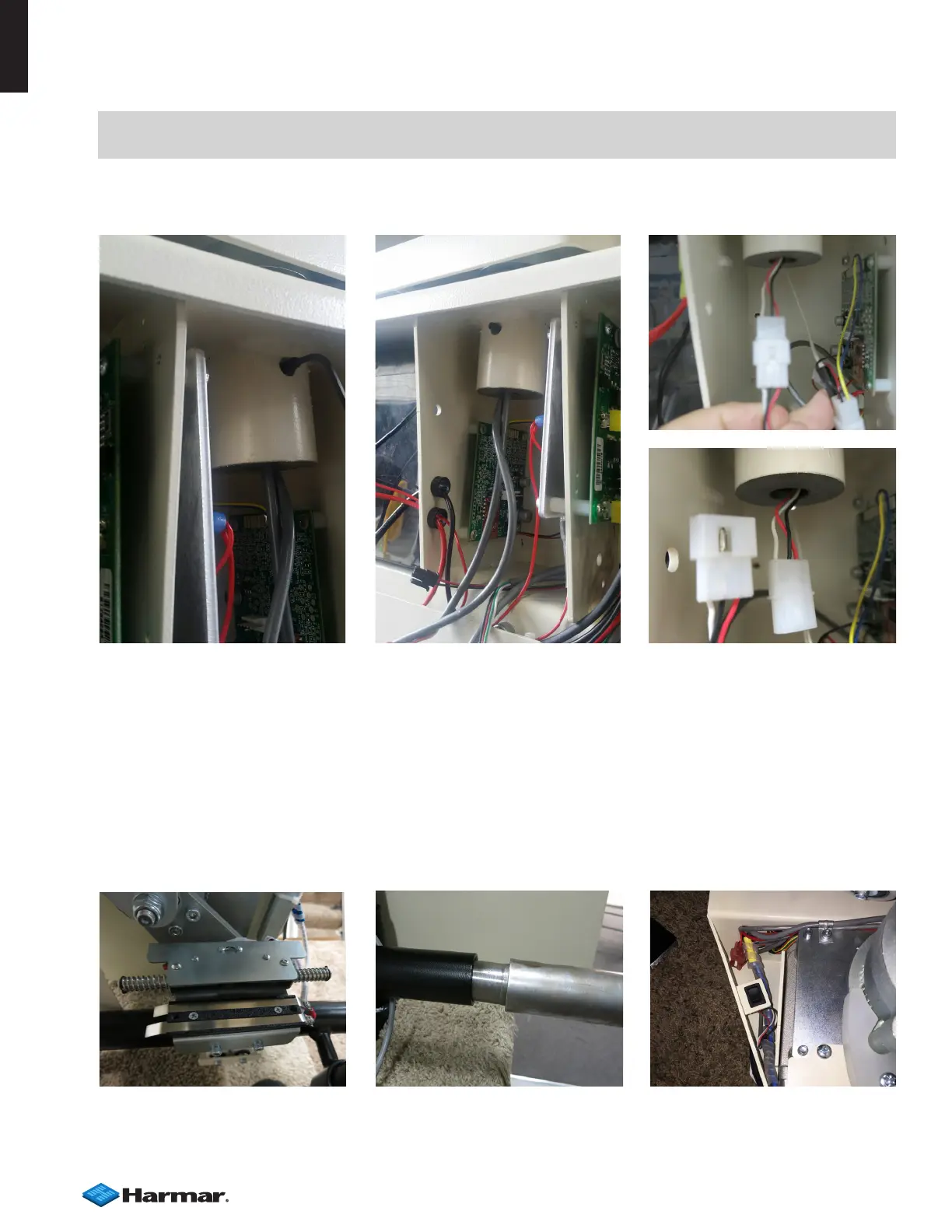

Install set screw, that holds seat from coming up, in collar where the wires for the hand control comes
through. [Figures 8-1, 8-2]. Connect seat rocker switch wires. [Figures 8-3, 8-4]
10. Chassis Load
Roller position-Ensure charging point [Figure 8-5] is on the top.
Using the loading bar, [Figure 8-6] slide on until drive hits the gear rack.
Activate the rocker [Figure 8-7] to drive onto rack, watching the wheels to ensure they go on smoothly.
Ensure the unit goes down the gear rack about 6".
INSTALLATION
NOTE: Lubricate seat post before installing using a white lithium grease.
Figure 8-1 Figure 8-2 Figure 8-3
Figure 8-4
Figure 8-5 Figure 8-6 Figure 8-7
