9. Install Battery

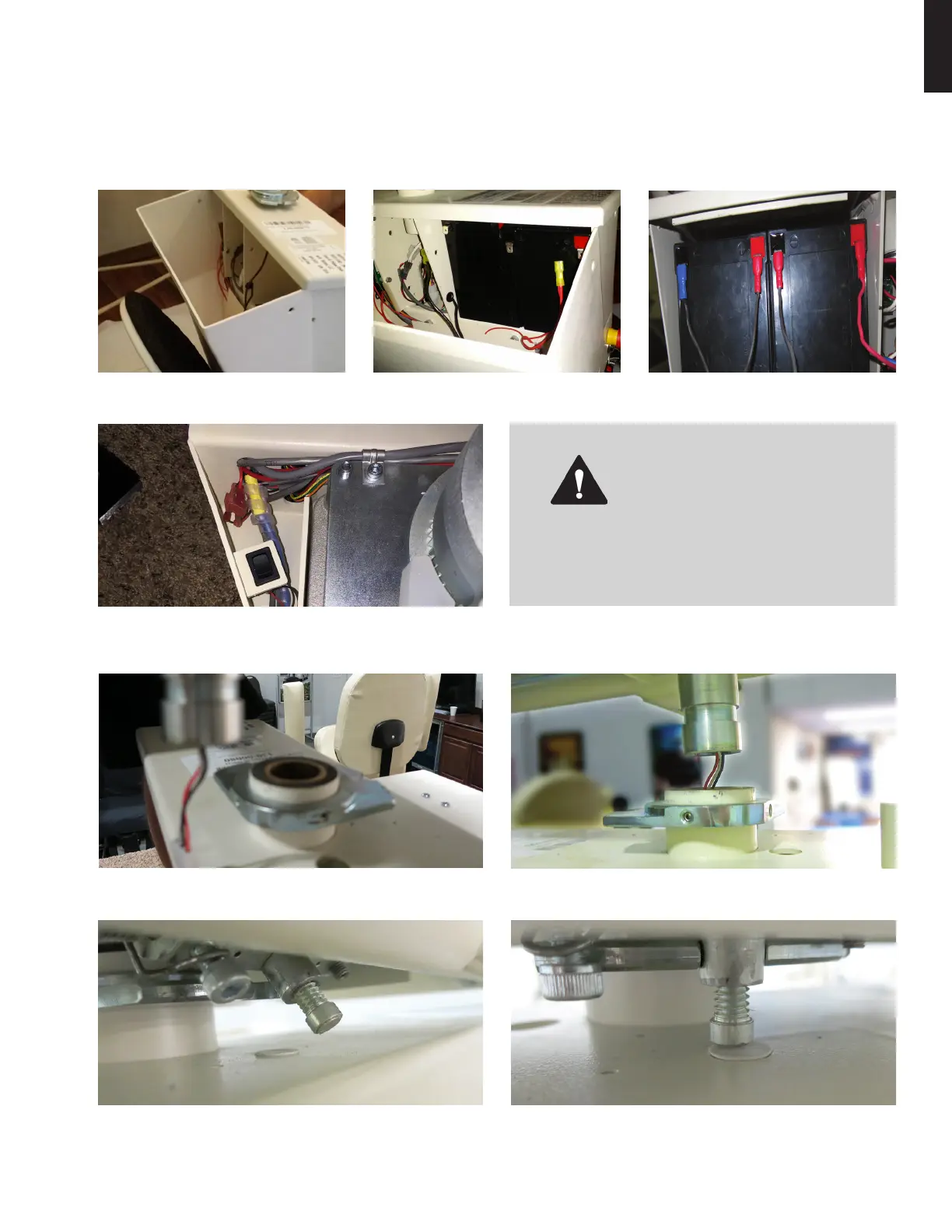

Open front of chassis, by removing screws on shroud. [Figure 7-1].
Install batteries. Connect wire. [Figures 7-2, 7-2].
Remove rear cover to expose loading switch. [Figure 7-4]
Route wire of seat thru seat mounting hole. Install seat [Figures 7-5, 7-6].
Observe magnet switch for seat safety. [Figures 7-7, 7-8]
INSTALLATION
CAUTION
Use Caution when handling
the battery.
Figure 7-1 Figure 7-2 Figure 7-3
Figure 7-4
Figure 7-5
Figure 7-6
Figure 7-7 Figure 7-8
