TEC0017 23Jan2015 P/N: 630-00027-01 revC
SL400 • Vantage Stair Lift Installation Manual
17
Vantage Stair Lift

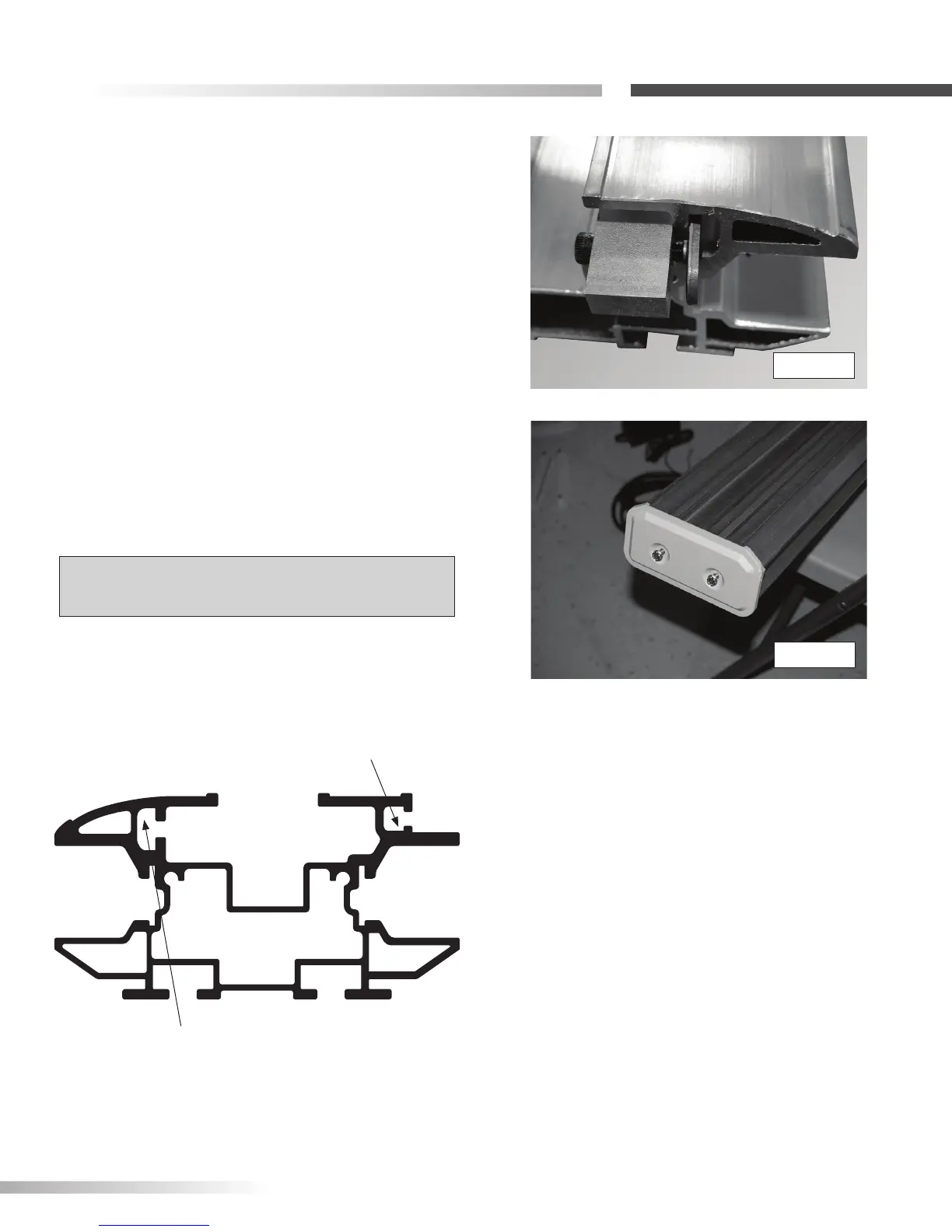

PREPARING THE RAIL
NOTE: The installed rail can set directly on the
stair nosing.
Figure 17-2
LIMIT CAM FASTENER CHANNEL
GEAR RACK FASTENER CHANNEL
10. Insert the end stop into the gear rack channel at
the lower end of the rail [Figure 17-1]. The nal position
of the end stop will be determined after the gear rack
has been adjusted.
Figure 17-1
11. Install an end cap onto the end of the lower rail
before placing the lower rail onto the staircase. Secure
the end cap with the provided screws. [Figure 17-2]
