TEC0017 23Jan2015 P/N: 630-00027-01 revC
SL400 • Vantage Stair Lift Installation Manual
19
Vantage Stair Lift
ADJUSTING THE GEAR RACK
q ALL GEAR RACK MOUNTING SCREWS ARE SECURE
q TOP AND BOTTOM GEAR RACK SPACING IS CORRECT

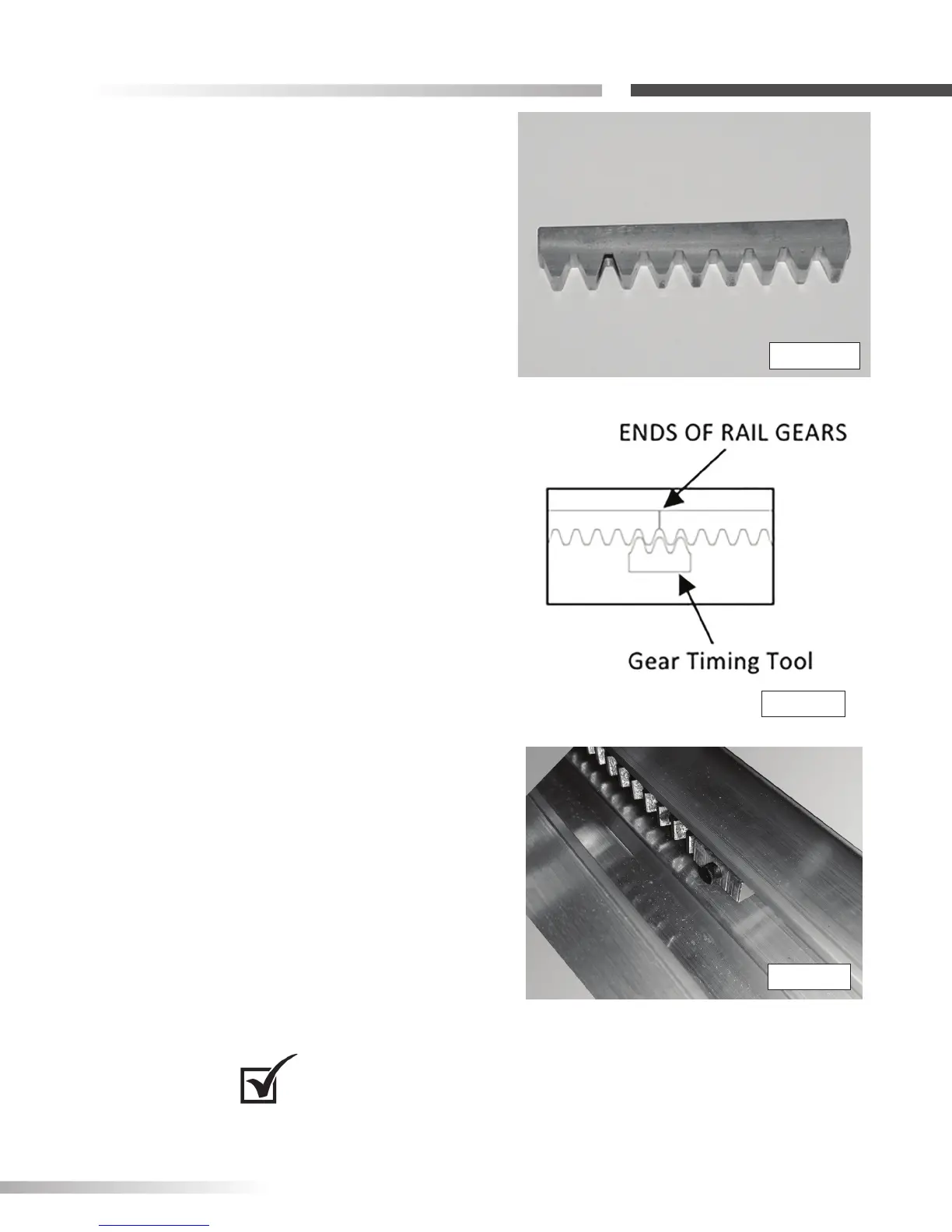

Figure 19-1
Figure 19-2
4. Tighten all screws in the gear rack
5. After securing the lower gear rack, slide the next
gear rack against the lower gear rack. Bridge the
mating ends of each gear with the timing tool.
6. With the timing tool engaged in teeth of both gear
sections, tighten the upper gear rack to the rail.
[Figure 19-1 and 19-2]
7. Repeat with remaining gear rack pieces.
8. Retighten all the splice bars screws.
9. Move the end stop to the end of the gear rack and
tighten in place with a 9/64" hex wrench. [Figure 19-3]
Figure 19-3
