INSTALLING THE RAIL

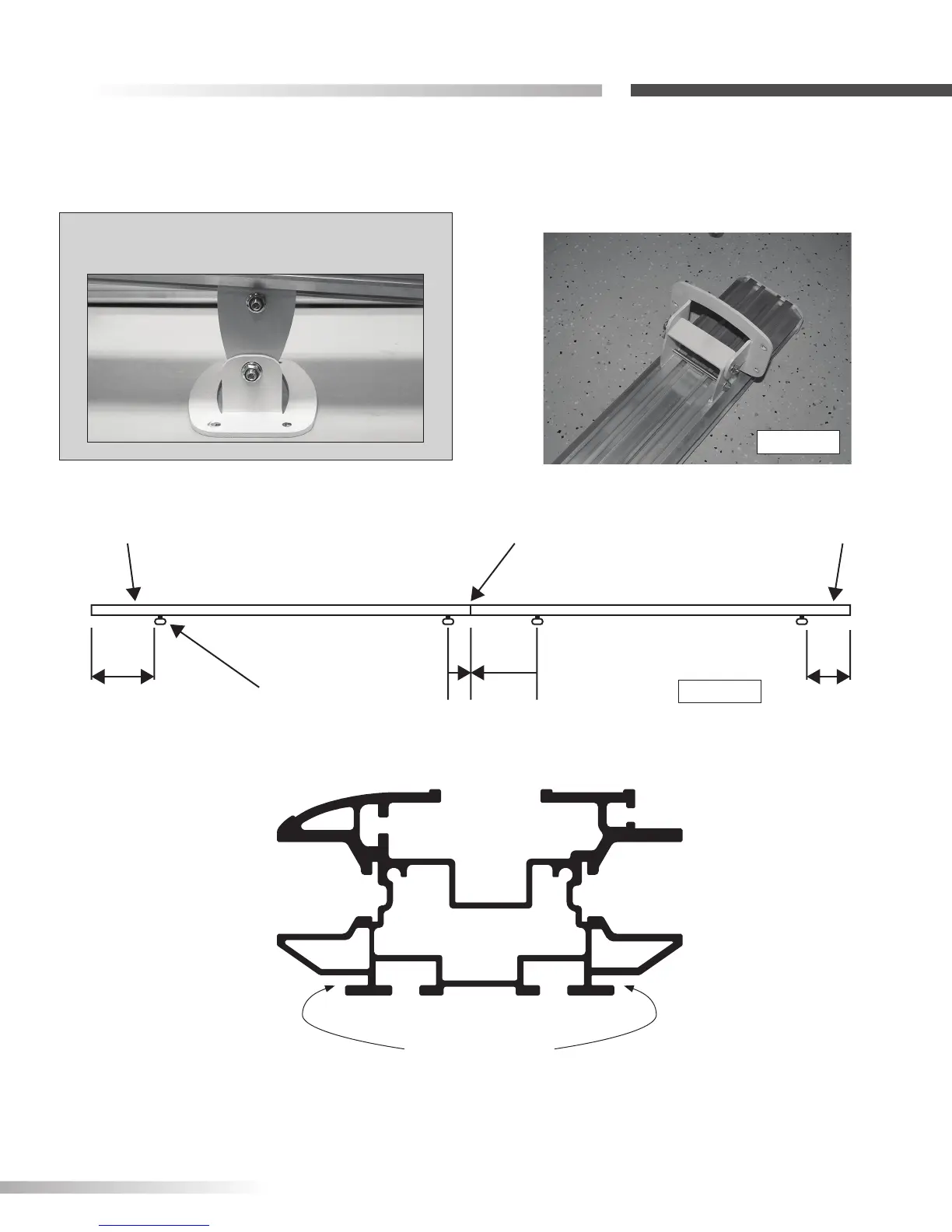

5. Slide rail mounting brackets onto rail to the
approximate locations shown [Figure 15-1and 15-2].
Exact postions of brackets will be determined later.
NOTE: The nut side of bracket goes toward the
wall side.
BOTTOM SECTION SPLICE JOINT TOP SECTION
RAIL BRACKETS
17”
4” 12”
9”
Figure 15-2
Figure 15-1
RAIL BRACKET CHANNELS
