Vantage Stair Lift

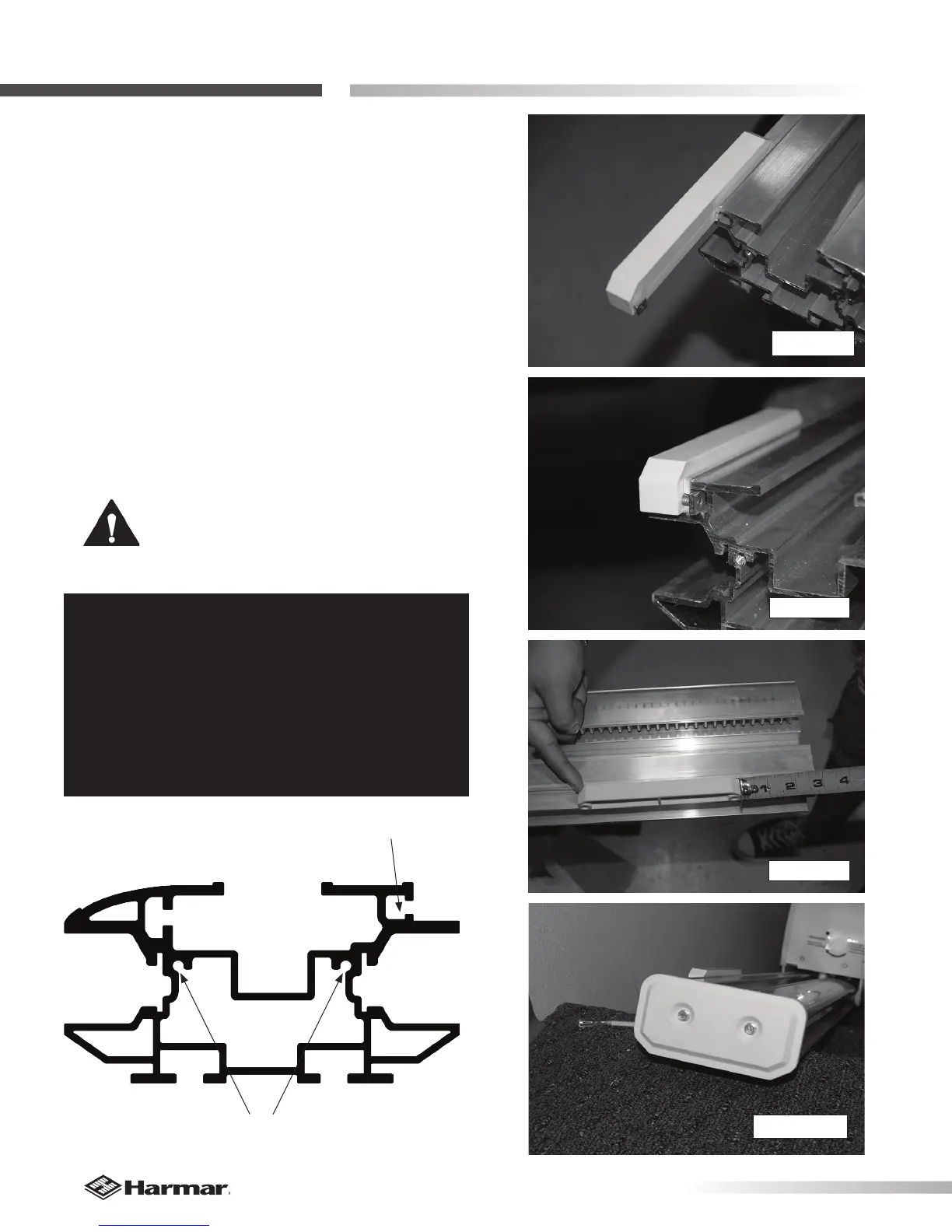

UPPER LIMIT CAM INSTALLATION
1. Gather the extra limit cam you assembled from
page 16.
2. Insert the upper limit cam into the end of the rail.
[Figure 26-1 and 26-2]
3. Position the end of the cam at 2-3/4” from the top
of the rail. Secure the limit cams with (2) 10-24 screws
and square nuts (provided). [Figure 26-3]
4. Install the rail end cap onto the top end of the rail.
The wire with the connector should be routed out of
the end cap on the wall side if charging from the top.
Otherwise, excess wire can be tucked into the inside
of the rail. [Figure 26-4]
Figure 26-4
Figure 26-3
Figure 26-2
Figure 26-1
INSTALLING THE UPPER LIMIT CAM
IMPORTANT!
LUBRICATE THE GEAR RACK.
A tube of lubricant is provided in the chassis box.
Lightly lubricate the entire gear rack by squeezing
the tube onto the gear rack and then your nger or
a paper towel to push it into the gear teeth
LIMIT CAM CHANNEL
END CAP SCREW CHANNELS
CAUTION
Align end cap screw holes precisely.
Do not overtighten.
