Temperature Probe Installation
THE TEMPERATURE PROBE MUST BE
INSTERTED INTO THE PROBE POCKET, OR DRY
POCKET OF THE CYLINDER.
The temperature probe is used to monitor the
temperature of the cylinder. The probe cable can
extend to the length of 10 meters.
If there is no pocket available to use, it shall be
attached 1/3
rd
position from the bottom of cylinder.
To ensure a reliable and solid contact between the
probe and cylinder side, thermal paste should be
used.
To make sure the reliable and solid contact
between the probe and cylinder side, the
thermal paste shall be used.

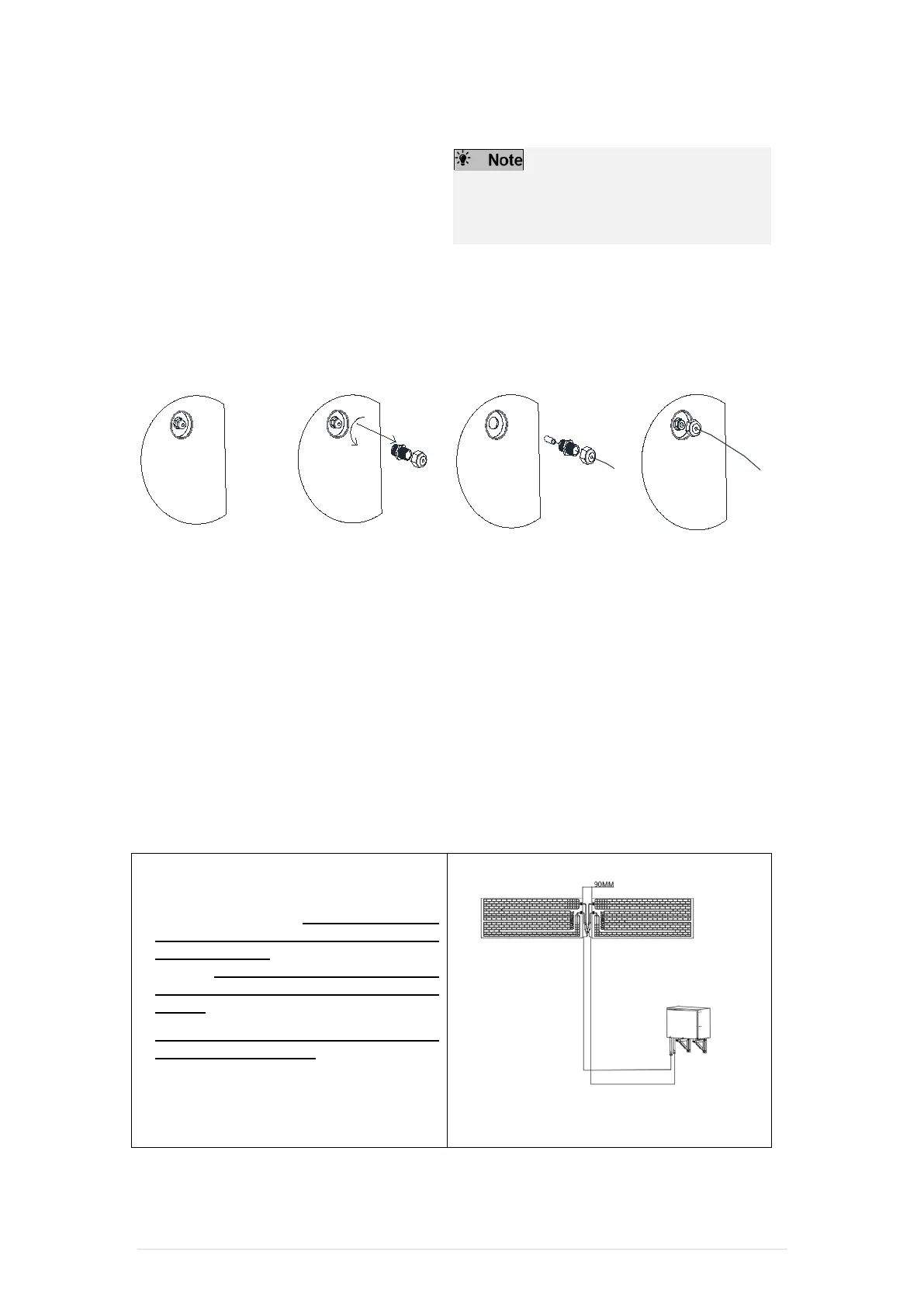

Steps
1. Locate the position of sensor pocket on the cylinder.
2. Remove the sensor pocket cover.
3. Pass the temperature probe through the cover.
4. Push the temperature probe as far as possible into the cylinder pocket, and then tighten the cover.
8 Thermopod Panel Installation
Position between Thermopod Panel and Thermopod unit
Choosing the Thermopod Panel location
• Select a location where the standard pipe-run
distance between Thermopodand Thermopod
panel is 10 meters, and minimum is not less than
5 meters. If the pipe-run height length is more
than 4 meters, please install “Return Bend” on
the pipe.
• ALWAYS: The shorter the pipe-
the better the performance.
distance: 10 meters,
Min. 5 meters
Height-length: more
than 4 meters with
“Return Bend”
Thermopod - Installation Manual 14 | Page
