6 Thermopod Installation
Selecting a proper location to install the Unit:
As the first step, an investigation on the target installation property will be necessary. It is important to locate a place
to install the Unit as close to the cylinder and the panels as possible.
Please refer to “How to Choose Installation Location for Thermopod” here after & “Guarantee Terms & Condition” in
item 16 in this manual.

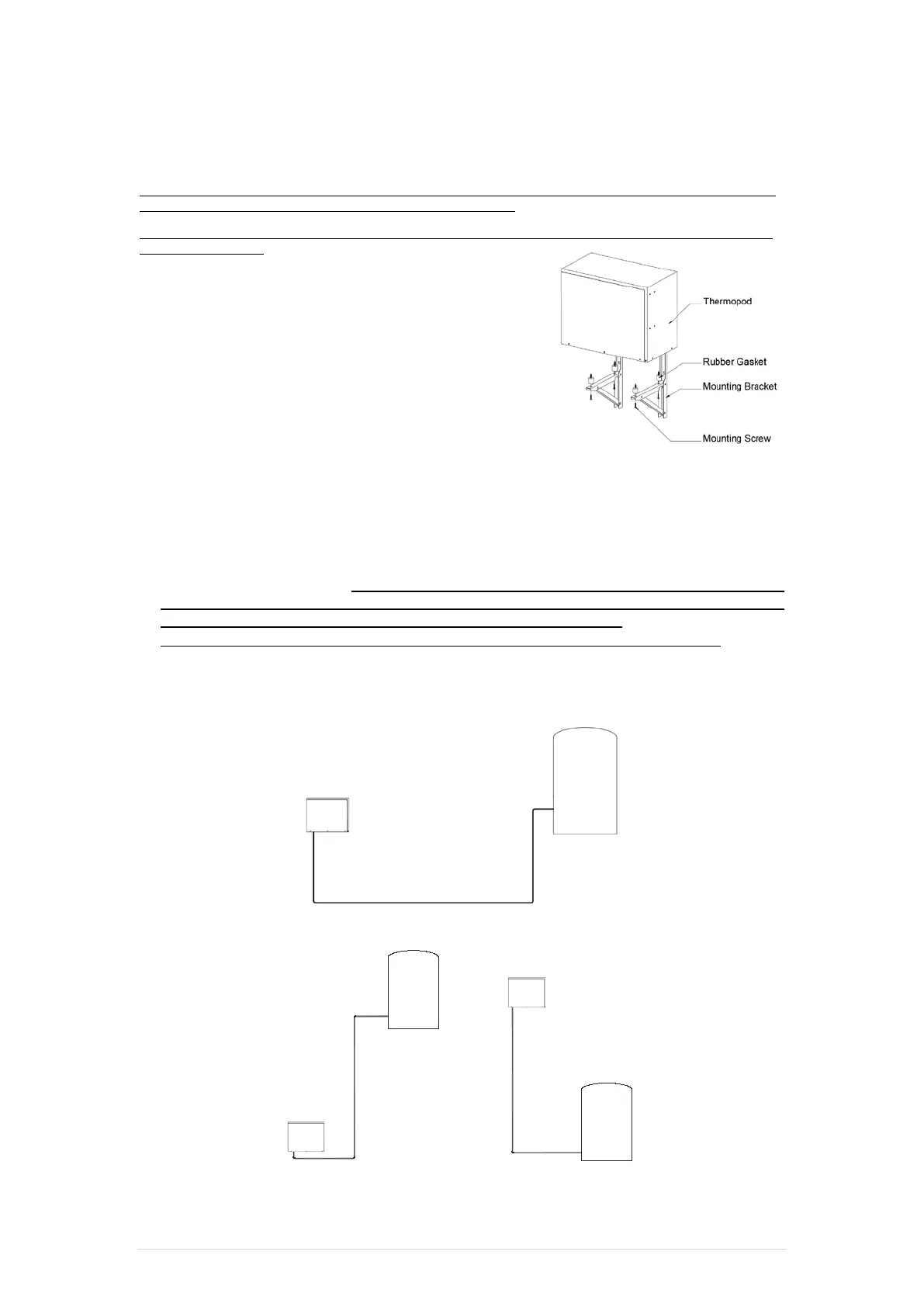

For installation, the Thermopod units will come with the following parts:
********Please install on a solid wall ********
How to Choose Installation Location for Thermopod
• Do not install the Thermopod in outdoor location as it is designed for indoor use only. (It is not waterproof.)
• Avoid locations where the unit is exposed to direct sunlight or other sources of heat.
• Select a location where has easy wiring access to the power souce.
• Avoid locations where combustible gases may be leak, produced, flowed, or accumulated.
• Avoid areas with corrosive gases and strong electromagnetic waves.
• Select a location that can bear the weight and vibration of the unit.
• Select a location where makes the water pipe between Thermopod and and water cylinder as short as
possible. The max pipe length is 5 meters. The longest Horizontal distance from Thermopod to cylinder is
3 metes; the longest vertical distance from Thermopod to cylinder is 2 meters.
• ALWAYS: Keep pipe to a minmum length. The shorter the pipe is the better the performance is.
The unit must be installed on horizontal position and on a solid wall if possible.
Horizontal Distance between Unit and Cylinder:
Vertical Distance between Unit and Cylinder:
Horizontal Distance
Max. 3 meters
Max. 2 meters
Thermopod - Installation Manual 8 | Page
