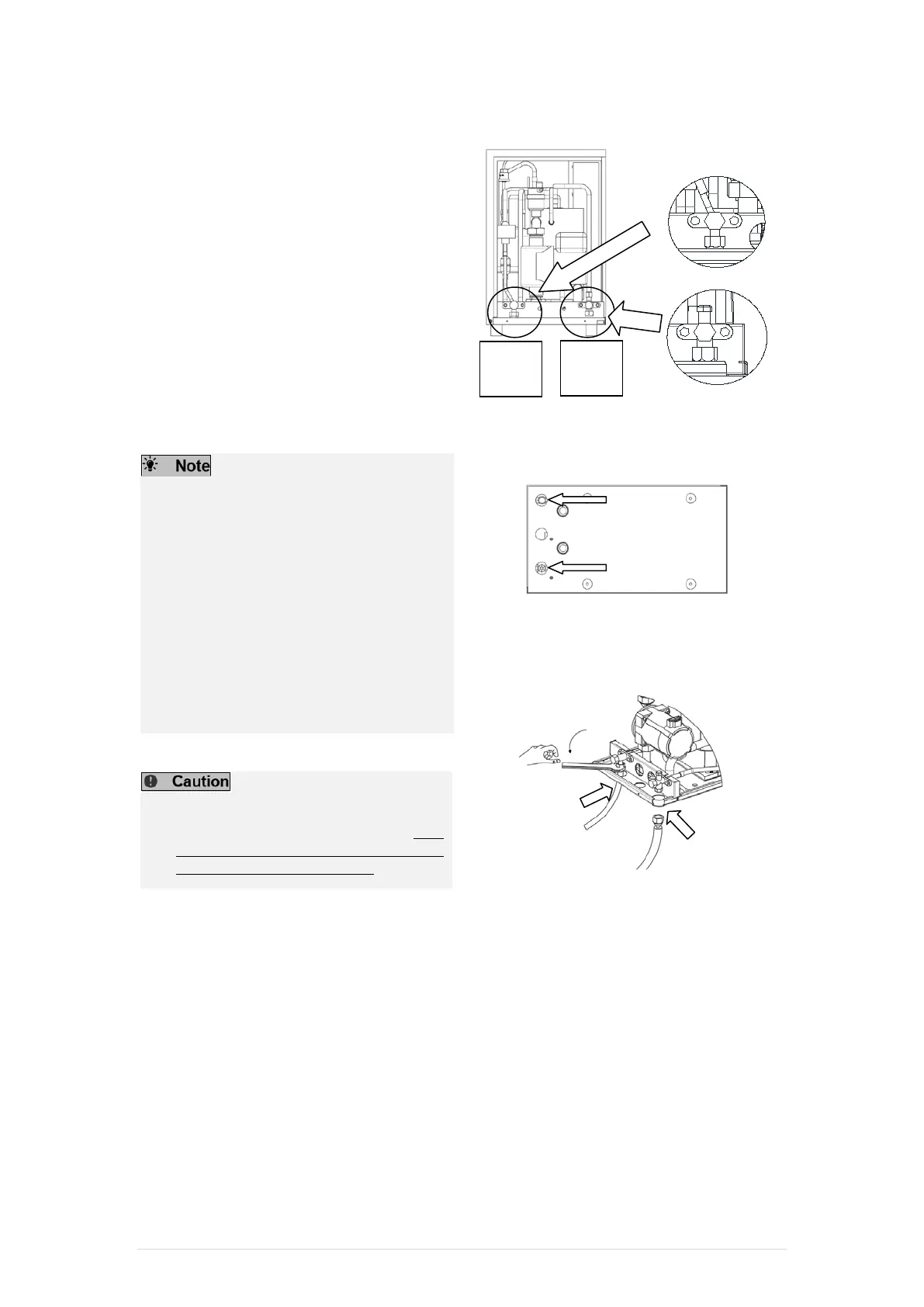

Refrigerant Pipe Connection
Gas Line and Liquid Line shall be found at the bottom of
the Thermopod.
In the package, there are two refrigeration pipes, 1/4"
and 3/8” refrigeration pipes, which are used for the
connections with 1/4" Inlet Line connection and 3/8”
Outlet Line Connection.
By using the refrigeration pipes, Thermopod and
Thermopod panel shall be connected.
Step 1: Identify and link the corresponding refrigeration
pipes to the corresponding line connections nearby
Thermopod panel.
Step 2: identify and link the corresponding refrigeration
pipes to the corresponding connections at the bottom of
the Thermopod.
Removing the protective caps from the ends of
both line connections.
Tightening and twisting the nut in between Line
and connection by spanner.
The length of two refrigeration pipes must be the
same.
The maximum pipe-run distance between
Thermopod and Thermopod panel is 15 meters,
while shall not be less than 5 meters.
All refrigeration pipe-run must be equal in
distance.
All refrigeration work shall be installed by an
accredited installer according to EN378. If the
installation is not conducted by an accredited
installer, the warranty will be invalid.
9 Thermopod Testing
Leakage test for Pipe Connection
Once all connections between Thermopod and Thermopod Panels have been done, the installer has to check for the
leakage.
Step 1: Cover all connections with the soap foam and see if there is any leakage.
Step 2: A load of nitrogen at a pressure of 10 bar shall be injected via pressure tap of 3-way valve.
Step 3: Hold and monitor the pressure change for 30 minutes, while check whether any of all connections has
leakage.
Outlet
Inlet
Thermopod - Installation Manual 17 | Page
