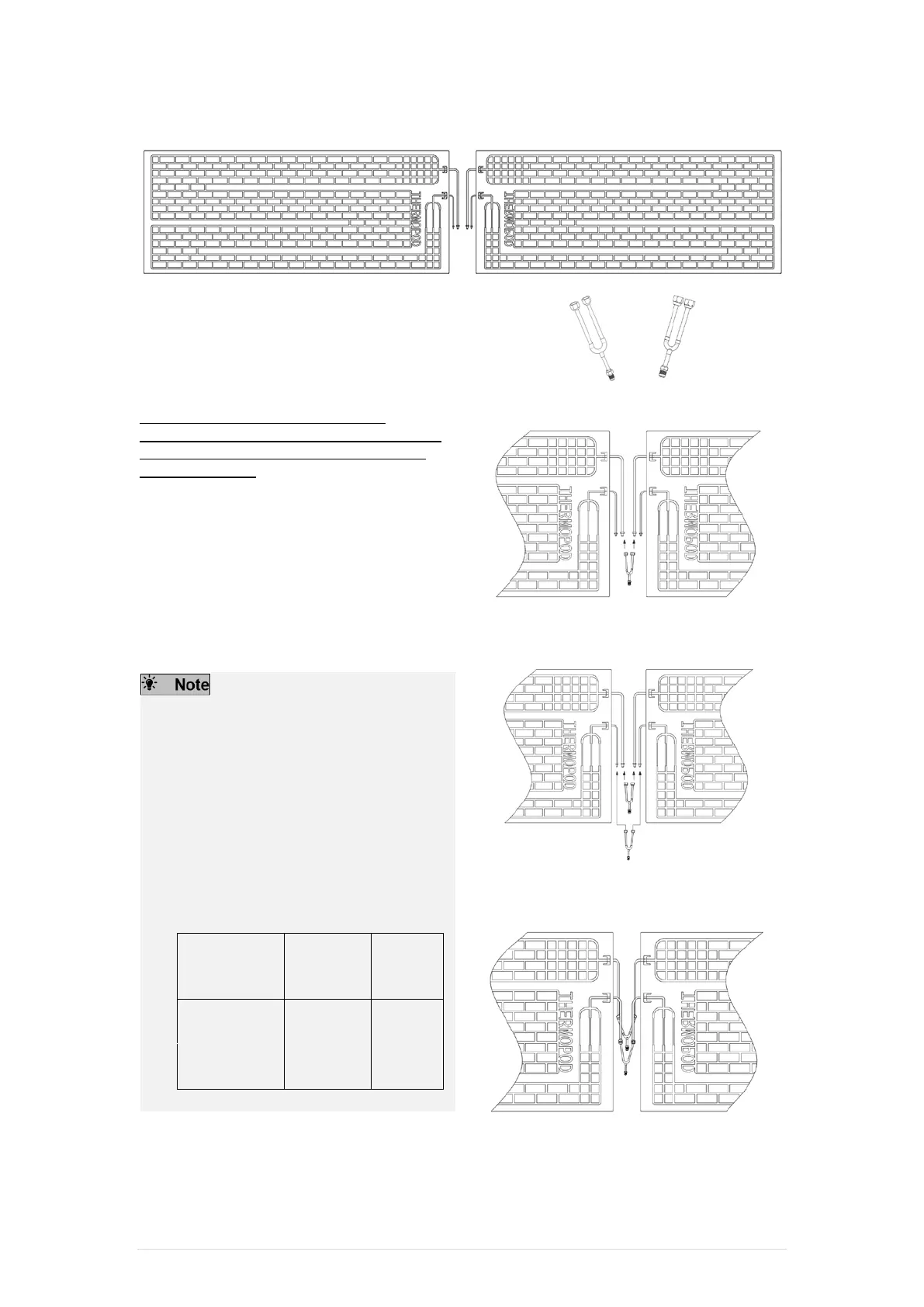

Panel Pipe Connection
A – Gas Line (Outlet) B – Liquid Line (Inlet)
Panels are supplied with stoppers in the pipe
connections. It is recommended to leave these in place
until the connection is made to avoid any dirt or dust
entering the opening.
There are two connections on each panel, Gas Line –
outlet and Liquid Line – inlet, which are linked with 1/4”
Inlet Line Connection and 3/8” Outlet Line Connection.
Step 1: Gas Line outlet A linked to 3/8” Outlet Line
connection
Step 2: Liquid Line inlet B linked to 1/4” Inlet Line
connection
When the caps in the connection of the
Thermopod panel are removed, there shall be
nitrogen from the holes. This is normal to have
“gas-out” sound as it means there is no leakage
or damage on the Thermopod panel during
transportation.
Removing the protective caps from the ends of
both line connections.
Tightening and twisting the nut in between Line
and connection by spanner according to the
values below,
Tube Diameter
(inches)
Applied
Binary (Nm)
Wrench
n°
1/4” 5 ~ 8 19
3/8” 12 ~ 15 21
Step 1
Step 2
Finished
A
B
1/4”
3/8”
