Harris Micromax - Front Panel LCD Display Menu Description

Harris Micromax FM Exciter Operation REV1 01/12/2007
3-5
WARNING: Disconnect primary power prior to servicing
3.6 Front panel LCD display menu description
Front panel LCD display displays all operating parameters of the Micromax FM Exciter. This menu can

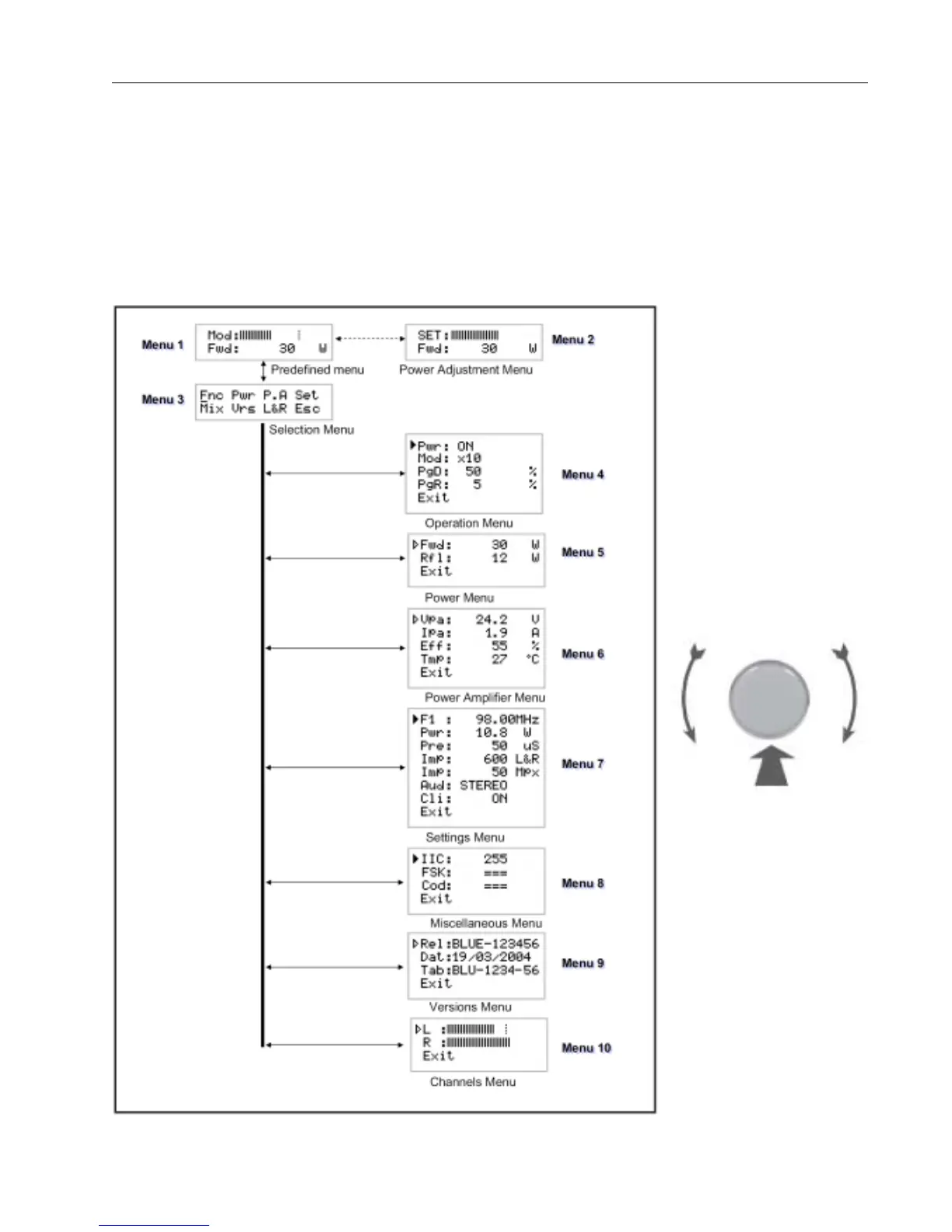

be navigated using the knob located next to the LCD display. Below is a map of the menus available on the
display.
Descriptions of the power adjustment (menu 2) and frequency setting (menu 7) menus are explained in
sections 3.3 and 3.4.
