HARTING Han M23 - Page 11

51
11
09 15 100 0305
1)
09 15 100 0306
1)
09 15 100 0307
1)
09 15 100 0308
1)

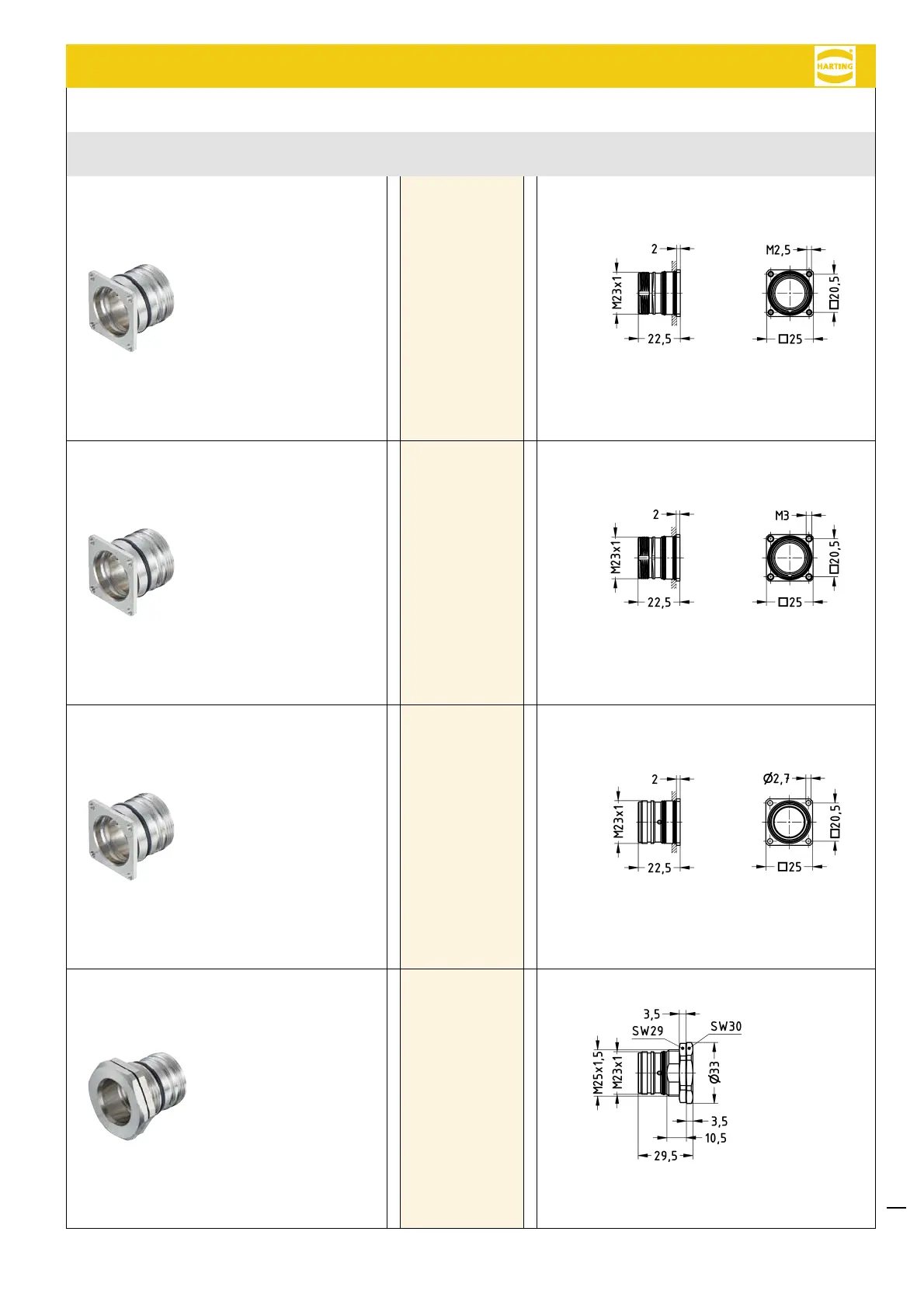

Bulkhead mounted housing,
back wall assembly,
O-ring seal (4 x M2.5)
Bulkhead mounted housing,
back wall assembly,
O-ring seal (4 x M3)
Bulkhead mounted housing,
back wall assembly,
O-ring seal (4 x 2.7 mm)
Bulkhead mounted housing,
back wall assembly,
O-ring seal (M25)
Drawing
Identification Part number Dimensions, in mm
Panel cut out Ø 20
Panel cut out Ø 20
Panel cut out Ø 20
Panel cut out Ø PG 13.5
1)
Not suitable for rapid locking
Han
®
M23 Signal Bulkhead mounted housing
