HARTING Han M23 - Page 46

51
46
①
②
③
④
X
✔
✔
* Refer to operating instructions of
crimping tool 09 99 000 0896.
Han
®

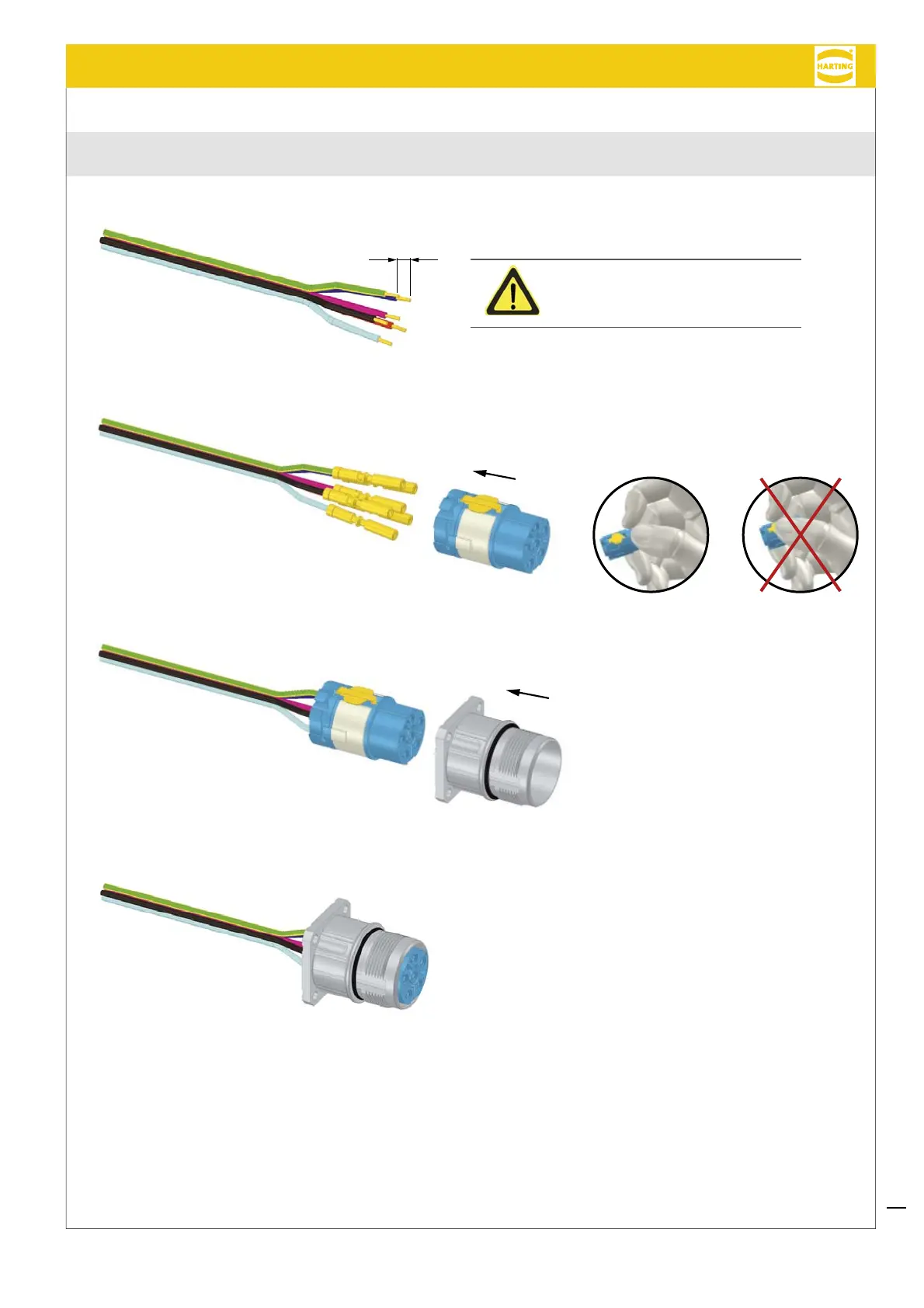

M23 Power, bulkhead mounted housing
Crimping*
Click!
2 x Click!
Stripping length X
1 mm contacts: x = 4 mm
2 mm contacts: x = 7 mm
Do not touch the white clip!
Han
®
M23 Power / Hybrid Assembly instructions
