HARTING Han M23 - Page 48

51
48
①
②
③
④⑤
⑥
⑦
Han
®

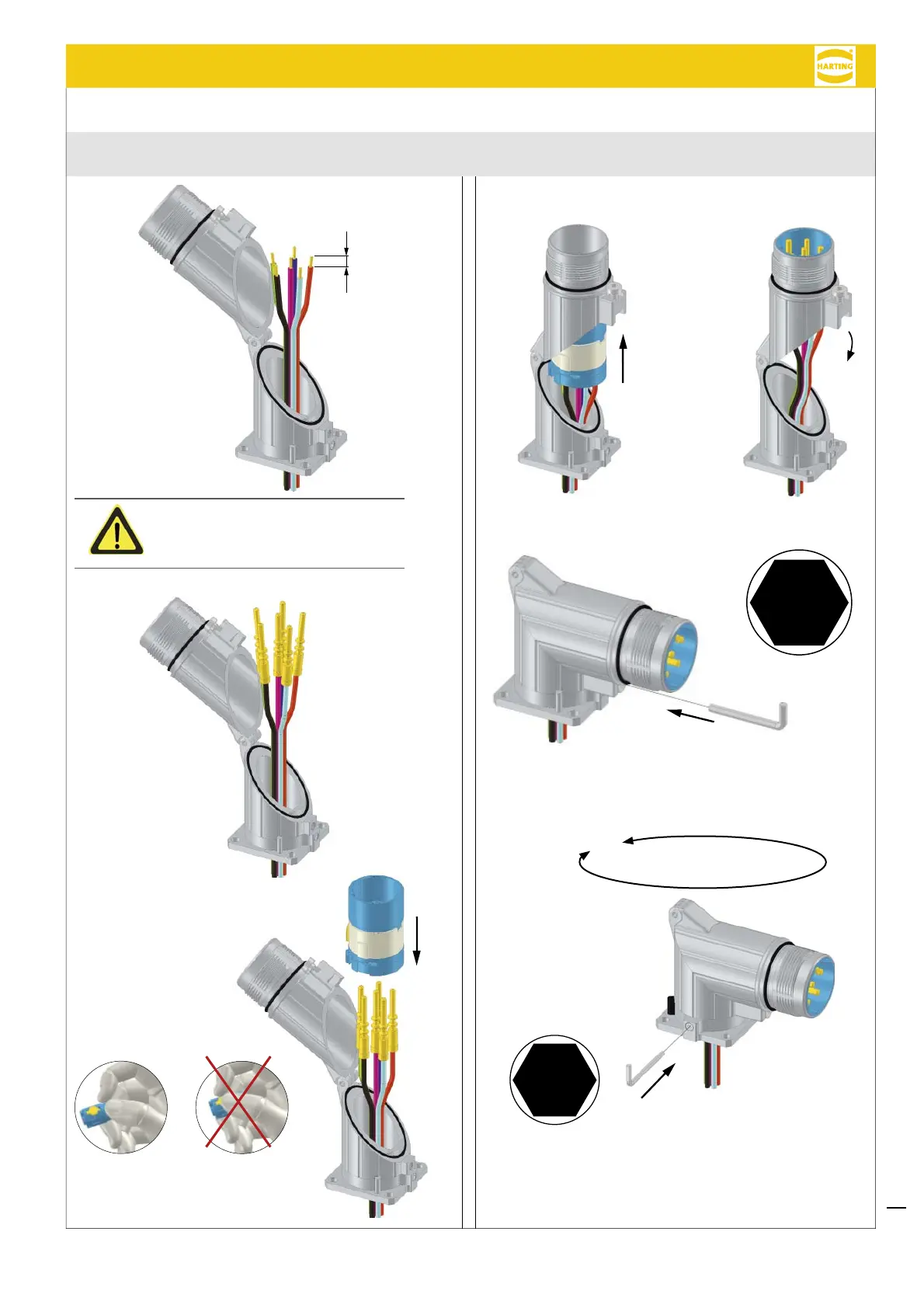

M23 Power, bulkhead mounted housing
X
✔
300°
Crimping*
* Refer to operating
instructions of
crimping tool
09 99 000 0896 or
09 99 000 0890.
Stripping length X
1 mm contacts: x = 4 mm
2 mm contacts: x = 7 mm
Do not touch the white clip!
2 x Click!
A/F 1.5
A/F 2
Han
®
M23 Power / Hybrid Assembly instructions
