HARTING Han M23 - Page 49

51
49
①
②
④
⑤
max. 40 mm

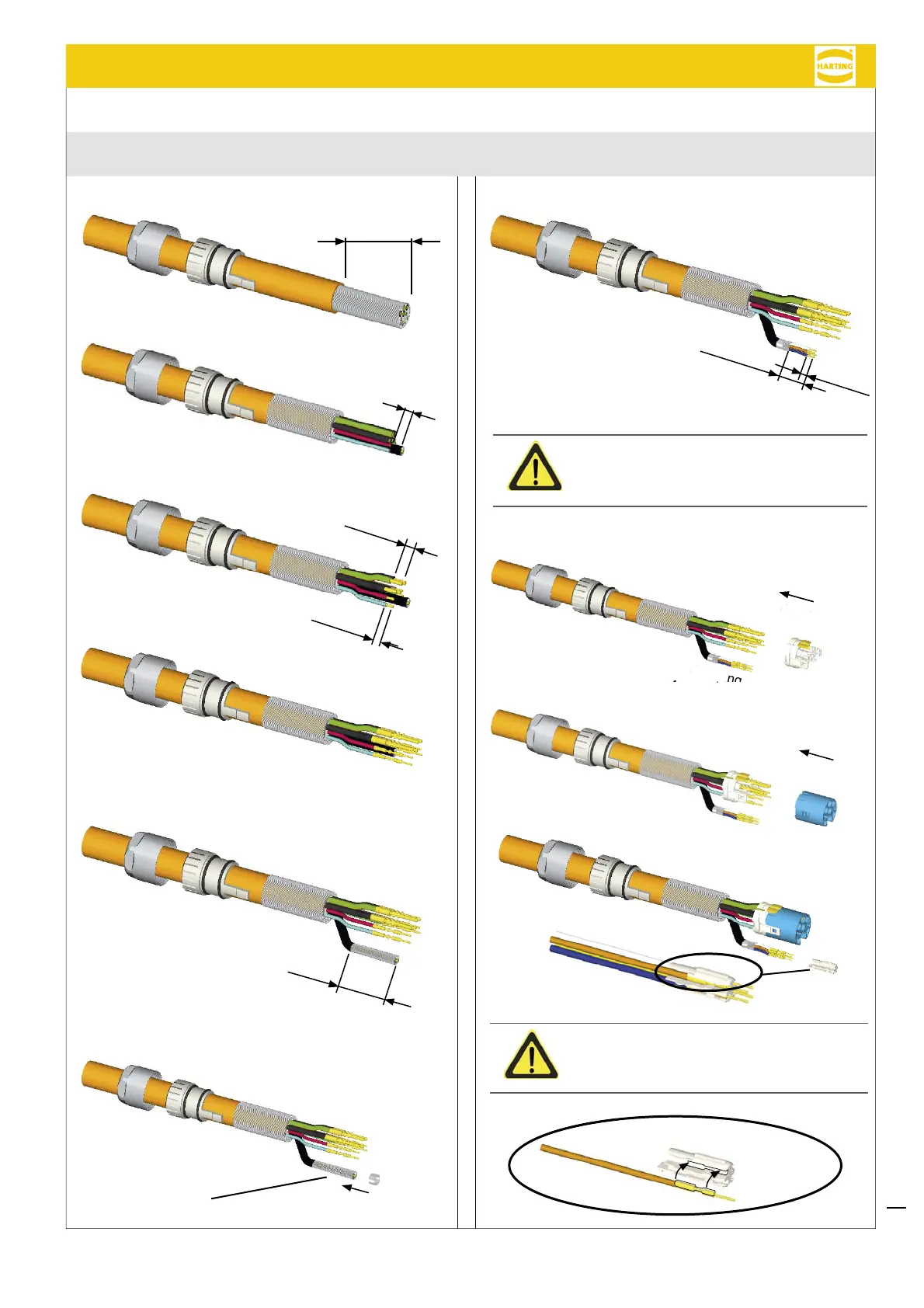

Han
®
M23 Hybrid
Crimping 4 x power*
max. 5 mm
Crimping 4 x signal**
Different shielding length on female side
Strip the shieIding of the Ethernet wires on the
female mating side by maximum 12 mm!
③
4 x power
max. 5 mm
4 x signal
max. 7 mm
max.16 mm
4 x Ethernet
max. 4 mm
max. 30 mm
Click!
⑦
⑧
⑨
⑩
Click!
Crimping
4 x Ethernet***
Coding of Ethernet insert
The coding of the insert must be in line with the
direction of the blue insulaton body.
Click!
Strip the shielding of the Ethernet wires (male side).
Slide the sleeve onto the shielding of the Ethernet
wires.
Strip the insulation wrapped around the Ethernet wires.
⑥
Shielding
* Crimping tool 09 99 000 0896 ** Crimping tool 09 99 000 0890 *** Crimping tool 09 99 000 0890 with locator 09 99 000 0961
Click!
Crimping
4
Han
®
M23 Power / Hybrid Assembly instructions
