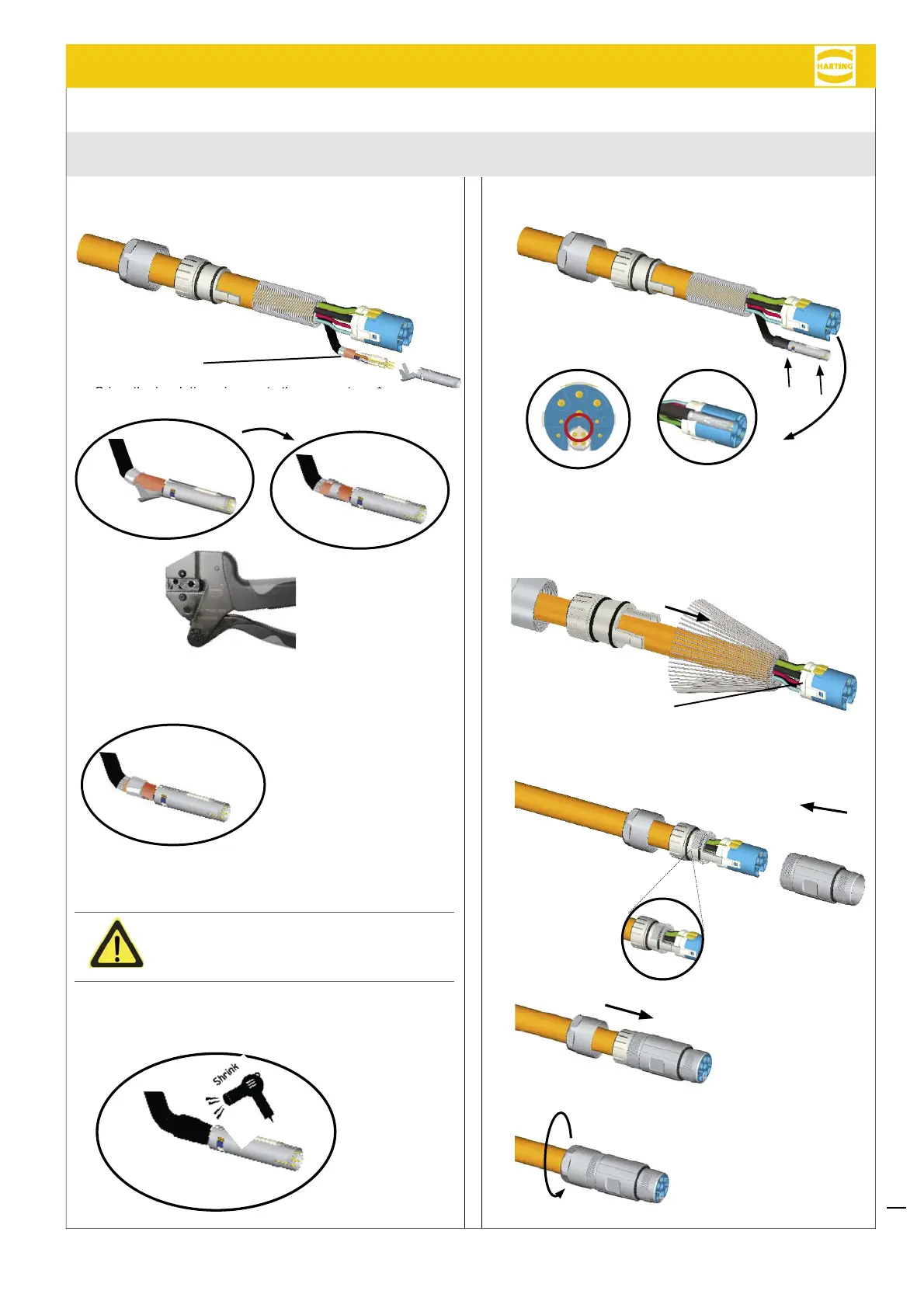

Crimp the insulation wings onto the copper tape.*
Crimp the shielding sleeve, overlapping the insulation crimp.**
✂
✔
✔
Han
®
M23 Hybrid
C i th i l ti i t th t *
Overlapping area
Shielding and copper tape must overlap the
crimping zone at least by 0.5 mm!
Wrap a copper tape around the shielding of the Ethernet
wires, spanning an outer diameter of 5.0 mm.
Assemble the Ethernet contacts into the blue insert.
Push the latching hooks of the cable gland body through the
shielding and let them snap into place on the insert (➾ white
ring slot).
Strip the shielding between the fi rst and the second O-ring!
ⓐ
ⓑ
Shrink the shrink tube onto the cable, so that it covers the
entire copper tape!
* Use crimp profi le ① of crimp tool 09 99 000 0898 (refer to picture).
** Use crimp profi le ② of crimp tool 09 99 000 0898 (refer to picture).
ⓒ
Click!
⑪
⑫
⑬
⑭
⑮
⑯
① ②
① ②
Copper tape
Ring slot
