Page 28
BCS6000C-9
APPENDIX G: STACK THERMOCOUPLE INSTALLATION
Install a Hauck stack temperature thermocouple in the dryer exhaust duct to sense exhaust gas
temperatures as shown in Figure 1.

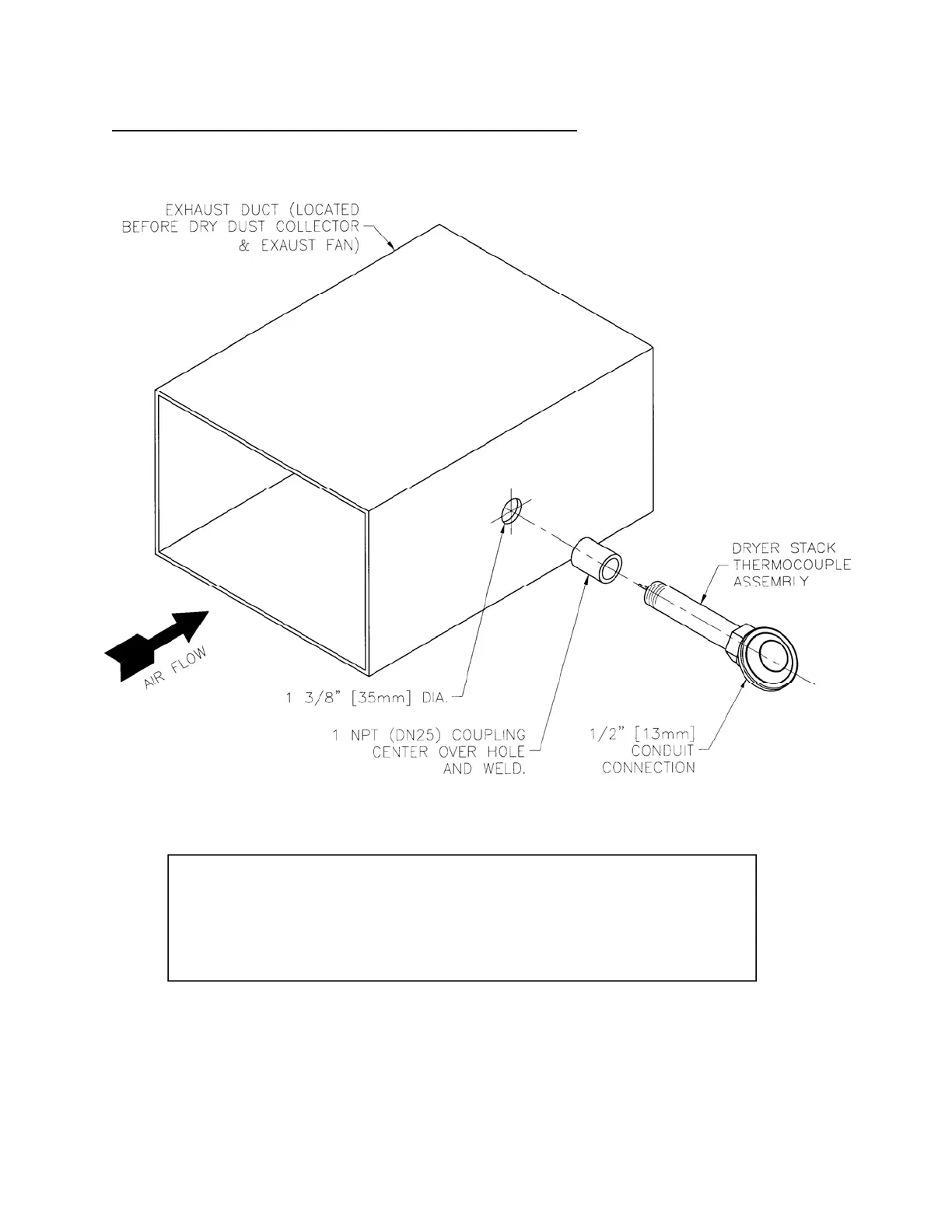

Figure 1. Installation of Thermocouple in Exhaust Duct
NOTE
Thermocouple cables must be separated from AC power and control
wiring to avoid interference and nuisance shutdowns. Observe polarity
when making thermocouple connections. Regardless of thermocouple
type, the red wire is always negative.
X7617
(NOT TO SCALE)
