APPENDIX F: EXHAUST FAN FLOW LIMIT SWITCH INSTALLATION
Mount the exhaust fan flow switch in the dryer exhaust duct as shown in Figure 1.

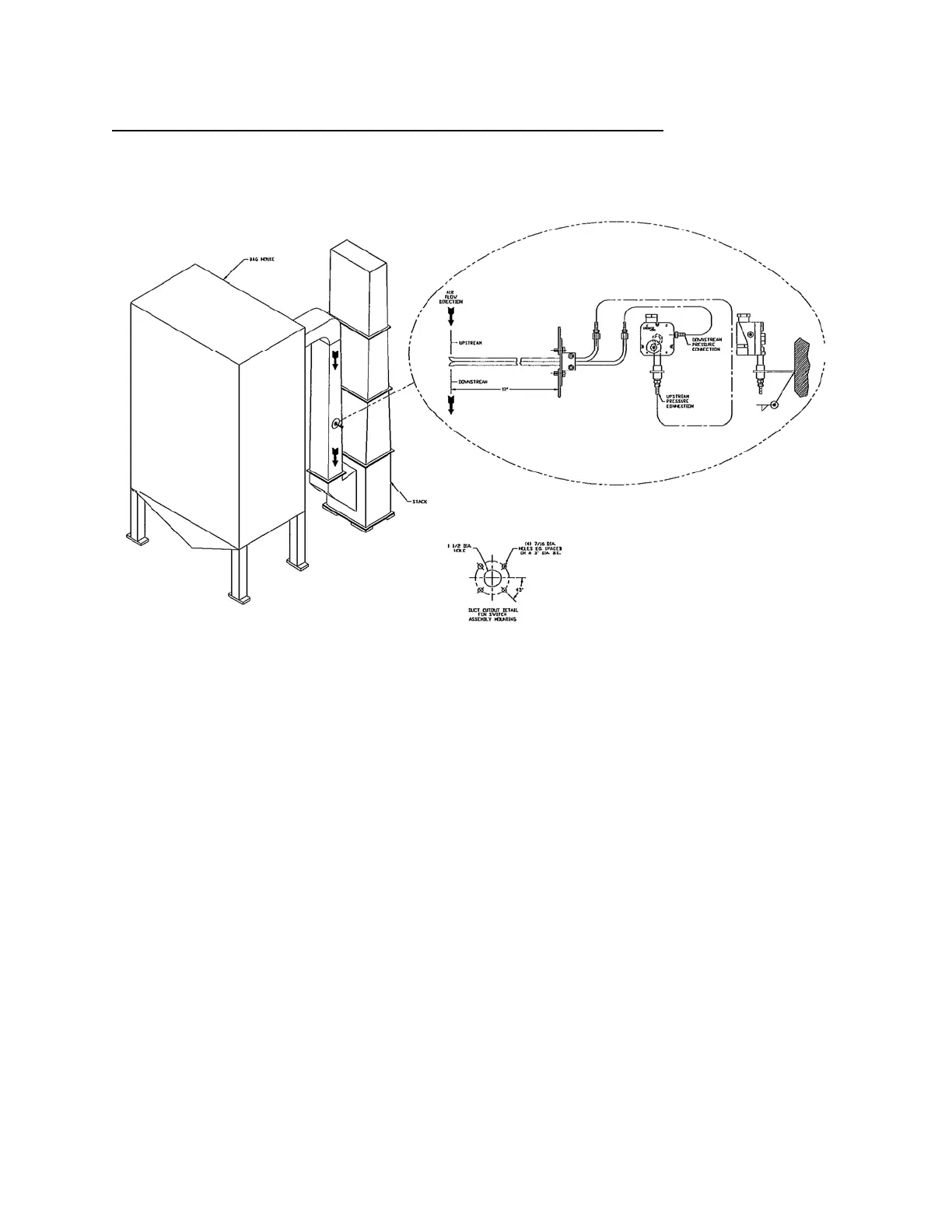

Figure 1. Installation of Exhaust Fan Flow Switch
Wire the exhaust flow switch to the appropriate terminals. The exhaust flow switch is an
interlock, which requires the exhauster to be operating prior to ignition of the burner.
Y6909
(NOT TO SCALE)
