Reach-In
P/N 0387183_V 1-9
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
PARTS LIST
Item
Quantity Description
RL/RM RLN RLNIM RMTM
RM/RMF RMN RLNIE RLTM, RMTD
1. 2 2 4 2 Donut Gasket
2. 1 1 2 2 Gasket, .906 x
1
/2 x 200 in.
3. 1 1 2 1 Gasket,
1
/2 x
1
/4 x 600 in.
4. 8 8 14 6 Cap Screw
5
/16 -18 x 1
1
/4
5. 8 8 14 6 Split Lock Washers
5
/16
6. 1 1 2 1 Joint Molding
7. 5 5 10 5 Binder Post and Screw
8. 1 1 2 1 Splice Connector

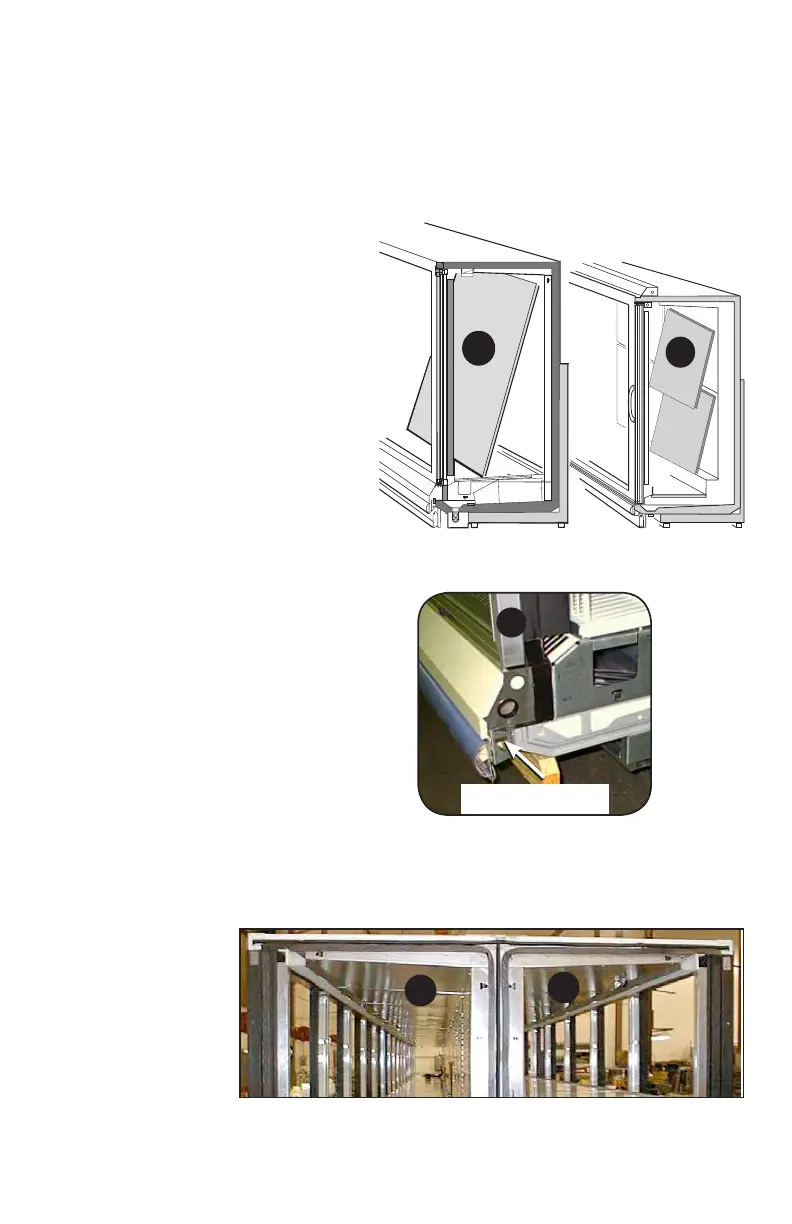

E. Remove back panels from ends to be
joined by lifting up and out near the bot-
tom. No tools are necessary. The RLTM
models have upper and lower back panels
that must be removed.
F. Remove joint molding from any door
frames that will be joined to another case.
G. RLNI Only: Remove screws and inte-
rior top panel on both sides of the island
case end to be joined
(see Figure 1).
E
G
G
RLNI Only
Alignment Pin
F
E
RL / RM / RMF
RLN / RMN
and RLNI
RLTM
RMTM
RMTD
To Next Page
