Reach-In
P/N 0387183_V 1-3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
MOVING MERCHANDISER THROUGH
NARROW STORE ENTRANCES
Some exterior merchandiser parts may be disassembled
for transit access through small doors or passage ways.
This procedure takes approximately 30 minutes to
disassemble and reassemble one case. Contact your
Hussmann representative to see if store merchandisers
have this kit option. The case height without these
components installed on top is 82.75 in. (2102 mm).
Case depth is 35.5 in. with handles, wireway pan and
external frames removed.

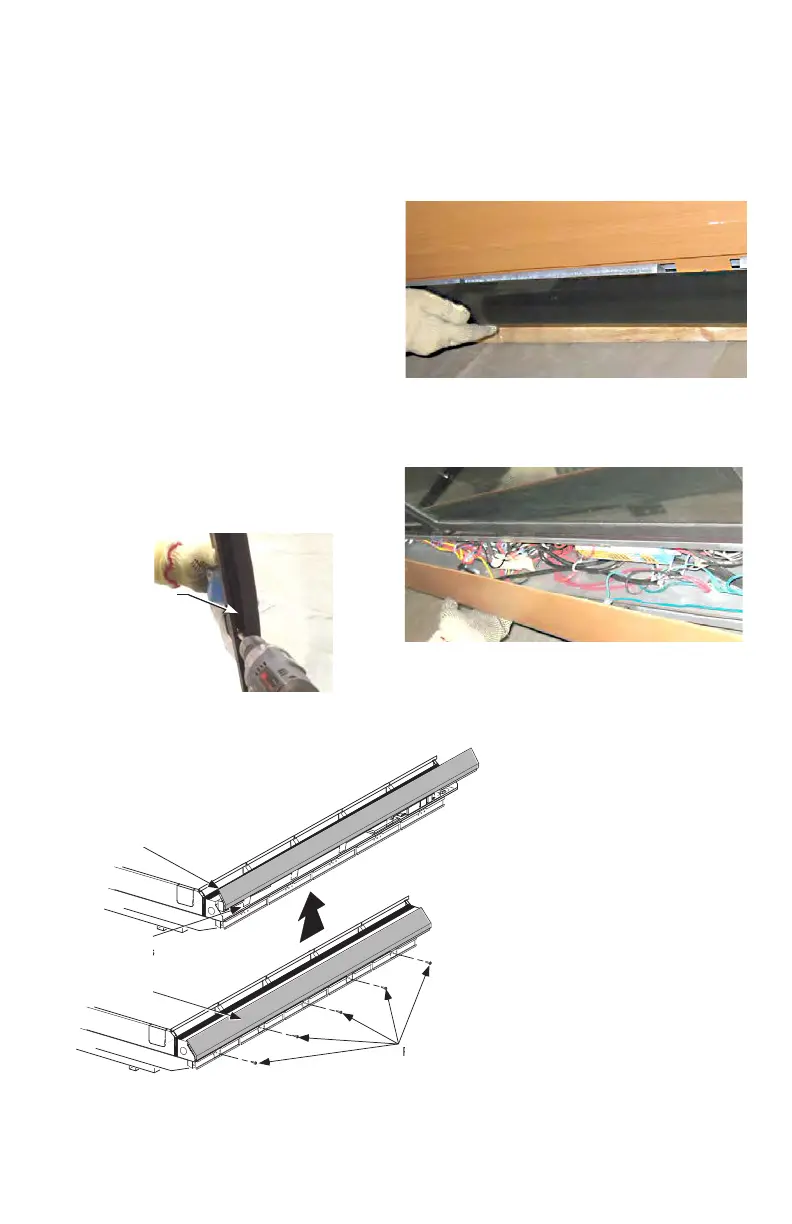

Follow the steps below to decrease the
merchandiser profile for narrow access:
1. Remove the door handles.
2. Remove the front bumper. Pull from the
bottom and set aside.
3. Remove the lower front panel to access the
wireway.
Remove
Screws from
Door Handle
Edge Fits over
Wireway
Tabs t in
Retainer Slots
Front Panel
Remove Screws
To Next Page
