Haussmann RL - Installing Splashguard Brackets

Reach-In
P/N 0387183_V 1-23
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
INSTALLING SPLASHGUARD
BRACKETS (RL/ RLN)

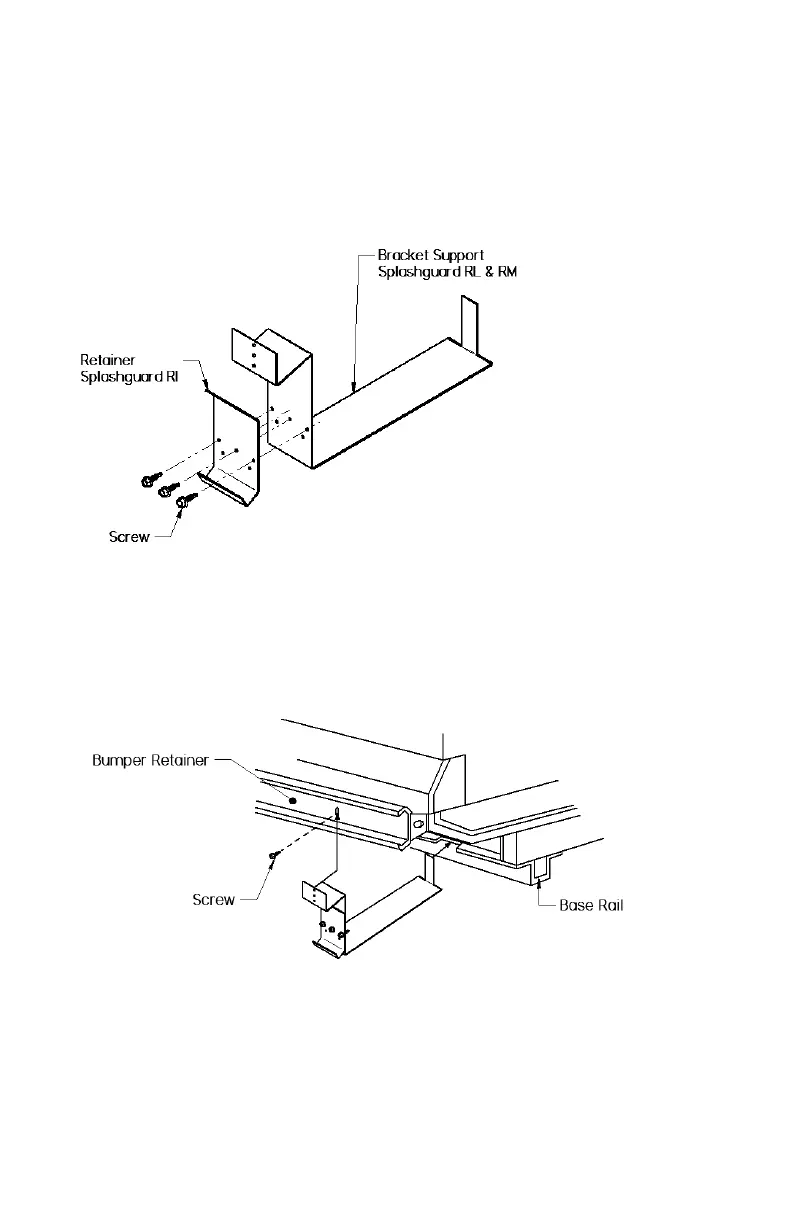

1. Attach retainer splashguard RI to bracket support
splashguard RL & RM using three screws
2. insTall splashguard supporT brackeTs
before piping case. The leveling brackets have a
maximum extension of one(1) inch (25mm) for
uneven floors.
DO NOT
place shims under
splashguard brackeTs.
