1-22 InstallatIon
P/N 0387183_V
U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
9
Align holes in frame with holes
in Joint Molding – 6.
Fasten cases together using
Binder Post and Screws – 7
as shown in Figure 8.
10
Refer to Section 1 of the
Reach-In Installation and
Service Manual to install
splashguard brackets and
bumpers. Section 3 provides
direction for installing
splashguards, including
splashguard
Splice Connector – 8.
shown in Figure 9. Note
that RLTM cases have steel
splashguards that do not use
a splice connector.
6
7
7
6

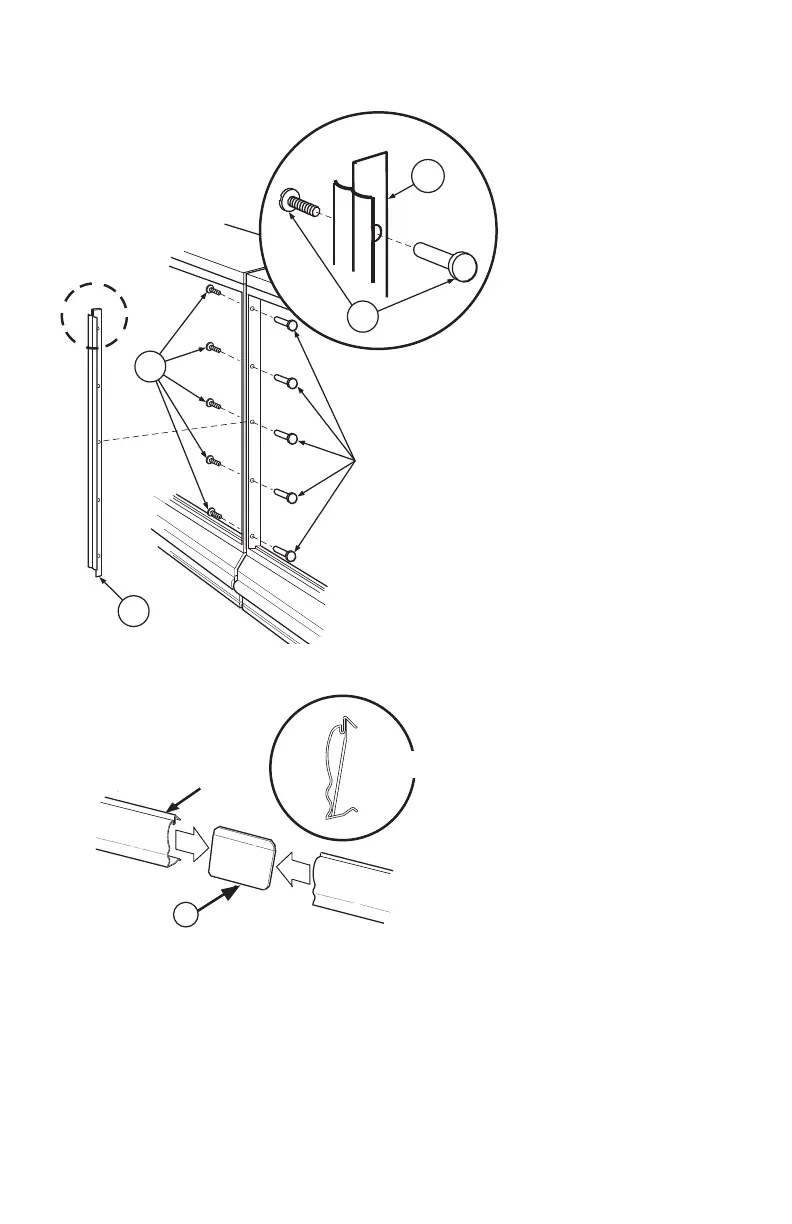

Figure 8. Installing “J” Molding
Figure 9. Installing Splashguard Splice Connector
Splice C onnector
Splashguard
SIDE VIEW
9
Splashguard
Splice Connector
Side View
