3-4 Drip piping anD SplaShguarDS
P/N 0387183_V U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM

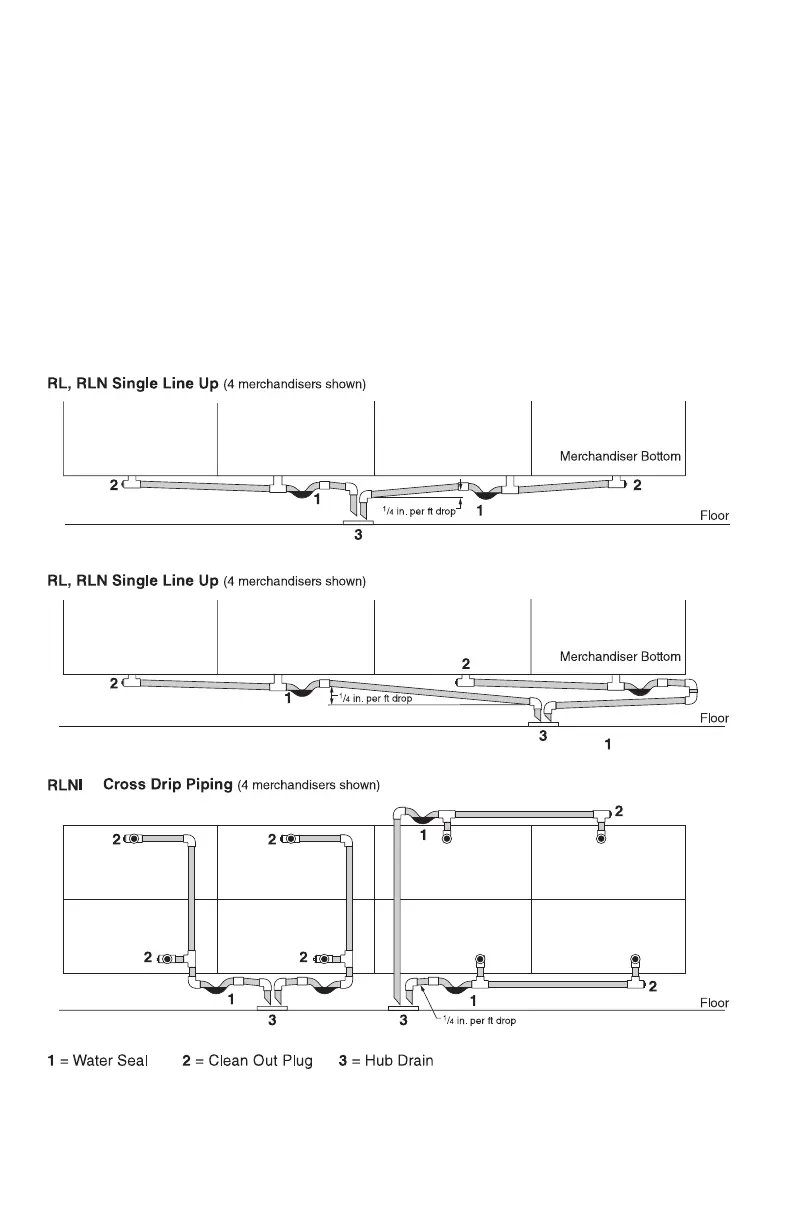

DRIP PIPING LINEUP ARRANGEMENTS
The following illustrations below show typical
arrangements for installing drip pipes for a lineup of
merchandisers. Illustrations are for reference only.
Piping may vary with location and access to hub
drain(s). Each merchandiser waste outlet must be
individually piped to a hub drain if
1
/4 in. drip pip-
ing pitch cannot be maintained.
NOTE: No more than two merchandiser are to
be piped per water seal. Do not install water seal
between two merchandiser waste outlets that are
piped together. (Double water seals in series will
cause an air lock and prevent drainage.)
