3-2 Drip piping anD SplaShguarDS
P/N 0387183_V U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
1. Tee is factory-installed. Do not overtighten
threads, or the drain fitting or tee may become
damaged.
2. Do NOT use thread sealer on ABS drain fitting.
If sealer is used the ABS drain fitting may crack
or leak! (If a tee needs to be installed it should
be tightened no more than 4 turns.) Do not
overtighten threads.

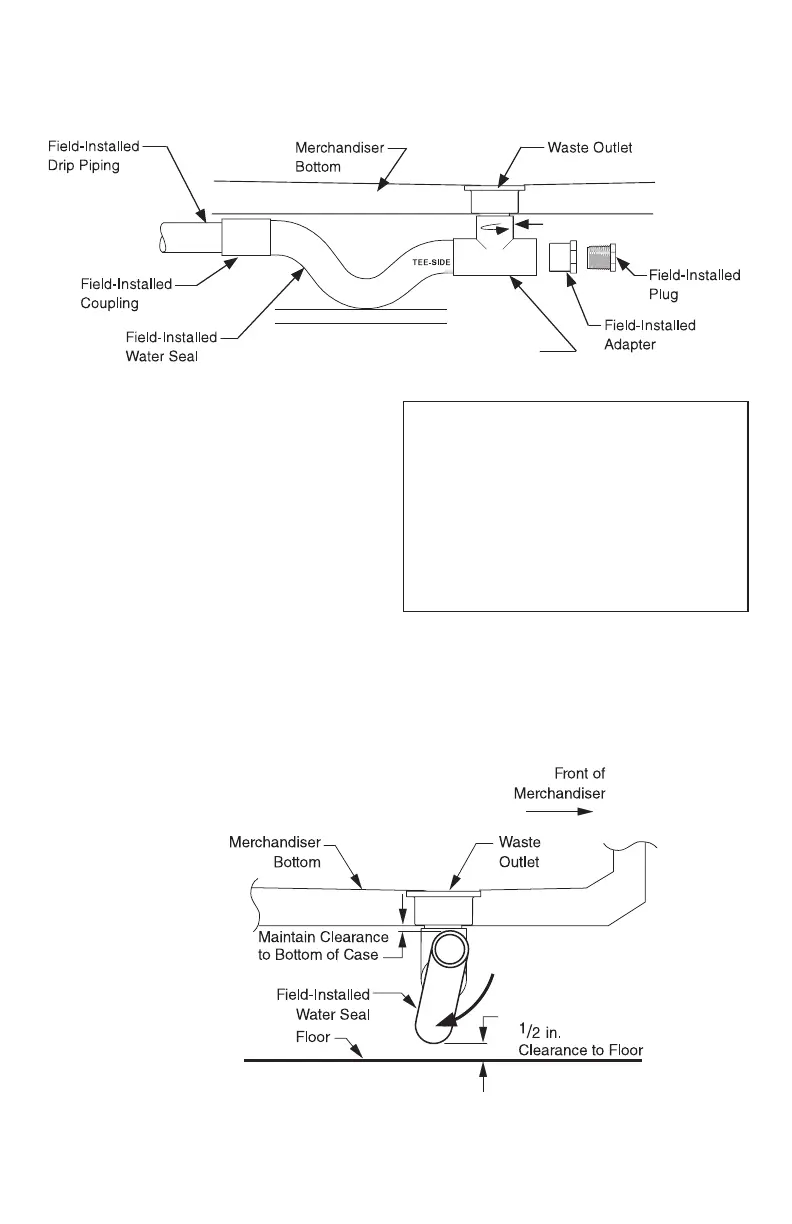

3. Dry fit the supplied water seal / trap to ensure
approximately
1
/2 in. of clearance from the
bottom of the trap to the floor as shown.
NOTE: It may be necessary to rotate water seal (trap)
inside the tee a few degrees to ensure clearance at
two locations. There must be clearance 1) between
the bottom of the water seal and the floor, and 2)
between the top of the water seal outlet and the
bottom of the merchandiser. Do not over-rotate or
gravity seal may be compromised. Always rotate trap
bottom toward merchandiser support rail.
1
/
2
in. Clearance to Floor
Approx.
Factory-Installed
Tee Fitting
Factory Installed (four turns)
Do NOT use Thread Sealer on Drain Fitting!
(Drain Fitting)
Rotate Water Seal
towards back of
Merchandiser if required
To Next Page
